(0.5-3)x1250mm Simple Hydraulic Slitting Line Slitting Speed 0-30m/min
Brief instruction:
Hydraulic slitting line is used for uncoiling, slitting and recoiling the steel plate to prepare for the next process.
b>Press and pinch device —Side guide device + slitter + Scrap winder—Tension stand—Recoiler +coil car
Technical Parameter
| NO. | Name | unit | parameters |
| 1 | Control model | Frequency conversion control | |
| 2 | Materials | Carbon steel, PPGI, GI | |
| 3 | Thickness | mm | 0.7-3.2 |
| 4 | Width | mm | 1250 |
| 5 | Coil I.D. | mm | 508 |
| 6 | Coil O.D. | mm | ≤1400 |
| 7 | Weight | T | 8 |
| 8 | Slitting blade shaft | mm | Φ200 |
| 9 | Blade specification | mm | Φ340×Φ200×15 |
| 10 | Material of blade | 6CrW2Si | |
| 11 | Line speed | m/min | ≤40 |
| 12 | Power of slitter | KW | 30 |
| 13 | Power of recoiler | KW | 45 |
| 14 | Quantity of strips (Max) | Strips | 3.2mm, 5pieces |
| 15 | Width tolerance | ≤±0.05 mm | |
| 16 | The direction of whole line | from right to left, the operate table faces the machines | |
| 17 | Power | 220V/3Ph/60Hz Customized | |
| 18 | Operation people | 1 technician and 2 general worker | |
| 19 | Color | green ( Customized) | |
| 20 | Daily production capacity | T | 40-50 |
Composed Device
| No | Name | Quantity |
| 1 | Hydraulic entry coil car | 1 set |
| 2 | Hydraulic de-coiler | 1 set |
| 3 | Hydraulic press and pinch device | 1 set |
| 4 | Side guide device | 1 set |
| 5 | Slitting machine | 1 set |
| 6 | Scrap winder | 1 set |
| 7 | Tension stand | 1 set |
| 8 | Re-coiler | 1set |
| 9 | Hydraulic exit coil car | 1set |
| 10 | Hydraulic system | 1 set |
| 11 | Electrical control system | 1 set |
The flow of the process
From right to left, they are Uncoiler + coil car—Press and pinch device —Side guide device + slitter + Scrap winder—Tension stand—Recoiler +coil car

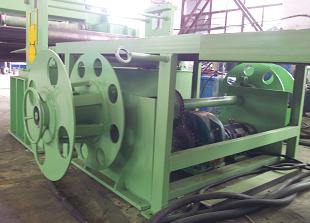

Machine Photo
|
