2000m Drilling Depth Underground Drill Rig Diamec U8 With APC Control Deep Hole Drilling

2000m Drilling Depth Underground Drill Rig Diamec U8 With APC Control Deep Hole Drilling

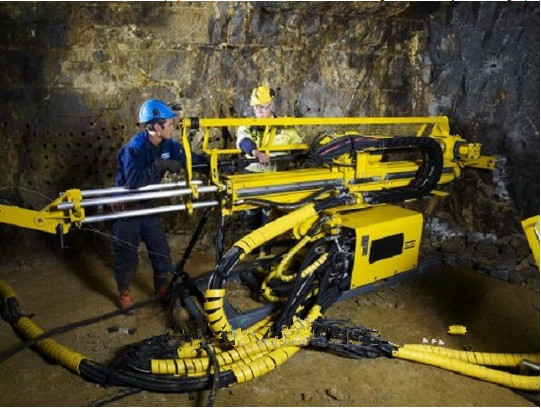

The Diamec U8 is a true deep hole exploration rig. It’s quite simply the most powerful exploration rig for its size on the market today.At home both above and below ground, the Diamec U8 can drill up to 2000 m.Frequently operating for weeks on end with the same bore hole,it’s imperative that the rig keeps running efficiently. Here’s where the Automatic Performance System (APC)* comes into its own. All the operator needs to do is set the drilling parameters and the APC* takes care of the rest. No other surface core drill rig can offer this level of automation.

The U8 is the most powerful underground core drilling rig. Its robust feed frame with a telescopic hydraulic cylinder provides reliable, straight hole drilling. The U8 is available with Automated Performance Control (APC) for efficient, user-friendly operation.

Main Features

The most powerful underground core drilling rig for efficient deep hole drilling.
Robust feed frame with a telescopic hydraulic cylinder for reliable, straight drilling.
Available with Automated Performance Control (APC) for efficient, user-friendly operation

Basic data
Max depth 2 000 m (6 600 ft) (B)
Diameter 100 mm (4")
Max speed 1 200 rpm
Max torque 2 300 Nm (1 630 lbf ft)
Feed/Pull force 133 kN (29 000 lbf)
Feed lengths 1 800 mm (70")
Modules
Flush pump Trido 140
Power unit* PU 110E or PU 160DT
Hydraulic control systems
- PHC, Pilot hydraulic control
- APC, Automatic performance control
* Electric (E) or diesel (DT)

 Jiangsu Sinocoredrill Exploration Equipment Co., Ltd  a professional Chinese manufacturer specializing in mineral exploration drilling equipments in business to since 2008.Through the close cooperation with customers and business partners, Sinocoredrill is making continuous innovation for achieving its goal of superior productivity.Owing to our products' excellent performance and very competitive pricing, we successfully minimized our every customer's drilling cost per meter. we have profuse designs with series quality grade and expressly , our price is very competitive cause we're manufactory .

We has passed the quality system certification of GB/T19001-2008/IS9001:2008. Our company has also won the honors such as Jiangsu High-quality Product and Jiangsu Contract Compliance and Creditworthy Company. As the Chinese Specialist Of Geological Exploration Tools Manufactory And Supplier, our company is founded with the hard work of our employees for many years. Our company has developed into a professional manufacturer of drilling equipment and tools, such as HDD (No-dig) drill rod , , Wireline drilling rod and tools , various of diamond impregnated and surface-set core bit , reaming shell with the the automatic production line.

Our company is mainly engaged in the production of B /N /H /P WL wireline core barrel drilling tools, drill rod , overshot assembly , diamond core bit ,reaming shell , full- hydraulic core drilling rig and mud pump for clients both at home and abroad.

With many years’ experience in the production and sale as well as strong technical ability, our company has offered the high-quality brand of SINOCOREDRILL  wholeheartedly, including the advanced CNC lathe, CNC machining center and CNC sintering diamond bit and reamer device. With a marketing network covering China, our company has given top priority to the quality and also targeted at the market.

By clinging to the concept of the quality and service being supreme, our company has set up a positive company image and won the wide acclaim from our clients. In order to offer better products and services as well as satisfy the growing requirement of the market at the lowest cost, our company has made great efforts to develop new product and innovate the technology. We have also sincerely welcomed those old and news clients to join us.
