| Categories | DTH Hammers |
|---|---|
| Brand Name: | MIROC |
| Model Number: | Down The Hole Hammer |
| Certification: | API |
| Place of Origin: | Shangdong,China |
| MOQ: | 50 Pieces |
| Price: | negotiation |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 20000pcs per month |
| Delivery Time: | 10-25days |
| Packaging Details: | Wooden Plate |
| Material: | Tungsten Carbide And High Quality Carbon Steel |
| Color: | Golden |
| Use: | Tunneling, Mining,Quarrying,Construction |
| Processing Type: | CNC milling and proprietary heat treatment process |
| Type: | Down The Hole Hammer |
| Bit Diameter: | 130MM 152MM |
| Series: | DHD,SD,COP,QL |
| Company Info. |
| KSQ Technologies (Beijing) Co. Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

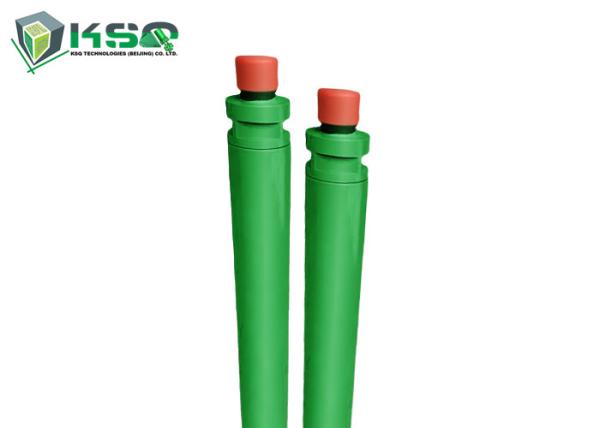

Down Hole Hammers Golden For Hard Rock Mining 4 Inch DTH Hammers Drilling
Describtion
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
Product name | DTH Hammer |
Material | Alloy Steel&Tungsten Carbide |
Use | Underground Mining,Water well,Mining,Quarry etc. |
Color | Green&Others |
Heat treatment | Anneal |
Shank series | DHD,COP,MISSION, SD, DHD, BR, QL, BR,CIR etc. |
Application | heavy construction,Ore Drilling, mining, oil and gas, quarries |
Hole | 60-305mm |
Size | 2/3/4/5/6/7/8/9/10/12/14 inches |
Advantage | High Performance and factory price |
• Small to medium size drilling diameters
• Works in low pressure range, capable of drilling shallow to
medium hole lengths
Specification
| DTH hammer type | DHD35 | DHD45 | SD4 | QL4 | |
| Length(less bit) mm | 930mm | 1030 | 1084 | 1097 | |
| Weight(less bit) kg | 25kg | 39 | 40.5 | 41 | |
| External diameter mm | Φ82mm | Φ99 | Φ99 | Φ99 | |
| Bit shank | DHD3.5 | COP44 DHD340 | SD4 | QL40 | |
| Hole range(mm) | Φ90-110 | Φ110-135 | Φ110-135 | Φ110-135 | |
| Connection thread | API 2 3/8” Reg. | API 2 3/8"Reg | API 2 3/8"Reg | API 2 3/8"Reg | |
| Working pressure | 1.0-1.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | |
| Impact rate at 1.5-1.7Mpa | 28Hz | 27Hz | 27Hz | 27Hz | |
| Recommended Rotation speed | 25-40r/min | 25-40r/min | 25-40r/min | 25-40r/min | |
| Air consumption | 1.0Mpa | 4.5m3/min | 6.0m3/min | 6.0m3/min | 6.0m3/min |
| 1.8Mpa | 9.0m3/min | 10.0m3/min | 10.0m3/min | 10.0m3/min | |
| 2.4Mpa | 15.0m3/min | 15.0m3/min | 15.0m3/min | ||
Advantages
| dth hammer: | dth hammer spare parts |
| More efficient energy transfer. | Valveless air distribution. More reliable. |
| Faster drilling speed, 15%-30% higher than others. | Simple design of the piston, long life |
| Lower air consumption and lower oil consumption. oil consumption is about 10% lower than others | Fewer internal parts, simple structure, longer life, less failure and easier to maintain because all the parts are heat treated. |
| Direct factory price | Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread. |
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
|
