| Categories | Paper Plate Making Machine |
|---|---|
| Brand Name: | Mingyuan |
| Model Number: | ZDJ-400K |
| Certification: | CE, SGS |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 150 sets each Yeah |
| Delivery Time: | 30 days |
| Packaging Details: | Export standard Wooden Case |
| Model No.: | ZDJ – 400K Paper Plate Forming Machine |
| Plate Size: | 7 CM to 30 CM |
| Raw Material: | Cardboard Paper, PE coated Paper, Uncoated Paper or Others |
| Power: | 3 KW |
| Pressure Cylinder: | 5 Tons |
| Machine Size: | 1480×1150×2050 mm |
| Company Info. |
| RUIAN MINGYUAN MACHINERY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

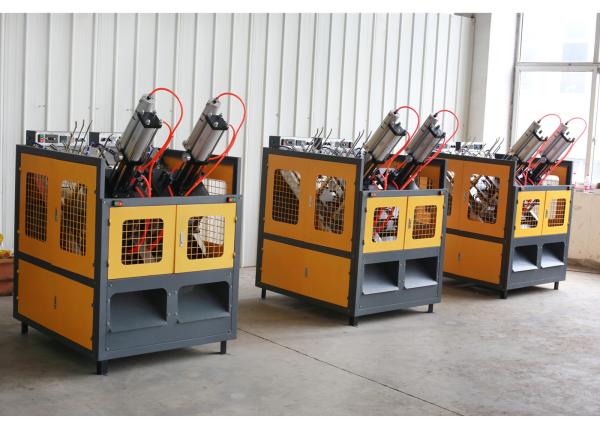

24 Hours Running Paper Plate Making Machine For Silver Round Shape Plate
Quick Details
| Paper Plate Size | 3-11 inch (mould exchangable), Bigger or specially available |
| Productivity | 70-100 Pcs/min |
| Warranty | 1 years |
| Usage | Round Plate or other shape plate |
| after-sales service | Engineers available to service machinery overseas |
Model ZDJ-400K Medium-speed Automatic Paper Plate Forming Machine was developed and researched in order to meet the market requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance. Model ZDJ-400 medium-speed paper plate machine adopts high efficient pressurizing air cylinder, so that the Max. Pressure can reach to 5 Ton. Compared with the oil pressure one, it has the advantages of high speed, environment protection and humanism design.
It is widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangle, square, circular, or irregular) shape.
Specification
| suitable size | 3-11inch(mold changeable) | raw material | 180-500gsm cardboard, compound paper, or ivory board, aluminum foil coated paper,etc |
| total power | 3 KW | speed | 70-100pcs/ min(two working positions) |
| air pressure | 1 m3/min | air flow | 0.55-0.8Mpa |
| net weight | 500kg | power | 220v/380v or other power needed, 50hz |
| gross weight | 550kg | packaging size | 1480L*1150W*2050H(mm) |
