Mmbd4148 High Speed Switching Diode , Surface Mount Zener Diode Fast Switching

Mmbd4148 High Speed Switching Diode , Surface Mount Zener Diode Fast Switching

VOLTAGE 75 Volts POWER 350 mWatts PACKAGE SOT-23

FEATURES

• Fast switching speed.

• Surface mount package Ideally Suited for Automatic insertion

• Electrically Identical to Standard JEDEC

• High Conductance

MECHANICAL DATA

Case: SOT-23, Plastic

Terminals: Solderable per MIL-STD-202, Method 208

Approx. Weight: 0.008 gram

Marking: A2, A3

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

NOTE:

1. CJ at VR=0, f=1MHZ

2.From IF=10mA to IR=1mA, VR=6Volts, RL=100Ω

RATING and CHARACTERISTIC CURVES

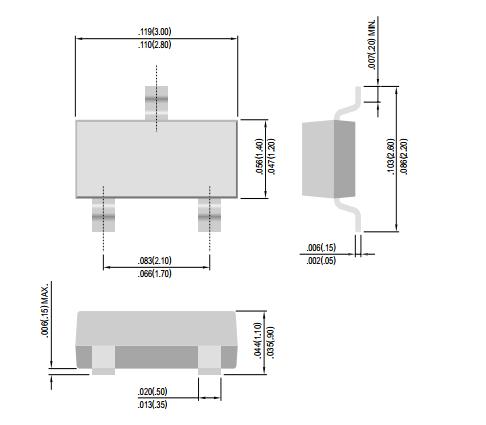

OUTLINE DRAWING

SOT-23
