Multiple Size OEM x ray baggage inspection system with Daul View Generator

Categories X Ray Baggage Scanner
Brand Name: Uniqscan
Model Number: SF5030D
Certification: CE ISO
Place of Origin: China
MOQ: 1 UNIT
Price: USD6800-8000 per piece
Payment Terms: T/T
Supply Ability: 100 pieces per month
Delivery Time: in one week
Packaging Details: Wooden box
Product name: x-ray baggage scanner
Tunnel: 500*300mm
Generator: dual view
Gross weight: 425KG
Orientation: Downward
Film Safety: For ISO 1600
Leakage radiation: <0.1µGy/h
Conveyor Speed: 0.22m/s
Warranty: 2 years
Tube Current: 0.4~1.2mA(adjustable)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Multiple Size OEM x ray baggage inspection system with Daul View Generator


Multiple Size OEM x ray baggage inspection system with Daul View Generator


Features
Dual Energy ,L-shaped array detector
apan HAMMATSU detector crystal , Detecting board from Deetee Finland.
IPC from Taiwan , Interroll Roller from German
High-resolution PHILIP 19 inch color LCD display
Four colors to distinguish organic , inorganic and dangerous material
Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming,
Image enlarge, recurrence, restoration, storage, network
Parameter
General specificationX-ray Generator
Tunnel Size : 500(W)×300(H)mmOrientation: Upward;
Conveyor Speed: 0.22m/sTube Current: 0.4~1.2MA(adjustable)
Conveyor Max Load: 150 kgAnode voltage: 100~160KV(adjustable)
Single inspection dosage:< 1.32μGyX-ray divergence angle: 80 °
Leakage radiation dosage:≤ 0.14µGy/hGenerator cooling/working periods:
Wire resolution: 40AWGsealed oil bath with forced air/100%
Spatial resolution :1.0mm Horizontal ;1.0mm VerticalX-RAY Sensor:
Steel Penetration: 38mm steel plateL-shaped array detector, 24bit
Film safety: for ISO1600
Image Performance System
X-ray sensor---L type photodiode array detector (energy), 24 bi depth;
Display---High-resolution liquid crystal display, 24-bit color;
Color management architectures---Different color, different matter;
Inverse,white/black/colorized---For compare these images to find the suspected dangerous goods
To eliminate organic,Inorganic out---In view of the most important image;
Edge enhancement---The edge of image is more clear;
High penetration---Make the image more through, for look every goods in one image ;
Zoom in/zoom out---Make the image bigger ,make the image smaller;
1 times size of image---Make image back to 1 times size of image;
Brighter/darker---Make image more bright /make image darker;
Replay---Playback all images on the screen at current,be able to do the next steps;
Application and Certifications
used for scenic spots, gymnasium, expo centre, left- baggage counter, supermarket, hotel ,court, prison..etc
Machine parts safeguard measures
High performance network function
Chinese ministry of public security testing
EU CE Certification
ISO9001 Certification
ISO14001 Environmental Management
Radiation safety certification from China Government

Our service
2 years warranty for free parts.
Free training in the factoty and on the video.
We have professional global team to solve your pronlem
We provide the HD images and video also can do in your brand(OEM)
We can fly to you local to help you finish installing and so on business.

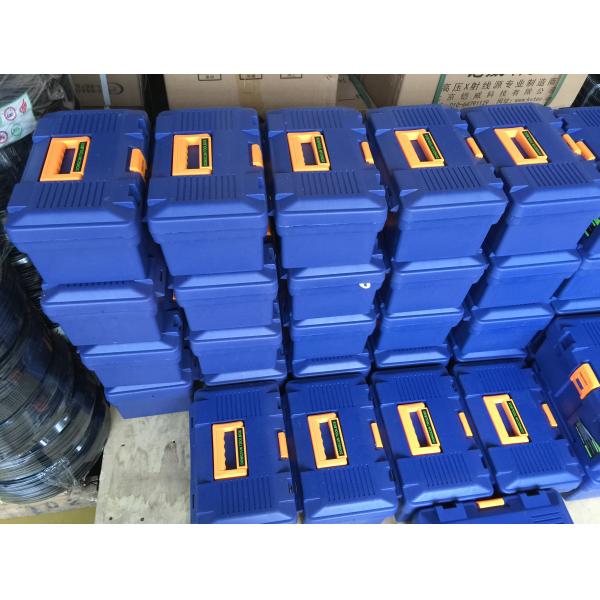

Some of our images for the parts
