| Categories | Phase Changing Materials |
|---|---|
| Brand Name: | Ziitek |
| Model Number: | TIC800K |
| Certification: | RoHs |
| Place of Origin: | China |
| MOQ: | 1000PC |
| Price: | USD 0.03PCS |
| Supply Ability: | 100000PCS/DAY |
| Delivery Time: | 2-3Works |
| Packaging Details: | 1000PCS/bag |
| Product Name: | Phase Changing Materials |
| Color: | Light amber |
| Thermal Conductivity: | 1.8 W/mK |
| Phase Change Softening Temperature: | 50℃~60℃ |
| Work Temperature: | -40 °C to 180 °C |
| Key words: | Phase Change Material |
| Specific Gravity: | 2.0g/cc |
| Company Info. |
| Dongguan Ziitek Electronic Materials & Technology Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Ziitek 1.8W High Reliability PCM Phase Change Material For CPU And GPU
The TIC™800K Series products is a high thermal conduction and dielectric performance insulator pad consisting of a ceramic filled low melting point compound coated on MT Kapton film.
At 50℃,TIC™800K Series surface begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.
Feature
| Naturally tacky at room temperature, no adhesive required |
| No heat sink preheating required |
| Low thermal resistance |
| Ease of use for high volume manufacturing |
| High thixotropic index |
| Dry to the touch for pre-apply applications |
| High thermal reliability, minimal pump out |
| Re-flow compatible |
| Cost Effective |
| Used where electrical isolation is not required |
| Low volatility – less than 1% |
| Easy to handle in the manufacturing environment |
| Flows but doesn’t run like grease |

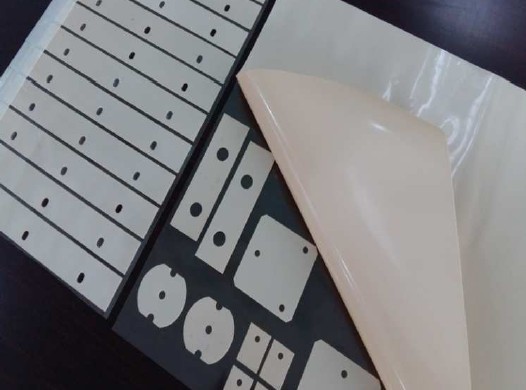

| Available in custom die-cut shapes, kiss-cut on rolls |
| RoHS Compliant |
Application
| High Frequency Microprocessors |
| Notebook |
| Computer Serves |
| Memory Modules |
| Cache Chips |
| IGBTs |
| COB Led |
| Desktop PCs |
| CPU |
| Microprocessors |
| Chipsets |
| Graphic Processing Chips |
| Servers |
| Memory Modules |
| Power semiconductors |
| Power conversion modules |
| LED Power Supply |
| LED Controller |
| LED Lights |
| LED Ceilinglamp |
| Typical Properties of TIC™800K series | ||||
| Product Name | TIC™805K | TIC™806K | TIC™808K | Test Method |
| Color | Light Amber | Visual | ||
| Composite Thickness | 0.004"/0.102mm | 0.005"/0.127mm | 0.006"/0.152mm | ASTM D374 |
| MT Kapton ® Thickness | 0.001"/0.025mm | 0.001"/0.025mm | 0.002"/0.050mm | ASTM D374 |
| Total Thickness | 0.005"/0.127mm | 0.006"/0.152mm | 0.008"/0.203mm | ASTM D374 |
| Specific Gravity | 2.0 g/cc | ASTM D297 | ||
| Heat Capacity | 1 l/g-K | ASTM C351 | ||
| Tensile Strength | >13.5 Kpsi | >13.5 Kpsi | >17.8 Kpsi | ASTM D412 |
| Continuous Use Temp | (-58 to 266℉) / (-50 to 130℃) | *** | ||
| Dielectric Breakdown Voltage | >4000 VAC | >5000 VAC | >6000 VAC | ASTM D149 |
| Dielectric Constant | 1.8 MHz | ASTM D150 | ||
| Volume Resistivity | 3.5*10^14Ohm-meter | ASTM D257 | ||
| Thermal conductivity | 1.6 W/mK | ASTM D5470 | ||
| Thermal Impedance@50psi | 0.12℃-in²/W | 0.13℃-in²/W | 0.16℃-in²/W | ASTM D5470 |
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
|
