Categories | Temporary Fence Panels |
---|---|
Brand Name: | LNF-temporary fence panels |
Model Number: | 2.1M*2.4M 2.1M*3.3M 2.1M*3.5M Temp Fence |
Certification: | ASTM/AS4687-2007 |
Place of Origin: | American ,Australia ,Canadan |
MOQ: | 500 liner meter |
Price: | 8.88$ per liner meter |
Payment Terms: | TT30% deposit balance 70% at sight of finished products |
Supply Ability: | 10000 liner meters |
Delivery Time: | 7 work days |
Packaging Details: | All metal Pallets |
Materials: | Q235 Steel Pipes and Wire |
Mesh Opening: | 50mm x 100mm ,2" x 4" |
Diameter: | 4.00mm ,8 gauge wire |
Type: | Weld Mesh and Steel |
Color: | Available any Such as Yellow ,Black ,Blue ,Red etc |
Warranty: | 5-15 years depand on treatment |
Customized: | Available |
Size: | 6ftx10ft ,6ftx8ft,6.5ft x 9ft etc |
Feet: | 60mm x 8.00mm thick x 760mm length |
Accessoires: | Top Couper |
Market: | Markets: Canada (vancouver, toronto, montreal etc. ) and USA |
Company Info. |
Top Fencing Co.Limited |
View Contact Details |
Product List |
Product Information | |
Material: | Low carbon steel. |
Surface treatment: | PVC coated, powder coated, galvanized, painted. |
Common color: | Yellow, orange, green, blue, red. |
Middle frame: | Vertical or horizontal square pipe. |
Frame pipe shape: | Square. |

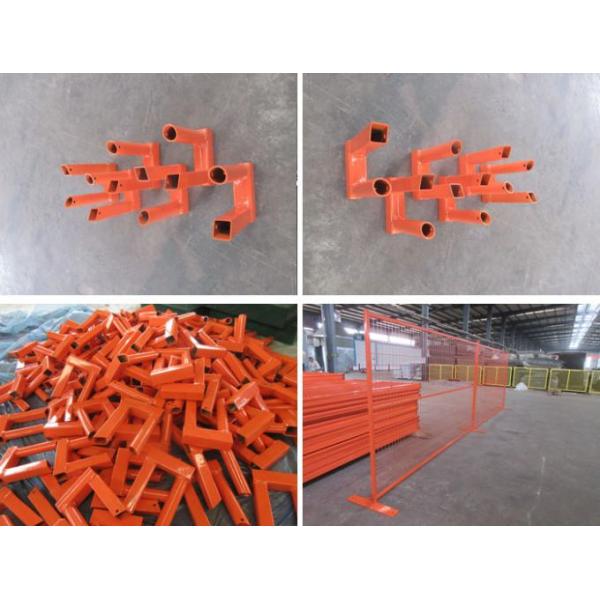

Fittings: | Top coupler: Coupler with two round tubular legs. Coupler with round and square tubular legs. Fencing feet: Common size: 860 × 80 × 6 or 7 mm (thickness). Standard fence feet. Anchor base feet. |
Specification of Canada Temporary Fence | ||||||
Item | Length | Height | Mesh Opening | Frame Pipe | Wire Diameter | Middle Frame |
DF-CTF-01 | 8’ | 3.75’ | 2" × 4" | 1" × 1", 1.5" × 1.5" | 3, 3.5, 4 mm | 20 × 20 mm, 25 × 25 mm |
DF-CTF-02 | 8.5’ | 4’ | 2" × 4" | 1" × 1", 1.5" × 1.5" | 3, 3.5, 4 mm | 20 × 20 mm, 25 × 25 mm |
DF-CTF-03 | 9’ | 6’ | 2" × 4" | 1" × 1", 1.5" × 1.5" | 3, 3.5, 4 mm | 20 × 20 mm, 25 × 25 mm |
DF-CTF-04 | 10' | 6' | 2" × 4" | 1" × 1" | 3, 3.5, 4 mm | 20 × 20 mm, 25 × 25 mm |
DF-CTF-05 | 10’ | 8’ | 2" × 4" | 1" × 1", 1.5" × 1.5" | 3, 3.5, 4 mm | 20 × 20 mm, 25 × 25 mm |
size | 6*9.5ft,6*9ft,6*10ft |
wire diameter | 3-5mm |
opening | 60*150mm,50*100mm |
rail | 20*20*1.2mm,25*25*1.5mm |
frame | 25*25*1.5mm,30*30*1.5mm |
base | 600*100*6mm |
surface | hot dipped galvanized then powder |
![]() |
