| Categories | Food Packing Machine |
|---|---|
| Brand Name: | SunChon |
| Model Number: | SUN-520W |
| Place of Origin: | FoShan,GuangDong |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Payment Terms: | T/T, D/A, L/C, D/P, Western Union, MoneyGram |
| Supply Ability: | 120 Sets/Month |
| Delivery Time: | 15-20 Day |
| Packaging Details: | 5 Wood Box with Tool Box |
| Name: | Food Packing Machinery |
| Weight of each Bag: | 20-1000g |
| Application: | Seed,Sugar,Candy,Nuts,Puffed Food |
| Scale: | 10 Heads |
| Film: | Lamination Film etc |
| Manufacturer: | YES |

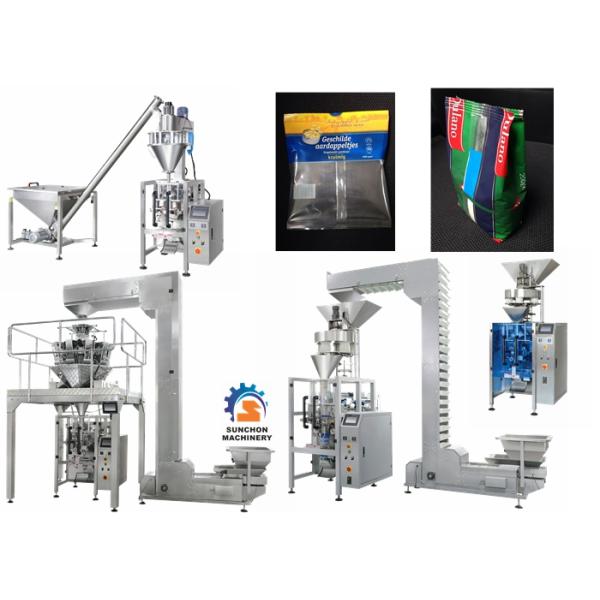

Automatic Weighing Seed /Sugar /Candy /Nuts / Puffed Food Packing
Machinery
Application
Food Packing Machinery with Multi Heads Weigher like Wafers,
Potato chips, Banana chips, nuts, whole grains, whole spices,
chips, dry fruits, dry pasta, confectioneries, etc.
Specification
Machine Structure: Stainless steel 304 or Carbon Steel with powder
coating
Driven Type: Mechanical
Voltage: 220V/380V/110V; 50Hz/60Hz
Packing material: Paper, Plastic, Foil, Filter or other, mostly is
Lamination Film.
| Model | SUN-320 | SUN-420 | SUN-520 | SUN-720 |
| Packing Speed | 5-70 Bags/Min | |||
| Volume(ML) | 800 | 1000 | 2000 | 4000 |
| Bag Width(MM) | 50-150 | 80-200 | 150-250 | 200-350 |
| Bag Length(MM) | 200 | 60-300 | 80-400 | 80-450 |
| Max Width Of Roll Film(MM) | 320 | 420 | 520 | 720 |
| Thickness | 0.04-0.09 MM | |||
| Material | Lamination Film,PE,Aluminium Film,etc | |||
| Weight(KG) | 350 | 450 | 550KG | 750 Kg |
| Air Consumption | 0.65Mpa 0.3m³/Min | 0.6Mpa 0.5 m³/Min | 0.8Mpa 0.4m³/Min | 0.8Mpa 0.4m³/Min |
| Power Supply(KW) | 2.2 | 2.2 | 2.2 | 3.0 |
| Dimension LxWxH(MM) | 1170X820X1285 | 1320X920X1392 | 1500X1140X1540 | 1800x1250x1780 |
| Temperature Precision | ±1℃. | |||
| Precision | ± 0.2-1%. | |||
Featurer
1: Automatic:Feeding, Weighting, Filling, Bag forming,Dater
Printing and Sealing all in one.
2: Easy operation: Color touch screen support multiple
languages.(English, Spanish, Arabic,Russian,etc)
3: Good Sealing:Double belt and servo drive film. Vertical Bars and
Cross Jaws with independent temperature control.
4: Efficient:Packing speed 5-70 Bags/Min,machine can store ten
different parameters when you need packing other weight only need
two steps.
|
