Digital Sound level meter 30~130db large screen display Restaurant Bar Indoor/office/home Wall hanging type noise meter

Categories	Sound Level Meter
Brand Name:	MASURTECH
Model Number:	MS525A
Certification:	CE,ROHS
Place of Origin:	Shenzhen,Guangdong
MOQ:	5 pcs
Payment Terms:	Western Union, T/T, MoneyGram, D/P, D/A, L/C
Supply Ability:	500000 pcs/month
Delivery Time:	3~7 work days
Packaging Details:	Each pc into one color retailed box
Measurement Range:	30~130dB
Accuracy:	+1.5 dB (reference sound pressure level,
Frequency response:	31.5Hz ~ 8.5kHz
frequency weighting:	A
Response time:	Fast
Microphone:	1/2 inch condenser microphone
digital Display:	3pcs 3-inch digital tube display three
Power supply:	DC 5v 1A micro USB
working environment:	0 - 40 degrees 10 - 80%RH
Storage of Temp. and humidity:	-10~60C. 10~70%RH

Contact Now

Add to Cart

Company Info.

Masur Technology Co.,Ltd,

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Digital Sound level meter 30~130db large screen display Restaurant Bar Indoor/office/home Wall hanging type noise meter

Digital Sound level meter 30~130db large screen display Restaurant Bar Indoor/office/home Wall hanging type noise meter MS525A

Intruduction:

The Sound Level Meter is versatile device for measuring sound intensity in an acoustic envieronment-lound or soft; high pitched, low-pitched, or Broad-band; inter-mittent or continuous, This meter can be used in measuring noise of various occasions and addpiances such as factory, office, home, traffic route, acoustics, air-conditior refrigerator, etc....

1. Before use, pls check the Instruction first!

The Sound Level Meter is supplied with the follwing accessories, if lack of accessories, pls contact with us in time!

2. Features and Functions:

1). Accuracty: +-1.5dB ( In Standard sound: 94dB@1KHz

2). Range of Measurement: 30~130dB

3). Frequency Response Range: 31.5Hz~8.5KHz

4).Frequency Weighting:A (Ambient Noise) Weighting

5). Response: Fast

6). Connecting computer with USB cable, you can down-load records, collect samples and print chart and date.(Only for model 525B)

Technical Parameters

Meter Description:

1). Hooks

2). USB outlet

3). Alarm Light

4). Microphone Sensor

5). Display:Three 3 inch dightal tube display to display sound Level value

6). Tripod Mounting Screw:1/4", the meter can be mounted on a tripod with this hole

7). Audio Outlet: when there is an alarm with 2KHz Signal, it can drive the loudspeaker to alarm

8). Calibration Knob. The meter has been calibrated before ex factory. Do not adjust the meter

9). Buttons

3. Technical Parameters:

Noise meter can be used as noise engineering, quality control, health prevention and environmental noise monitoring. Such as: factory, school, hospital, shopping malls, hotels do theater laboratory, volume measurement applications on various occasions in the family road trafficaudio.
The measurement accuracy of the product up to +1.5 dB. Compliance with the International Committee of IEC651 TYPE2 and the American National Standards ANSIS 1.4 TYPE2.

Product Features:
Measurement range 30 ~ 130dB (dB)
Accuracy: +1.5 dB (reference sound pressure level, 94dB @ 1kHz)
Dimensions: 210 * 130 * 30MM
Frequency response: 31.5Hz ~ 8.5kHz
frequency weighting: A
Response time: Fast
Alarm switch indicator/Condenser microphone sensor
Microphone: 1/2 inch condenser microphone
Digital Display: 3pcs 3-inch digital tube display three
Power supply: DC 5v 1A micro USB
working environment: 0 - 40 degrees (32 degrees Fahrenheit to 104 degrees Fahrenheit), 10 - 80%RH
Storage of Temp. and humidity: -10~60C. 10~70%RH

Note: This product has no switch function. When you connect USB cable, it will start. When you take out the cable, it will power off.

Package content:
1 x MS-525A sound level meter
DC 5v 1A micro USB cable

Attention:

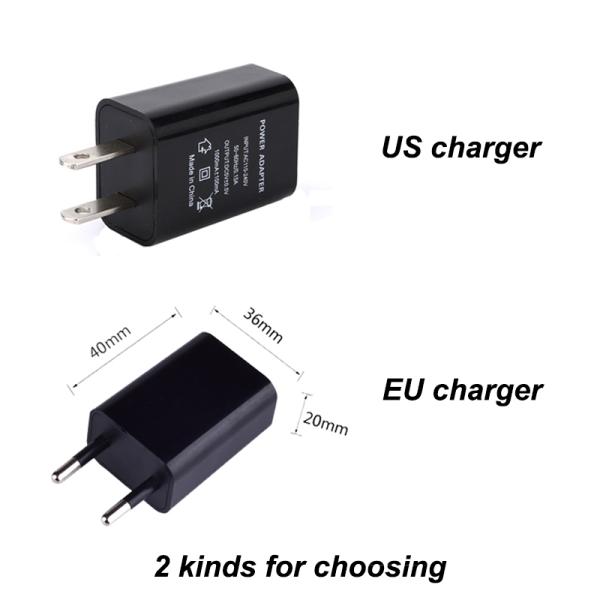

US/EU USB charger as GIFT !
Please tell us which kind you want, otherwise we will send it in fault.

4. Attached A: The volume Reference

14_

5. Note and Warning:

1). Do not use meter in high temperature and high humidity environment

2). Do not use meer near corrosive material

3). Do not use meter in the conditions that should be splashed by water

4). Do not use meter in heavy dust enveronment

5).Do not use meter in an environment with chemical gas.

6. USE instructions:

1). Measure Noise

Pls press buttom" Button 1"to start up, wait 2 seconds into measuring condition, display the noise levels in display screen.

7. Instrument Alarm

A. Alarm Switch

Turn on alarm function by defaut when start the meter. Press " Button No.4 " to turn off alarm and the red light off;

Press " Button No.4 " to turn on alarm and the red light on.

B. Setting Alarm Value

The default alarm value s 130. Users can adjust it from 50 to 130dB

1) Press button " Button No.4 " for a while into alarm setting, then display alarm value and the red lights blinks

2) Press button " Button No.3,2 " to adjust the alarm value and press button" Button No.3,2 " for a while to set up continuously!

3) Press button " Button No.4 " to save alarm value or press power switch shortly to cancel setting to normal measuring condition

3. Alarm Function (Sound + display)

when the measuring value is over the alarm value, the meter will make a sound beeping and lock the data with blinking for 2 minutes.

after 2 minutes ir or press any key, the meter stops alarming and blinking, bt also locks the measure date for 5 seconds.

After 5 seconds, the meter return to normal measurement, Notes: if the measuring value is over the alarm value again when it is back to

Normal measurement, the Sound Level Meter would alarm once again
