| Categories | Membrane Filter Cartridge |
|---|---|
| Brand Name: | Upick |
| Model Number: | U-ZD009 |
| Certification: | FDA |
| Place of Origin: | China |
| MOQ: | 50PCS |
| Price: | Negotiation |
| Payment Terms: | LC TT PAYPAL |
| Supply Ability: | 120000 PCS per Month |
| Delivery Time: | 15-20 Workdays |
| Packaging Details: | Inner box & Carton |
| Item Name: | PVDF air filter |
| Material: | PVDF ( Hydrophobic) |
| Pore Size: | 0.01-10 micron |
| Length: | 20 inch |
| Packing: | Vacuum packing |
| Others: | Air filtration element |
| Company Info. |
| Upick Filtration |
| View Contact Details |
| Product List |
0.01 μm PVDF hydropholic membrane pleated filter cartridge for air filtration
Description
TOPO series Filter Cartridge are made with high capacity hydrophobic PVDF membrane. It provides high contamination holding capacity, excellent throughput and high efficiency particle retention. The cartridges are designed for filtration of gas, vent air. Each one is strictly tested before every lot release form the production line.
The module surface area, inner core, pleat configuration, and packing density are all optimized to keep long life service and low filtration cost.
Constructional Materials
| Filtering Media | PVDF Membrane (Hydropholic) |
| Media Support | Polypropylene |
| End Caps | Polypropylene |
| Center Core | Polypropylene |
| Support Cage | PP or PP with SS lining |
| O-Ring | Silicone, EPDM, Viton, FPM, Nitrile, etc. |
Dimensions
| Internal φ | 32 mm |
| External φ | 68 mm, 69 mm |
| Length | 2.5~40 inch |
| Filtration Area | >=0.65 m2 |
Service Condions
| PH Value | 1~13 |
| Working Temp. | <=55℃ |
| Max. Temp. | 80℃, △P<=0.1Mpa |
| Max. Differential | 25℃, 0.42/0.21Mpa |
Flow Rate / 10" Element with Water at 68 °F (20 °C)
Educt
Endotoxin < 0.25EU/ML
Extractive < 0.03g/10 inch filter cartridge
Applications
|
|
|
|
|
|
Min. Bubble Point (10inch, 60% isopropyl alcohol wetted, 25℃)
| Pore Size | 0.20μm | 0.45μm | 1.00μm |
| Bubble Point | >=0.07Mpa | >=0.04Mpa | >=0.02Mpa |
End Caps
Quality Assurance & Standards
Our goal is to ensure our customers the greatest possible value for their filtration cost. Our state of the art manufacturing facility and quality management system both meet ISO 9001:2008 standards. Each operation from assembly and test to cleaning, drying, and packaging is completed in appropriately rated clean rooms. A sophisticated MRP & ERP system collects and processes real time data from manufacturing centers and inspection points. This allows variable and attribute data to be quickly and easily analyzed driving constant improvements in both quality and cost.

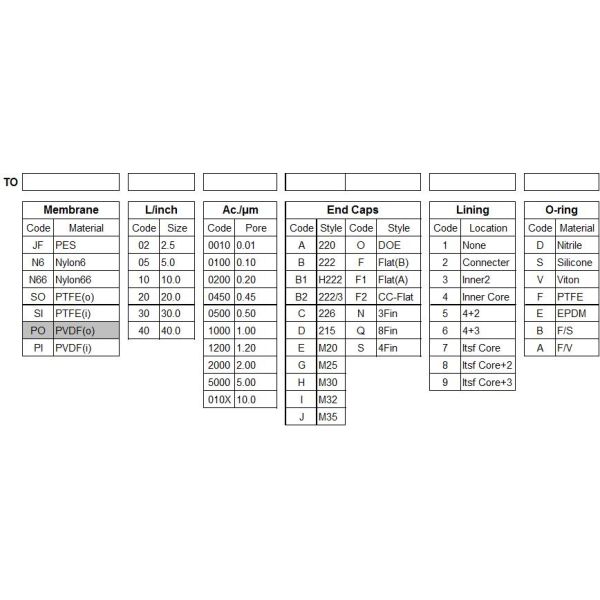

Ordering Information
Cartridge order numbers have several variables from pore size to end cap type.
For instant, Hydrophobic PVDF Membrane, 20 inch length, 0.20 micron rating, 226 w/fin end cap, without lining, Silicone O-rings.
Product Code =TOPO200200CN1S
|
