8.4" All In One Touch Panel PC VESA / Wall Mount 50000 Hours Lifetime

Categories Touch Panel PC
Brand Name: ITD/OEM
Model Number: ITD08PPCG1LJ1
Certification: CE, FCC, RoHS
Place of Origin: China
MOQ: 1PCS
Price: TBA
Payment Terms: T/T, PayPal(173515844@qq.com)
Supply Ability: 10000PCS/Month
Delivery Time: 5-15 Business Days
Packaging Details: 1-5pcs/CTN, Safe, Firm
CPU: Intel J1900/i3/i5/i7/Android
Active are: 170.4(H)×127.8(V) mm
MTBF: 50000Hours
Operating Temperature: -10~60℃(-20~70℃ optional)
Operating Humidity: 10%-90% (Non Condensing)
24/7/365 Use: Supported
Touchscreen: Resistive, PCAP
Power input: DC 12V
Resolution: 800X600
View Angels: 80/80/70/70
IP rating: IP65 on the front panel optional
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

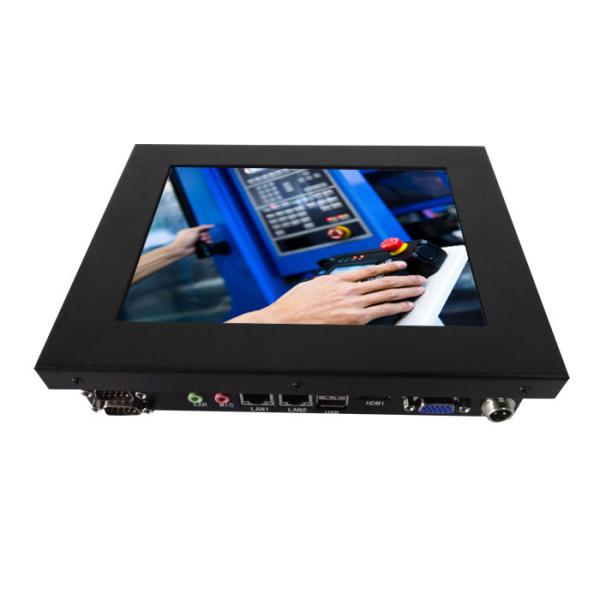

8.4" All In One Touch Panel PC VESA / Wall Mount 50000 Hours Lifetime

8.4" all in one industrial panel PC VESA mount wall mount

Specifications:


Chassis Panel PC


Model NameITD08PPCG1L**
IP RatingIP65 Front Panel Optional

PC Systems Options


ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
Chipset: N/AChipset: Intel® NM10 ExpressChipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
1×LAN1×LAN1×LAN
1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe

LCD Panel


Screen Diagonal (Inch)8.4”
Display Active Screen Size (cm)170.4(H)×127.8(V)
Aspect Ratio4:3
Physical Resolution800X600
Maximum Resolution Supported1920×1080
Colors262K
Brightness (cd/m²)250
Contrast Ratio600:1
View Angels80/80/70/70
Backlight/Backlight LifetimeLED Backlight with 50000Hours'Lifetime

Touch Panel


Touch OptionsResistive, IR, PCAP, SAW
Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

Operation


Operating Temperature Range-10~60°C (-20~70°C Optional)
Humidity Range (RH)10-90%
24/7/365 UseSupported

Power


Power IndicatorGreen LED
Power InputDC 12V
Power Consumption20.68W

Order Information


8.4”Chassis Panel PC with Resistive Touch, J1900ITD08PPCT1LJ1
8.4”Chassis Panel PC with PCAP Touch, J1900ITD08PPCT5LJ1
8.4”Chassis Panel PC with IR Touch, J1900ITD08PPCT2LJ1
8.4”Chassis Panel PC with Tempered Glass, J1900ITD08PPCG1LJ1
8.4”Chassis Panel PC with Resistive Touch, i5ITD08PPCT1LI5
8.4”Chassis Panel PC with PCAP Touch, i5ITD08PPCT5LI5
8.4”Chassis Panel PC with IR Touch, i5ITD08PPCT2LJ1
8.4”Chassis Panel PC with Tempered Glass, i5ITD08PPCG1LI5

ITD industrial touch panel PC-based HMIs offers many benefits including: cost reduction, a lightweight frame, high dimensional stability, superior corrosion resistance, improved mechanical properties, high thermal and electrical conductivity, and the ability to retain strength at high temperatures.


Product Display:



APPLICATION


Product Tags:

touch display pc



touch panel computer


Quality 8.4" All In One Touch Panel PC VESA / Wall Mount 50000 Hours Lifetime for sale
