Anti Theft black 4G Multi Touch Digital Advertising Screens Interactive Signage Display

Categories Multi Touch Digital Signage
Brand Name: TOPADKIOSK/OEM
Model Number: TPK-WT4308
Certification: CE, FCC.ROSH
Place of Origin: CHINA
MOQ: 1pc
Price: negotiate
Payment Terms: , T/T, L/C
Supply Ability: 3000pc per month
Delivery Time: 10-15days after receipt of your payment
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Operating System: Windows 7/8/10 or Android 5.1
Size: 32inch-65inch
Software: Yes
Input Voltage: AC100~240V 50 /60 HZ
Material: 2.0mm Cold-roll steel sheet
Android OS: Android 5.1
TFT LCD screen: TFT LCD screen
Color: black, white and silver or customize
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Anti Theft black 4G Multi Touch Digital Advertising Screens Interactive Signage Display

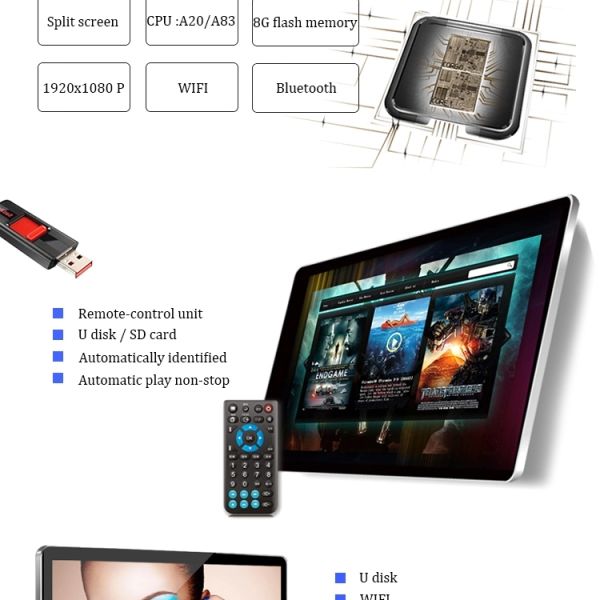

Anti Theft 4G Multi Touch Digital Advertising Screens Interactive Signage Display


1. Apply the newest 4G digital multimedia professor technologies, enjoy excellent visual effect
2. Ultra-high-fidelity sound, pleasant stereo sound.
3. Ultrathin and ultra-light hardware case, delicate and beautiful appreance.
4. Industrial grade paint technology, smooth and uniform, waterproof and dustproof, anti dust and mill!
5. Verity and complete software, stable and reliable
6. Have a lock, anti-theft functions
7. Widely used in the bus, building and lift room, supermarket, pubic places, train etc.


Panel size43″
Display area(mm)/mode930(W)×523(H) 16:9
Maximum resolution1920*1080
Display color16.7M
Pixel Pitch(mm)0.284mm
Brightness (nits)350cd/M2
Contrast1000:1
Visual angle178°/178°
Response time6ms
Life(hrs)>50,000(hrs)
OS System
Android O/SVersion 4.22 up to 5.1
CPUCortex A9, Quad-Core
Main CPU frequency1.8Ghz Hz
Memory1G DDR3
Storage4G
Input and output
LAN1
WIFIIncluded
HD1
VGA1
USB2
Speaker2*5W
Touch Panel(Optional)
SpecificationInfrared touch
Positioning
accuracy
±2mms
Transmittance>=92%
Hardness7H
Click manner2points
Response time<=4ms
Output Resolution8192*8192
Life timemore than 600 million times
Remote controllerIR Remote Controller
OSD display( screen menu display)
Menu languageChinese/English
Power
Power supplyAC100~240V 50 /60 HZ
Maximum power consumption<=30W
Standby power consumption<1W
Temperature
Working temperature0°C~50°C
Storage temperature-20°C~60°C
Working humidity85%
Storage humidity85%
Appearance
Color/appearanceWhite,black,customized
CaseMetal case SPCC
InstallationWall mount(vertical and horizontal)
Gross Weight22kg
Quality StandardISO9001,CCC


Android/Wifi system

CPU: Allwinner A83T Cortex-A7 Eight-Core CPU 2GHz/RK3288

GPU: PowerVR SGX544
O/S: Android 4.4.4
RAM: 2GB
NAND FLASH: 8GB FLASH/EMMC
Networking: RJ45
Built-in Wireless 802.11b/g/n,WAPI(Ralink 8188)

USB Wireless Dongle
Interface: USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1

Ports: USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1
OSD Language: Chinese, English, Spanish, Russian, German, French, Arabic, etc.
Support split screen: Any split screen display, multiple window video player, can achieve different window showing different content


Windows/Linux system

Processor: Intel Core i3-3217U @ 1.80GHz /I5 /I7

GPU: Intel HD4000 Graphics
Chipset: Intel Chipset HM65
Memory: DDR3 4GB ,Support up to 8GB
Ethernet: Realtek GBE RJ45,8111E
Audio: Realtek HD Audio,Support Line-in,Line-out,Mic-in,Spdif,Speaker
Display: VGA1,LVDS.
Storage: 128G SSD

IR touch screen

Touch technology: Infrared multi touch technology

Touch model: 6 touch points
Induction object: Finger, pen, any opaque objects
Size of induction: Greater than or equal to 5 mm in diameter
Resolution: 8192*8192
Response time: First point 25ms consecutive points 8ms
Cursor speed: ≥200dots/second
Glass Thickness: 4mm Normal or Anti-glare tempered glass
