8mm / 10mm Thickness Digital Truck Scales Overall High Strength With Seven State Indicator

Electronic truck scale weighing by load-bearing units, weighing and weighing sensors monitor the three basic modules; according to the different needs of the user can choose to buy other external devices to form a variety of configurations, including: computers, wide-based printers, large-screen display units, multi-purpose regulated power supply and power outlet, control the camera, card reader, computer networking, etc. (see detailed weight management software).

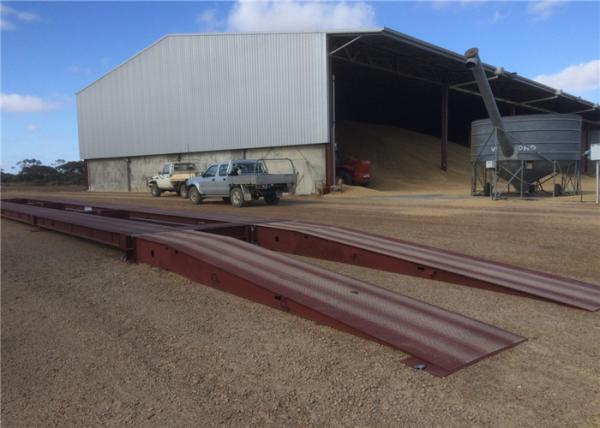

Scales using structural steel welding van, U type steel structure, the overall high strength, torsional performance, and high-precision weighing sensor bridge and superior performance, feature-rich interface shows a variety of weighing instruments, such as a common component that weighting system.

It features high accuracy, reliability, and a high degree of intelligent and adaptable, convenient installation maintenance and replacement of instrumentation does not require re-calibration. National economic construction can be widely used in various industries, for bulk goods vehicles weighing materials measurement and management.

Technical parameters:

AD conversion mode: Σ-Δ converter AD conversion manner: Σ-Δ converter mode
A / D conversion rate: 200 times / sec
A / D conversion sub-degree: 24bit
Input signal range:-30mV ~ 30mV
Input Sensitivity: ≥ 1μV / d
Sensor for Bridge Power: DC5V; I ≤ 150mA;
Connect the sensor number: 8, connected to the sensor 350Ω or 700Ω sensor 16
Sensor connections: 6-wire system, automatic long-term compensation from ≤ 50 meters
test sub-degree: 3000
the largest outside the sub-degree: 50,000
the largest within the resolution: 1,000,000
points value: 1/2/5/10/20/50/100 optional
Display: 7 LED digital tube, seven state indicator, power indicator light 3
display range: -325000 ~ 325000 (e = 10)
Clock: Real-time clock, automatic leap year, Leap from the impact of power
