Free Sample XLPE Insulated Power Cable ZR- PVC Type Outer Semi - Conductive Layer

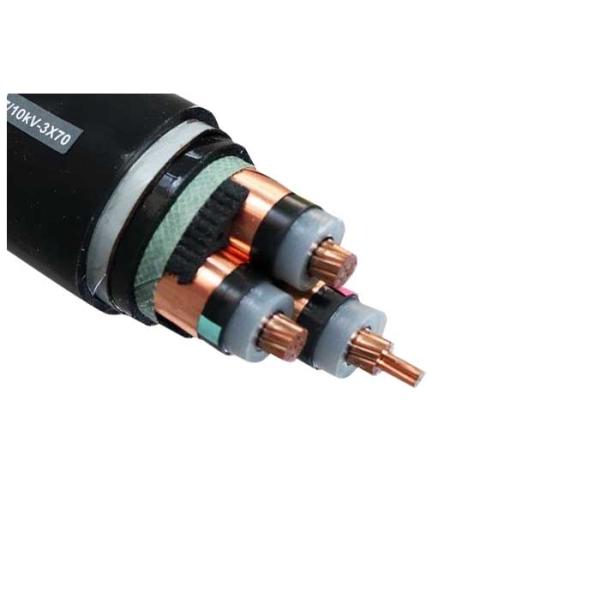

6/10kv Three Core Xlpe Insulated Steel Tape Armour Power ZR-PVC Power Cable

Construction

CU/XLPE/STA/PVC Armoured Electrical Cable

- Round bare copper core stranded according to IEC 60228
- Inner semi-conductive
- Core insulation XLPE
- Outer semi-conductive layer
- Semi-conductive tape
- Copper tape screen
- Filler
- PVC inner sheath
- Galvanized steel TAPE armour (STA)
- PVC outer sheath (FR-PVC)

Code name:

YJ: XLPE insulation
V: PVC sheath
32:Steel wire armoring
22:Steel tape armoring
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant

Application

Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Company Profile

Shanghai Shenghua Cable Group Co., LTD., the headquartered in Pudong New Area, Shanghai.  As the leading company in cable industry, Shenghua has a large scale of domestic wire and cable manufacturing enterprises including Shanghai Shenghua, Anhui Lvbao, Jiangtong Shenghua, Harbin  Shenghua, etc. It is a large enterprise focusing on the research and development and production of wire and cable.

Shenghua Cable Group was founded in 1997, after more than 28 years of struggle to become the industry leader, its high-quality enterprises, including China's top 500 manufacturing industry, China's top 500 private enterprises, Shanghai's top 100 enterprises, China's top ten cable industry and other enterprises. At the same time, the group enterprise has passed ISO9001:2015 quality management system, ISO14001:2005 environmental management system, ISO45001:2018 occupational health and safety management system, The products have national production license, 3C certification, CCS ship inspection certificate, MA coal safety certification and more than a dozen international certifications such as CE and KEMA abroad. Related products with advanced technology, reliable quality, high-quality service and reasonable prices are widely used in all walks of life in the national economy, and exported to more than 60 countries and regions around the world, especially "Xin Xin" & Shan Cable brand high-grade home improvement wire is best-selling at home and abroad, favored by real estate developers.

At present, the company has established production bases in Shanghai, Jiangsu, Anhui, Henan, Heilongjiang, Ningxia, Jiangxi ,Hebei and other places, with sophisticated production equipment and advanced testing equipment. The key equipment is imported from France, Japan, Germany, Finland ,Czech republic and the United States. The main production of 110KV power cable, control cable fireproof cable, mining cable, locomotive cable, rail cable, photovoltaic cable, Marine cable, nuclear power cable, military cable, aluminum alloy cable, high temperature resistant cable, instrumentation cable, carbon fiber wire and all kinds of flame retardant, fire resistant, low smoke halogen-free, waterproof and ant-proof cable.

The company and its enterprises have strong R & D capability, and won technical support from Shanghai Jiaotong University, Coal Research Academy, Cable Association, HIT and other scientific research units.

Technical management science, team talent, first-class brand quality. Faced with the major opportunities of economic globalization, intelligent production, marketing network and market internationalization, we will take technological innovation as the core, and accelerate the construction of enterprise blockchain and platform construction in line with the purpose of "creating first-class enterprises, making first-class products, delivering first-class services and casting first-class brands". Make the company always stand in the wire and cable production technology, product quality, innovation ability of the commanding heights and the waves, courageously forward!
