IGBT Inverter AC/DC TIG Welding Machine WSE200

Categories TIG Welding Machine
Place of Origin: China
Brand Name: Rstar
Model Number: WSE200
Certification: CE
Delivery Time: 14-21 days
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

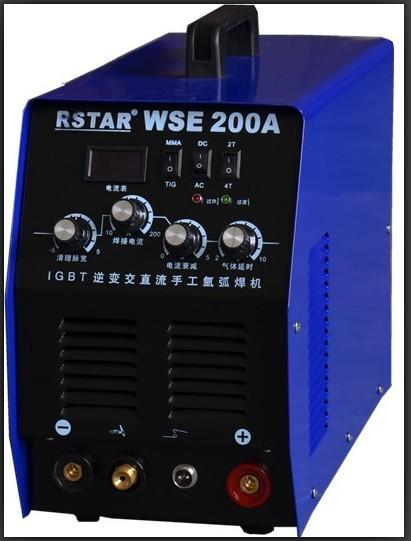

IGBT Inverter AC/DC TIG Welding Machine WSE200


Specifications

Multi-functional: AC/DC TIG and AC/DC pulsed TIG.and ARC welder
Suitable Base Materials: Aluminium,
Al-Mn alloy, Al-Mg allo

Name:Inverter IGBT AC/DC TIG Welding Machine
Model:WSE200T
Introduction:Suitable Base Materials: Aluminium,
Al-Mn alloy, Al-Mg alloy, Carbon steel, Stainless steel, Low-alloy steel


Product Features:
1. Multi-functional: AC/DC TIG and AC/DC pulsed TIG.and ARC welder
2. AC control electric circuit, AC ranges from 20A to 400A. Good arc concentration, nice form of welded seam.
3. The pulse frequency ranges from 0.5Hz to 500Hz. Adjustable pulse peak, base current, duty cycle and width of clean pulse.
4. Adjustable arc-start current, crater current, current rising time and down-slope time.
5. 2T/4T, user-friendly.
6. Full protection against phase missing, over-voltage, short-voltage, over-current, and over-heat.
7. First and second inverters are placed separately. Dust-proof, reliable and easy for maintenance.
8. Resistant to unstable power line. Applicable for input voltage ranging from ac-320v-460v
9.Suitable for welding metals such as stainless steel, carbon steel and copper (DC function); aluminium alloys (AC function).

Main Parameters Table:
Power voltage(V):
220V
Power factor:
0.73
Rated input current(A):
32.5
No-load loss(W):
40
Output current(A):
10-200
Housing Protection grade:
IP21
Rated output volt.(V):
10.4-18
Rated output current(A):
200
Insulation grade:
F
Max welding thickness(mm):
10
Duty cycle(%):
60
Efficiency(%):
80
Weight(kg):
14
Dimensions(mm):
460*205*370
Remark:
Power voltage Frequency is 50/60Hz
No-Load voltage(v)
44
Pulse frequency :0.5-450hz
