Front Service Indoor Rental LED Display High Refresh Video Display Board

Categories Indoor Rental LED Display
Panel Material: Die-casting Aluminum
Moduel Size: 240mm x 240mm
Cabinet Size: 480mm x 480mm
Brightness: 600~800 nits
Control System: Novastar
Application: concert, car show, wedding hall
Price: Negotiation
Brand Name: Bako Vision
Model Number: BIR
Certification: FCC,CE,ETL,CCC
Place of Origin: China
MOQ: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000 sqm/Month
Delivery Time: 10-15 wds
Packaging Details: Plywood Case/ Flight Case
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Front Service Indoor Rental LED Display High Refresh Video Display Board


Front Service Indoor Rental LED Display High Refresh Video Display Board



Features:


1. High precision, high strength, never deformed. The cabinet is made of die-cast aluminum with strict strength test, there is no deformation and damage.


2. Available for front and rear maintenance,it’s up to the user needs.


3. Efficient heat dissipation. Back of cabinet is exposed to release heat, the power supply and card uniformly distributed to help thermal effect.


4. No-line switching design reduces the failure rate caused by the transfer and makes the signal transmission more stable.


5. High refresh, high gray level. The high-refresh IC chip used in the cabinet configuration makes display effect more delicate and realistic.


6. Fast lock assembly, saving time and effort. The box is equipped with a quick lock, which makes the assembly operation easier and more time-saving and saves costs.


7. Signal interface dual backup. The cabinet adopts the widely used Nova system card and achieves double backup of the signal interface with the signal aeronautical plug.



Parameters:


Pixel Pitch1.875mm2.5mm3mm
Pixel ConfigurationSMD1515SMD2121SMD2121
Pixel Density284,444pixels/m²160,000pixels/m²110,889pixels/m²
Moduel Demensions(mm)240 x 240
Panel Demension(mm)480 x 480
Resolution of Module128 x 12896 x 9680x80
Grey Level16 bits(281 trillion colors)
Driving Method1/321/321/20
Cabinet MaterialDie-casting Aluminum
Contrast Ratio4000 : 1
Brightness600~800 nits
Refresh Rate1920Hz ~ 3840Hz
Average Power Consumption260 W / m²235 W / m²235 W / m²
Max Power Consumption690 W / m²703 W / m²703 W / m²
Viewing angle(H/V)160°/ 140°
Expected Lifetime100,000 hours
IP Rating (Front/Rear)IP 43
Operating Temp/Humidity-10℃~60℃ / 10%~60%
Storage Temp/Humidity-30℃~60℃ / 10%~60%
CertificationCCC, CE, ETL, FCC

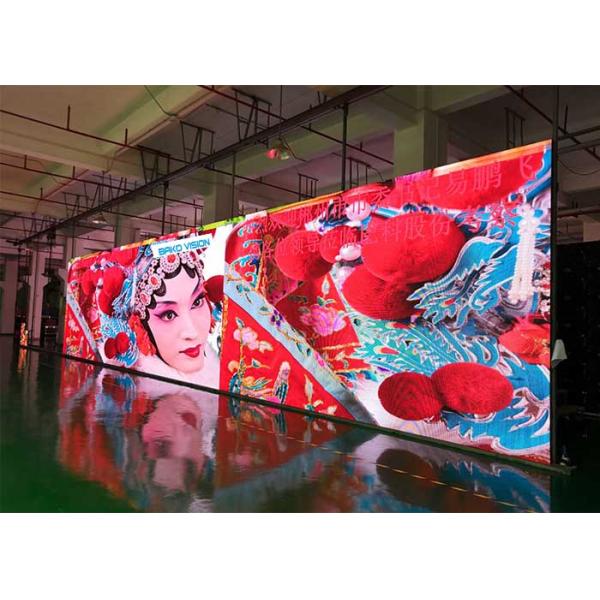

Showcase:




FAQ:


Q1. What's your payment term? How long it takes to delivery?


We accept T/T , L/C and Western Union, at least 30% deposit in advance, and the rest 70% before delivery.
Our average production time is 10~15 days, after receiving the deposit.


Q2. I would like to ask you if it's possible to have my logo on the product.


Our company perfectly support customized logo service,just confirm the logo details with us before production.


Q3. What is the warranty of your led display?


We offer 2 years warranty and more than 100000 hours screen life span.


Q4. How to install it after I received it?


We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
