DC / AC Power Managed Ethernet Switch Rail Installation Metal Case 4.46Mpps

Industrial PTN Ring Network Fiber Optic Network Switch With Guide Rail Installation

Description:

HY-648I is our company's 4-optical 8 Electric Industrial switch, which can be used as PTN remote equipment. This product can provide high-speed Ethernet service access and support Ethernet standard protocol. It simplifies the complex protocol overhead of PTN and provides the OAM capability of service layer, which makes the design and implementation of access network more concise.

Its a device that enables optical signals to be selectively switched-on and -off or switched from one channel to another. It's ability to connect with PTN and simplify the operation interface, makes the network maintenance means effective and unified, and help to achieve efficient network management. It's widely used in automation fields such as power, factory and rail transit.

Features:

1. Support 4K VLAN, VLAN conversion function, VLAN based on port, MAC, protocol, IP address and QinQ
2. Support PTN industrial ring network technology, using ERPS protocol, STP protocol
3. 8K MAC address table, support MAC address table dynamic automatic learning and static configuration
4. The number of ACL entries can be supported to 256
5. 53G exchange capacity
6. 8 level QOS queue, support SP, WRR queue scheduling policy
7. PTN ring network
8. Low power consumption without fan

Power and power supply:

• No fan, low power consumption, the total power consumption of the equipment is less than 10W
• Industrial grade supports dc or ac power (dc parameters: default -48v: -36v ~ -72v, ac parameters: default 220V: 100V ~ 260V)

Product Name	Automatic Monitoring Network Switch
Model No.	HY-648I

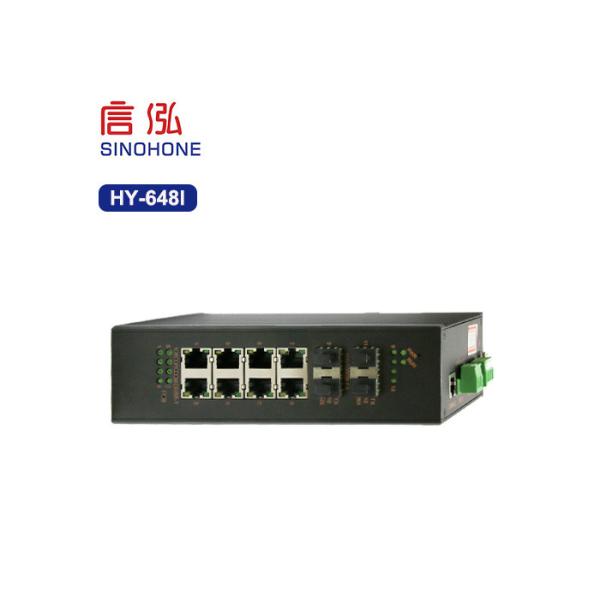

Sample Picture
Exchange capacity	53G
Mpps	17.85Mpps
Number of interference	Gigabit SFP ports (or specify other optical port forms): 4 Gigabit ports: 8
Management	Support
PTN	Support PTN ring network
Operating temperature	Industrial grade: (-40 ° C~ 80 ° C)
Storage temperature	-40°C～85°C
Management	Support local Console serial port and TELNET command line management; Support SSH; Support SNMP, WEB management; Support the unified management through the EMS management system independently developed by our company; Support remote device software upgrade and backup through FTP and TFTP; Support RMON performance statistics for ports

Other Application

• Metallurgical, petroleum and petrochemical, road traffic control automation
• Building automatic control system
• Oilfielf control automation
• Hydropower station control automation
• Computer room monitoring system
• Water conservancy monitoring
• Environmental protection monitoring
