Diferent Width Embossed Carrier Tape PS PC PET Material Environment Friendly

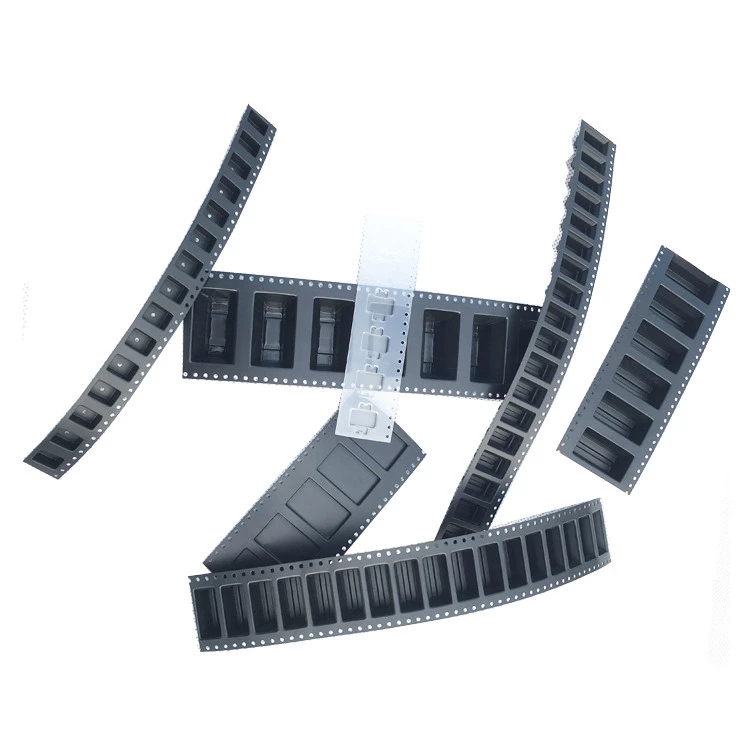

Carrier tape

8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.

Color:black/transparent

There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.

We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.

SMD Embossed Carrier Tapes and Reels

• Embossed carrier tapes for IC chips and other devices
• Take-up Reel made from high impact injection molded materials
• Reels available in normal, blue antistatic and conductive black
• Width : 8, 12, 16, 24, 44, 56, 72 and 88 mm

Carrier tape comply to EIA-481 standard

Major style

1. Hole of carrier tape on the edge

1.1 Only have one line hole on the one side 1.2 Have one line hole on each side.

2. The center hole of carrier tape

2.1 With center hole 2.2 Without center hole

3. The raw material of carrier tape

3.1 PS sheet 3.2 PET sheet

3.1.1 Transparent PS sheet 3.2.1 Transparent PET sheet

3.1.2 Black antistatic PS sheet. 3.2.2 Black antistatic PET sheet.

3.1.3 Black conductive PS sheet

3.3 PC sheet 3.4 PP sheet

3.3.1 Transparent PC sheet 3.4.1 Transparent PP sheet

3.3.2 Black antistatic PC sheet 3.4.2 Black antistatic PP sheet.

3.3.3 Black conductive PC sheet 3.4.3 Black conductive PP sheet.

4. The antistatic property of carrier tape

4.1 Conductive carrier tape 4.2 Antistatic carrier tape 4.3 Non-antistatic carrier tape

5.The width of carrier tape

5.1 Can produce the below width carrier tape8mm12mm16mm24mm32mm44mm56mm72mm

6. The function of carrier tape

It is used be to pack IC,connector,quartz crystal,mini transformer,inductance,winding,switch,mobile-phone related accessories,diode,audion,resistance,capacitor and so on.

Cover tape

PSA COVER TAPE SPECIFICATION

PSA Cover Tape is excellent tape. It can paste PS,PC,PET Carrier Tape. It is steady property and suit for SMT component package material.

Base material:PET FILM

Adhesive agent: activity adhesive agent.

Color: Transparent

POS: EIA-481

Length: 200/300/500M

Width5.4 -97.5 mm

Plastic reel

PLASTIC WHEEL SPEC FORM

WHEEL SPEC LIST

Carrier tape Matching cover tape size (mm)

Plastic Reel Dimension

 SHENZHEN DELIXIN CO.,LTD is a specialized enterprise which integrates development，Manufacture，Marketing，and professional services of the anti-static package material and access control system and the related equipment.

Our headquarter locates in the Singapore. We have some different branch companyes in Malaysia, Indonesia, Thailand and so on. It integrates design, production, fabrication, service as whole.


Since its founded，Our company has always adhered to the business principle “Quality is first，Customer is supreme”，We aim to become the first in the world and the world-known hi-tech enterprise.

With the continuous upgrading of the product，Product performance has been far higher than the trades main rival，Meanwhile.We are having originality in various fields now.

Besides Chinese market．Our product export to Southeast Asia.The Middle East，Europe and The United States market，The product gains friends general from all walks of life.

We manufacture the below products in different branch factory for over many years.
The first factory produce Carrier tape, plastic reel, cover tape. It includes PS，PET,PC carrier tape and SMT carrier tape, all kinds of reel and cover tape.
The second factory produce the PS/PVC/PET/PC/PP vacuum tray forming products.
The third factory manufacture the extrusion products, including PVC、PP、PS、PET,PC ,Acrylic plastic sheet, IC tube, conductive tiles and the PVC table mat and rubber mat so on
The fourth factory produce ESD small stationery products, ESD PEN, ESD document holder, ESD badge holder, ESD clip, ESD glove, non-woven face mask, CPE shoe cover, mob cap, and so on.
The fifth factory produce turnstile with ESD tester, Resistance meter box., wrist strap monitor and so on.
We dedicate ourselves to offer the world with our quality products and excellent services at very competitive prices. With our continuous effort, we have exported many of the best-quality products to all over the world.
