| Brand Name: | ACE |
| Model Number: | TPL-L |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1set |
| Price: | $20000 - 100000/set |
| Payment Terms: | L/C, , T/T |
| Supply Ability: | 5 set /month |
| Delivery Time: | 60 days |
| Packaging Details: | standard export packing |
| products: | toilet paper kitchen towel production line |
| lamination: | yes |
| Company Info. |
| ACE MACHINERY CO.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
Technical parameters of our Lamination High Speed Automatic start stop Kitchen Towel Making Machine
| Model | TPL Start-Stop Toilet Paper and Kitchen Towel Production Line |
| Parent roll size | 1500mm diameter x 1200-3500mm width or customized. |
| Finished roll size | Diameter adjustable, maximum 150mm Length/Width adjustable. |
| Speed | 0-300 m/min start-stop model |
| Core diameter | 76mm |
| Control | PLC Control Human-Machine Interface (Touch screen) Inverter speed control |
| Embosser | steel to rubber (1 set) controlled by level-type cylinders, not traditional screws. Embossing tension is adjustable(micro adjustment.) Embossing pattern can be any company LOGO, brand name, flower etc, provided by client, or recommended by us. Steel to steel and steel to paper are optional. |
| Lamination | With point-to-point embossing and lamiantion system. Similar to Italy design. |
Features | Pneumatic loading jumbo rolls. Automatic core feeding unit Automatic counting unit Automatic perforating unit(perforating distance is adjustable) Outer diameter of finished rolls is adjustable by cylinder Automatic pushing out finished logs by cylinder Automatic tail cutter and sealer tail (Glue) Emergency stop when paper breaks |
| Perforation unit | Perforating distance is adjustable. Controlled by cylinders, not screw |
| Machine size | 10000*5000*3000 mm depends on jumbo roll width. |
| Weight | 5000 KG |
| Photos and videos available. Please contact us. | |
Overall view of Lamination High Speed Automatic start stop Kitchen Towel Making Machine.
Finished logs made by our Lamination High Speed Automatic start stop Kitchen Towel Making Machine
will be cut by semi-auto or fully-auto cutting machines.

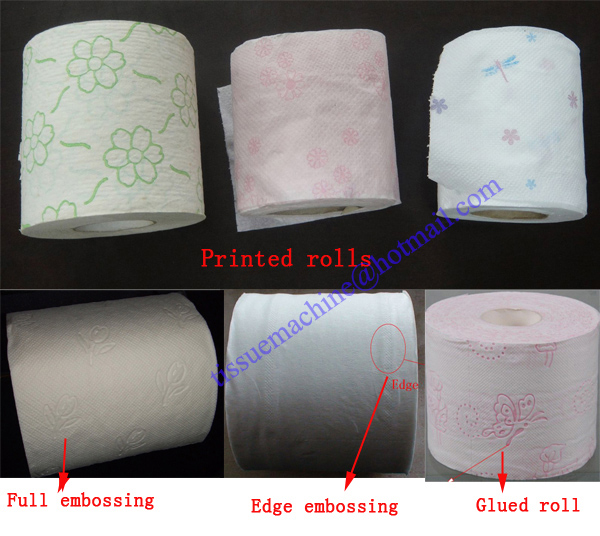

Finished toilet rolls made by our Start-Stop Toilet Paper and Kitchen Towel Production Line
Finally packed toilet rolls made by our Start-Stop Toilet Paper and Kitchen Towel Production Line
We also have another model of Lamination High Speed Automatic Continuous Kitchen Towel Making
Machine which can produce both toilet rolls and kitchen towels with lamination as shown below.
|
