| Categories | Outdoor Digital Signage |
|---|---|
| Brand Name: | Genvsion |
| Certification: | CE FCC RoHS |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS |
| Delivery Time: | 2-15 DAYS |
| Packaging Details: | Standard export package |
| Product name: | outdoor advertising display |
| Type: | TFT |
| Size: | 55inch |
| Response time: | 6.5ms (Typ.)(G to G) |
| Display color: | 16.7M |
| Keywords: | 55 inch digital signage high brightness sunlight readable lcd screen |
| Material: | TFT LCD display |
| Item: | backlight lcd screen 85inch |
| Music format: | MP3 |

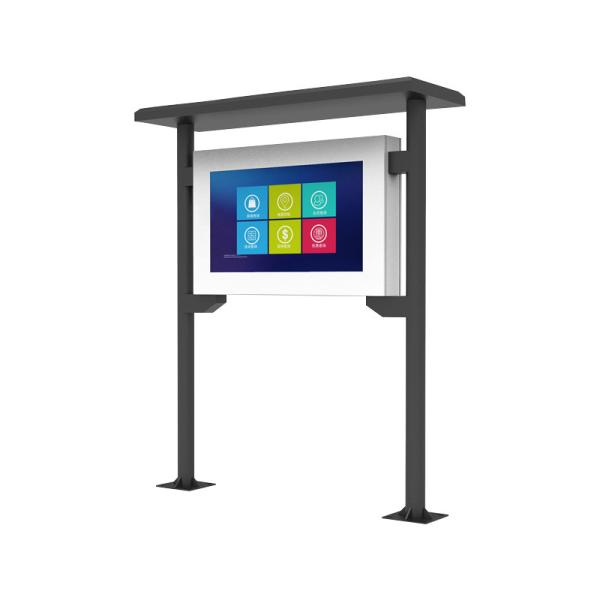

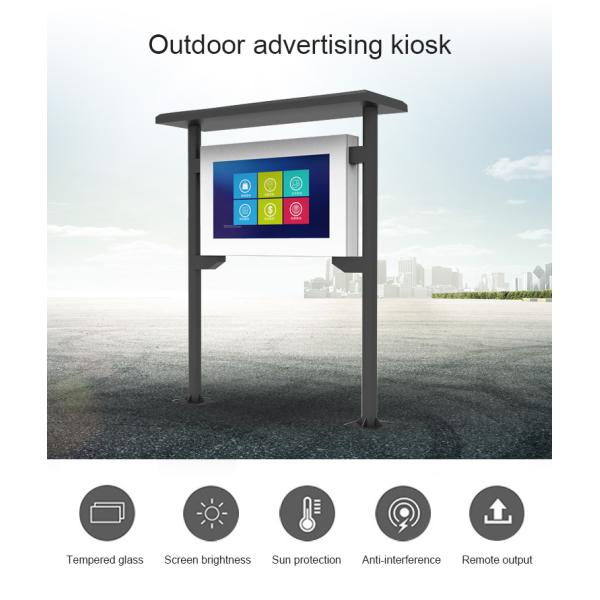

Wifi digital signage lcd outdoor display in 55 inch in floor standing keep protection android pc system displayer
Quick detail:
1.Full outdoor waterproof,dustproof,antitheft,explosion proof.
2.Anti corrosion outdoor for more than 8 years.
3.Fully modular design for easy installation and maintenance.
4.AR anti-glare glass,high transmittance and low reflection ,UV production.
5.Android or PC system can be choosen.
Specification:
surface board Senate number | Panel type | 55" LCD panel |
| Display size | 1428.5*803.5 | |
| Display scale | 16:9 | |
| Backlight type | LED | |
| Resolution | 1920*1080 | |
| Brightness | 2000cd/m2 | |
| Contrast | 3000:1 | |
| Viewing angle | 178°(H) / 178°(V) | |
| Service life | 60000 hours | |
Front protective glass | 6mm AR laminated glass | 99.99% sun UV |
| More than 50% of solar radiation | ||
| Light transmittance is over 93% | ||
| Reflectance is less than 3% | ||
| The total heat insulation rate of sunlight is over 50% | ||
| Intelligent temperature control system (using imported centrifuge for heat dissipation + industrial heater) | ||
| cooling system | Fully intelligent independent research and development of cooling system | Voltage 24V |
| Operating voltage 20.4-27.6V | ||
| Starting voltage 12V | ||
| Average speed 2400 rpm minimum speed 2160 rpm | ||
| Average current 0.26A maximum current 0.312 | ||
| Access to power average 3.12 max 3.74 | ||
| Average airflow 74 minimum airflow 66.6 | ||
| Average static pressure 2.0 Minimum static pressure 1.8 | ||
| Noise 33db | ||
| It can automatically adjust the fan speed according to the working temperature, with heating function to meet the outdoor work of -40-55 degrees. | ||
| Electrical parts | Backlight power supply | According to the peak power and reserve 20% redundancy (Taiwan Mingwei and other first-tier manufacturers) |
| Automatic light perception | Automatic Photosensitive Probe - Automatically recognizes the surrounding environment to automatically adjust the screen brightness | |
| Lightning protection device | Zhengtai lightning protection device | |
| AC contactor | Chint AC contactor | |
| Microcomputer time switch | Time switch can be set in different time periods. More than 20 groups can be set. | |
| power input | AC 108-115V AC 208-240V | |
| Total power | 300W | |
| Nanocapacitor touch film | Types | Nano touch |
| Touch mode | finger | |
| Touch effective recognition | >=5mm | |
| Touch accuracy | ±5mm | |
| Touch points | 10 Points | |
| First response time | 10 milliseconds | |
| Number of touches | Any | |
work Make ring territory | Fan power supply | 24V |
| Screen display and backlight power supply | 24V+12V hybrid power supply 200-400W | |
| Operating temperature | -35-55° | |
Product related | storage temperature | -20°C to 60°C |
| Working humidity | 5% to 100% | |
| Storage humidity | 5% to 100% | |
| Installation method | Floor-mounted installation | |
| External structural member | Shape packaging | Use pearl cotton shock absorber + wooden frame packaging |
| Exterior color | black | |
| shell material | Hot-dip galvanized steel sheet T=1.5+ outdoor double-sided spray outdoor powder | |
| Gross weight | 180KG |
|
