| Categories | Preform Injection Molding Machine |
|---|---|
| Brand Name: | FillPack |
| Model Number: | FP-3850 |
| Certification: | CE. ISO9001 |
| Place of Origin: | China,JiangSu,Zhangjiagang |
| MOQ: | 1 |
| Price: | USD $54050/set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1 set / month |
| Delivery Time: | 35-40 days after deposit receipt |
| Packaging Details: | Wooden Case Package |
| Type: | Preform Injection |
| Machine Type: | Hydraulic |
| Ejector tonnage: | 80KN |
| Pump motor power: | 30KW |
| Injection Rate: | 320g/s |
| Machine weight: | 11.5T |
| Condition: | New |
| Warranty: | 1 Year |
| Company Info. |
| Zhangjiagang City FILL-PACK Machinery Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Pressing neck Gallon preform making machine / equipment / device / system / plant in 1072 Shot weight
Injection Unite―precision injection,stability operation:
Double cylinder balance injection system for Gallon preform making machine
Multi-step injection pressure of injection/speed ﹠positioning control
Multi-step pressure material storage/speed﹠positioning control
High torque oil motor drive preplastication device
Screw flow-extend protection device for Gallon preform making machine
The temperature of barrel is controlled by computer PLC
Cooling temperature control system for barrel for Gallon preform making machine
Parameter:
MODEL | 3850A | ||
| INJECTION UNIT | A | B | |
| Screw diameter | mm | 63 | 65 |
| Shot size(theoretical) | Cm³ | 1120 | 1192 |
| Shot weight | g | 1008 | 1072 |
| Injection pressure | Mpa | 175 | 165 |
| Injection rate | g/s | 320 | 340 |
| Screw L/D ratio | L/D | 22.7 | 22 |
| Screw speed | r.p.m | 0-160 | |
| Nozzle Diameter | Srmm | 20 | |
| Recommended different preform moulds specifications based on standard gram | |||
| Moulds manterial | Cavity(Pcs) | Gram weight(g) | Capacity(pcs/hour) |
Option1:P20 outside, Main accessories S136 Option2: SUS 316 | 1 | 800 | 45 |
| 750 | |||
| 730 | |||
| 700 | |||
| 680 | 50 | ||
| 650 | |||
| 620 | |||
| 600 | |||
| 580 | 55 | ||
| 560 | |||
| 530 | |||
2 | 480 | 120 | |
| 430 | |||
| 400 | |||
| 350 | |||
| 320 | |||
Spare parts list for host inject machine part:
| Item | Free spare parts | Price for additional spare parts/USD |
1, Heating band for barrel | 1pcs | $35 |
| 2, Heating band for nozzle | 1pcs | $26 |
| 3, Sealing rings | 1sets | $25 |
| 4, Solid-state relay | 1pcs | $15 |
| 5, Proximity switch | 2pcs | $12 |
| 6, thermocouple | 1pcs | $12 |
| 7, socket head wrench | 1sets | $16 |
| 8, Mold clip | 8pcs | $180 |
| 9, Level pad | 1pcs | $130 |
| 10, Socket & plug | 2pcs | $17 |
The matching for recommended auxiliaries devices:
| Hopper Dryer | |
| Capacity | 300KG |
| Power for electrical heating | 15KW |
| Fan power | 320W |
| Fan flange | 190mm |
| Packing size | 1200*880*1770mm |
| Base installation size | 230*230*φ110mm |
| weight | 120KG |

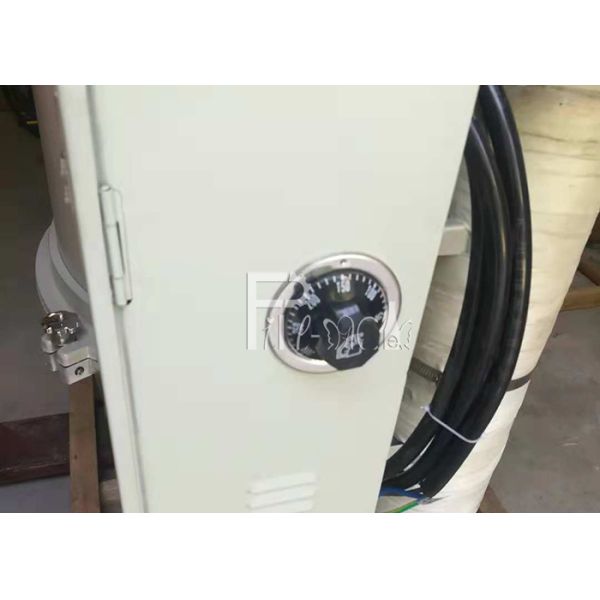

Ground hopper control box details:
| Auto loader | |
| Capacity | 480KG/H |
| Lifting | 5m |
| Static wind pressure | 2400mm/H20 |
| Materials storage tank volume | 7.5L |
| Inner diameter of feeding tube | 38mm |
| Host machine size | 500*400*720mm |
| Materials storage tank size | 450*320*450mm |
| Host machine weight | 66KG |
| Materials storage tank weight | 7KG |
Loader electrical details:
|
