550mm Lane Width SS304 Vertical Tripod Turnstile Gate with Bidirectional Rotation for Access Control

550mm Lane Width SS304 Vertical Tripod Turnstile Gate with Bidirectional Rotation for Access Control

550mm Lane Width SS304 Vertical Tripod Turnstile Gate with Bidirectional Rotation for Access Control
550mm Lane Width SS304 Vertical Tripod Turnstile Gate with Bidirectional Rotation for Access Control
Categories Tripod Turnstile Gate
Brand Name: SINOMATIC
Model Number: SN-TT01
Certification: CE/ ISO
Place of Origin: Shenzhen, China.
MOQ: Sample order accepted
Price: negotiable
Payment Terms: ,L/C,D/A,D/P,T/T,Western Union
Supply Ability: 3,000pcs per month
Delivery Time: 5-10 working days after payment received
Packaging Details: Carton/Plywood box/Pallet
Size: 480*280*980mm
Lane width: 550mm
Working humidity: 0~95%RH
Material of housing: SS304
Application: Indoor/outdoor with tent
Thickness of housing: 1.2mm or 1.5mm
Control voltage: DC24V
Input voltage: 220V/110V ±10％
Contact Now
Company Info.
SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

550mm Lane Width SS304 Vertical Tripod Turnstile Gate with Bidirectional Rotation for Access Control

550mm Lane SS304 Access Control Vertical Tripod Turnstiles
Automatic SS304 Outdoor Remote Control Tripod Turnstile Gate
This 304 stainless steel waist-height tripod turnstile gate features a mechanical drive system with ZKteco Access Control System integration, eliminating the need for expensive electric motors.
Product Overview
The 304 stainless steel tripod turnstile gate is a purely mechanical access control solution. Its unique mechanical drive design operates without expensive electric motors. The turnstile direction can be configured as single or bidirectional based on access control requirements.
Applications
This turnstile gate is suitable for various locations including airports, bus stations, metro stations, supermarkets, stations, factories, colleges, and commercial buildings, providing an economical access control solution.
Technical Specifications
ITEMSPECIFICATIONS
Size480*280*980mm
Lane width550mm
Passing speed35person/min
Power supply110V/220V ±10％
Weight40kg
InputDry contact
Casing MaterialSS 304
Reliability of the mechanism3million, no fault
Solenoid valveDC24V ±5％
Arm length510mm
Direction of rotationBidirectional
Method of arm droppingdrop automatically when the electricity is cut off
Working temperature-20°C~60°C
Key Features
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic arm positioning: rotates to next idle position if moved more than half, returns to current position if moved less than half
  • Built-in adjustable tensioner controls rotation force for minimal over-rotation
  • Light-touch operation suitable for elderly and children
  • Configurable bidirectional or unidirectional operation
  • Key-locked housing prevents tampering
  • Innovative mounting surface for simple installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint systems
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Automatic regulated hydraulic buffer device ensures quiet, impact-free operation

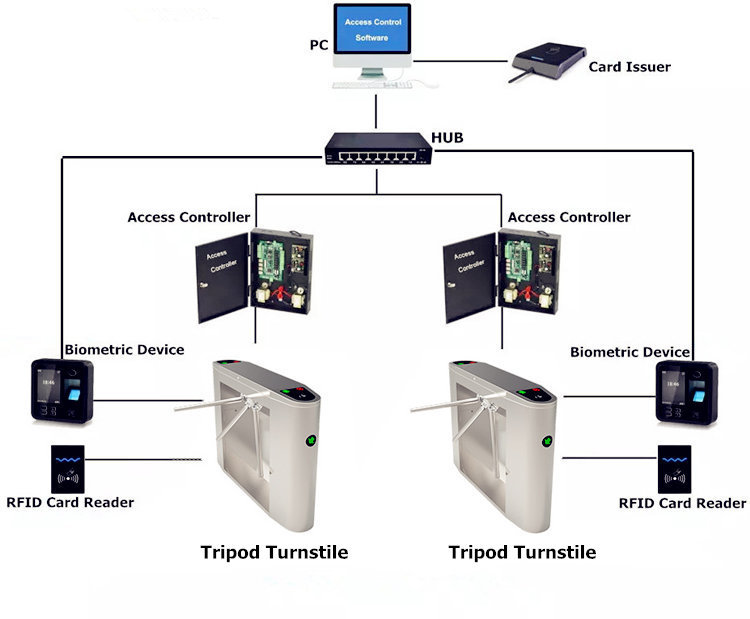

Access Control System Integration
ZKteco Access Control System integrated with SS304 tripod turnstile gate
Why Choose Our Turnstile Gates
  • More than 20 years of OEM/ODM experience in access control turnstiles, barriers, and road blockers
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for testing before bulk purchases
  • Online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
