| Categories | Pipe Bending Machine |
|---|---|
| Brand Name: | Hei Yan |
| Model Number: | HYG |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5 sets per month |
| Delivery Time: | 30 days |
| Packaging Details: | by container |
| Material: | Carbon steel |
| Process size: | 30-2000mm |
| Process thickness: | 3-100mm |
| Radius: | 1.5-20D |
| Angle: | 0-180Degree |
| Operate way: | Automatic control |
| Company Info. |
| SHEAN (CANGZHOU) CORP LTD |
| View Contact Details |
| Product List |

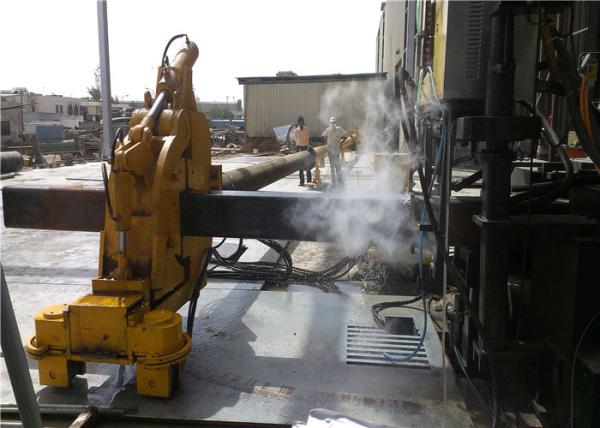

Fully Automatic Tube Bending Machine With Igbt Heating System
1. Production Range :OD60---2000mm(2---80 Inches)
2. Radius:1.5D≤R
3. Thickness:2mm--120mm
4. Angle:0--180 degree
5. Material:Carbon steel ,Alloy steel ,Stainless steel ect.
We supply high quality pipe bending machine, induction heating pipe
bending machine for Malaysia market.
Mechanical Design:
Solidworks And FEA Software design .
Control System:
SIEMENS PLC HMI SCADA.
Hydraulic System:
Solidworks
Induction Heating System
IGBT or SCR.
7×24 Hours After Service
| Max size | Model | Heating power | Cylinder capacity | Thickness |
| 6” | HYG-159 | 200KW | IDΦ140 ODΦ168 | 5-20 |
| 8” | HYG-219 | 200KW | IDΦ140 ODΦ168 | 5-20 |
| 12” | HYG-325 | 250KW | IDΦ180 ODΦ219 | 5-20 |
| 16” | HYG-426 | 350KW | IDΦ180 ODΦ219 | 5-20 |
| 20” | HYG-530 | 400KW | IDΦ180 ODΦ219 | 5-20 |
| 24” | HYG-630 | 500KW | IDΦ200 ODΦ245 | 5-20 |
| 28” | HYG-720 | 600KW | IDΦ200 ODΦ245 | 5-20 |
| 32” | HYG-813 | 800KW | IDΦ220 ODΦ273 | 5-20 |
| 36” | HYG-914 | 800KW | IDΦ250 ODΦ299 | 5-20 |
| 48” | HYG-1220 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 56” | HYG-1420 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 60” | HYG-1520 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 64” | HYG-1620 | 1000KW | IDΦ320 ODΦ377 | 5-20 |
Usage of Fully Automatic Tube Bending Machine With Igbt Heating System
Chemical
Nuclear
Compressor and pump stations - fluids and gases
Construction
General & Process Pipework
Offshore Oil & Gas Production - subsea/topside
Power Generation
Petrochemical
Shipbuilding
We are reliable Fully Automatic Tube Bending Machine With Igbt Heating System, hot pipe bending machine, hot bending pipe machine supplier in
China.
The pipe bending machine is suitable for oil, natural gas,
chemical, electric power, construction and other industries.
The bending machine principle adopt induction heating and hydraulic
cylinder pushing.
The material of the pipe: carbon steel, alloy steel, stainless
steel, etc.
It is used for hot bending of various round steel pipe or square
steel pipes, angle iron, channel steel and I-beam.
Steel pipe diameter range.
Steel pipe wall thickness range.
The bending radius is generally 2.5D--6D. Any large radius can be
bend according to customer needs. Also can produce steel pipes with
multiple curvature radius.
The bending angle is generally 0-90° or 0-180°
Equipment structure
|
