Automatic Pipe Elbow Bending Machine , Cold Push Elbow Machine Easy To Use

Categories Elbow Cold Forming Machine
Brand Name: heiyan
Model Number: HYLW
Certification: CE
Place of Origin: China
MOQ: 1set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 set per month
Delivery Time: 15-25 days
Packaging Details: wooden packing
Machine Type: cold push elbow machine
After-sales Service Provided: Field maintenance and repair service
Wall thickness: 3~30mm
Mould clamping force (KN): 1000-23000
Main thrust (KN): 630-12000
Work pressure (MPa): 25
Motor power (KW): 11-110
Radius: 1D,1.5D
Degree: 30°,45°,90°
Bending material: carbon steel,alloy steel,satinless steel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

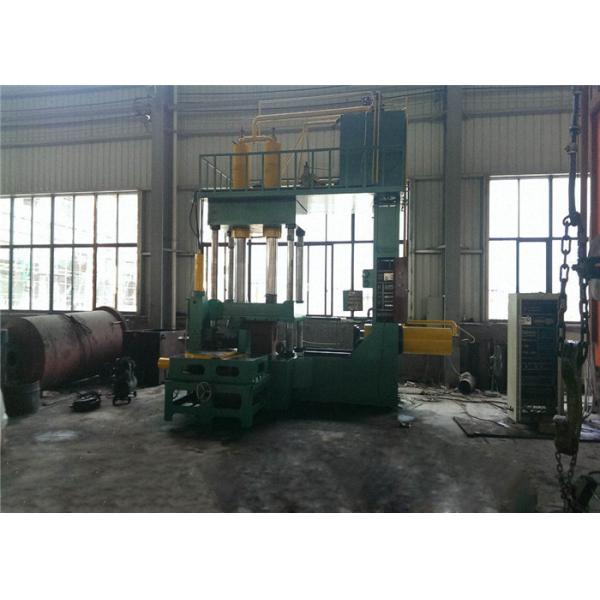

Automatic Pipe Elbow Bending Machine , Cold Push Elbow Machine Easy To Use

Automatic cold pipe bending elbow machine for construction made in China


1. Product Presentation


Introduction to the classification of cold push elbow press:

1. Carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon-tarry, PVC, PPR, RFPP(reinforced polypropylene), etc.
2. It can be divided into pushing, pressing, forging, casting, etc.
3. The manufacturing standard can be divided into national standard, electrical standard, ship standard, chemical standard,water standard, American standard, German standard, Japanese standard, Russian standard, etc.
4. According to its radius of curvature, it can be divided into long radius elbow and short radius elbow.A long radius elbow is the outer diameter of a tube whose radius of curvature is equal to 1.5 times, i.e. R= 1.5d.The short radius elbow means that its radius of curvature is equal to the outside diameter of the pipe, i.e. R= 1.0d.(D is the diameter of the elbow and R is the radius of curvature).
5. According to the pressure level, there are about 17 kinds of pipes, which are the same as the American pipe standards,such as: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS;Sch80, SCH100, Sch120, Sch140, Sch160,XXS;Among them, STD and XS are more commonly used.
6. According to different shapes, it can be divided into: groove bend, card sleeve bend, double bearing bend, flange bend,reducing bend, stay seat bend, internal and external tooth bend, stamping bend, push bend, socket and socket bend, butt welding bend, internal wire bend, etc.


2. Product Parameter


ModelSize Range (mm)Clamping Force (KN)Pushing Force (KN)Rated working pressure (MPa)Total power of motor (KW)Total Weight (kg)
HYLW-100Φ25-Φ76100063025116300
HYLW-200Φ34-Φ114200012502518.59000
HYLW-400AΦ133-Φ273400025002529.538000
HYLW-400BΦ108-Φ219400025002529.535000
HYLW-630Φ133-Φ32563003150253648000
HYLW-800Φ219-Φ37780004500254276000
HYLW-1000Φ273-Φ426100005000256598000
HYLW-1600Φ325-Φ5301600080002588.5130000
HYLW-2000Φ406-Φ630230001200025110200000
