| Categories | Top Hammer Drill Bits |
|---|---|
| Brand Name: | MIROC |
| Model Number: | T45-102mm |
| Certification: | ISO9001 |
| Place of Origin: | China (Mainland) |
| MOQ: | 10 Pieces |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Pieces per Year |
| Delivery Time: | 5-15 Working Days |
| Packaging Details: | Carton Box or Wooden Box |
| Product Name: | R28 Thread Button Bit |
| Machine Type: | Hydraulic & penumatic Drill |
| Use: | Ore Mining,Tunneling,Quarrying,Construction |
| Bit Diameter: | 38mm 48mm 64mm 76mm |
| Button Type: | Sphercial / Ballistic |
| Face Design: | Flat Face / Drop Center |
| Color: | Green, customized |
| Advantage: | High Performance, High Wear Resistant, |

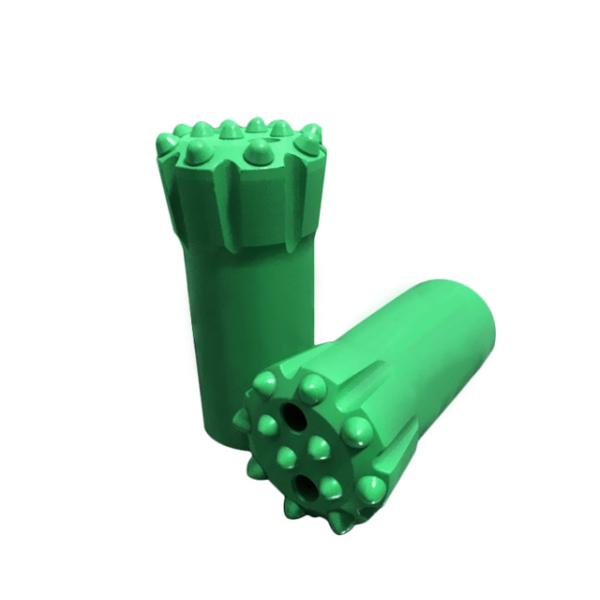

Rock Drilling With High Grade YK05 Tungsten Carbide R28 Thread Button Bits
Describtion
R28 Button Bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
1. High wear resistance
2. Tungsten carbide
3. Medium-hard to hard abrasive rock
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R25 Button Bit Short Skirt Spherical Buttons
Specifications
| THREADED ROCK DRILLING TOOLS - R28 Drill Bit | ||||||||
| Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | kg | |
| R28 Button Bit | ||||||||
| Spherical | ||||||||
| 37 | 1 4/9 | 2×7 | 5×9 | 30° | 1 | 1 | 0.5 | 4148300436 |
| 38 | 1 1/2 | 2×8 | 4×9 | 30° | 1 | 2 | 0.6 | 4148300437 |
| 38 | 1 1/2 | 2×7 | 5×9 | 30° | 1 | 1 | 0.6 | 4148300438 |
| 41 | 1 5/8 | 2×8 | 5×9 | 35° | 1 | 1 | 0.7 | 4148300439 |
| 43 | 1 5/7 | 2×9 | 5×9 | 35° | 1 | 2 | 0.8 | 4148300440 |
| 45 | 1 7/9 | 2×9 | 5×10 | 30° | 1 | 2 | 0.9 | 4148300441 |
| 45 | 1 7/9 | 3×8 | 6×9 | 35° | 1 | 3 | 0.9 | 4148300442 |
| Ballistic | ||||||||
| 37 | 1 4/9 | 2×7 | 5×9 | 30° | 1 | 1 | 0.5 | 4148300443 |
| 38 | 1 1/2 | 2×8 | 4×9 | 30° | 1 | 2 | 0.6 | 4148300444 |
| 38 | 1 1/2 | 2×7 | 5×9 | 30° | 1 | 1 | 0.6 | 4148300445 |
| 41 | 1 5/8 | 2×8 | 5×9 | 35° | 1 | 1 | 0.7 | 4148300446 |
| 43 | 1 5/7 | 2×9 | 5×9 | 35° | 1 | 2 | 0.8 | 4148300447 |
| 45 | 1 7/9 | 2×9 | 5×10 | 30° | 1 | 2 | 0.9 | 4148300448 |
| 45 | 1 7/9 | 3×8 | 6×9 | 35° | 1 | 3 | 0.9 | 4148300449 |
| 48 | 1 8/9 | 2×9 | 5×11 | 30° | 1 | 2 | 1.0 | 4148300450 |
| 48 | 1 8/9 | 3×8 | 6×9 | 35° | 1 | 3 | 1.0 | 4148300451 |
| R28 Reaming Bit 6° | ||||||||
| 64 | 2 1/2 | 2×10 | 8×9 | 35° | - | - | 0.8 | 4148300452 |
| 64 | 2 1/2 | 4×8 | 8×9 | 25° | - | - | 0.8 | 4148300453 |
| 76 | 3 | 2×11 | 8×11 | 35° | - | - | 1.2 | 4148300454 |
| 76 | 3 | 4×10 | 8×10 | 30° | - | - | 1.2 | 4148300455 |
| 89 | 3 1/2 | 4×11 | 8×11 | 35° | - | - | 1.7 | 4148300456 |
| 89 | 3 1/2 | 4×10 | 8×10 | 30° | - | - | 1.7 | 4148300457 |
| R28 Pilot Adapter 6° | ||||||||
| 26 | 3 1/2 | 12×8 | - | - | - | 1.5 | 4148300458 | |
| R28 Cross type bit | ||||||||
| 38 | 1 1/2 | 14×8 | - | 1 | 2 | 0.6 | 4148300459 | |
| 41 | 1 5/8 | 14×8 | - | 1 | 4 | 0.7 | 4148300460 | |
| 43 | 1 5/7 | 14×8 | - | 1 | 4 | 0.7 | 4148300461 | |
| 45 | 1 7/9 | 14×8 | - | 1 | 4 | 0.9 | 4148300462 | |
| 51 | 2 | 14×8 | - | 1 | 4 | 1.1 | 4148300463 | |
What is the advantage of our Button Bit ?
1. Material: 100% virgin raw material with submicron grain size;
2. Grade: Various grades for choice;
3. Advanced production equipments and testing equipments
4. Precision Ground and polished;
5. High wear resistance,high hardness and impact toughness;
6. Samples & small orders are acceptable.
What is the Bit Shape Selection of our Button Bit?
Bit Face Shape | Application |
Drop Center Bit | For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control. |
Concave Face | The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity. |
Convex Face | For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control. |
Double Gauge Face | This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit. |
Flat Face Bit | This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash. |
More Products:
Application:
Our Services
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
Hazardous environment
Acts, regulations, and other government guidelines that has to be followed
Significant differences in the way people work, mostly due to physical constraints
Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver
