High Speed 2nd Hand Corrugated Box Making Machine For Carton Industry

Categories Used Corrugated Box Making Machine
Model Number: 1800mm 2200mm 2000mm
Certification: CE,CE (in the application),ISO
Place of Origin: China
MOQ: 1
Price: 10000usd
Payment Terms: T/T, D/P, L/C
Supply Ability: 100
Delivery Time: 10-20 days
Packaging Details: as per need
Voltage: 220V/380V,220v
Type: Packaging Line
After-sales service provided: Engineers available to service machinery overseas
Condition: used
Weight: 7000kg,1200kg,2500KG
Packaging type: Cartons
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

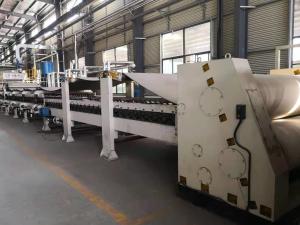

High Speed 2nd Hand Corrugated Box Making Machine For Carton Industry

Usded 5 ply corrugated cardboard making machine

second hand 5 ply corrugated carton macking line


No.
Name
Qty.
Feature
1
Hydraulic Mill Roll Stand
( with trolly and track)
5
Main shaft diameter is 242mm,doublecurve heavy rocker arm, tooth clip,mulitpoint brake,hydraulic lift,left and right translation.
Guide rail length is 6000 mm, the car uses 10 mm plate welding
2
Pre-heater
4
The roller ¢600 mm, including the pressure vessel certificate; electric adjustment angle; angle can be adjusted within the range
of 360 °
3
Single Facer
2
Corrugated diameter is 320mm, 48CrMo high quality alloy steel; Adopt independent gearbox, universal joint drive structure; Airbag
ballast stmructure, PLC automatic control glue; Steam heating
4
Triplex Pre-heater
1
The roller ¢900 mm, including the pressure vessel certificate; electric adjustment angle; angle can be adjusted within the range
of 360 °
5
Conveying Bridge
1
Main girer is 200mm box iron,independent frequency conversion motor drive paper transport, adsorption tension. Electric
correction.
6
Double Gluer Machine
1
Glue roller dia. is 269mm,carved 25 line pit type checker;independent variable frequency motor drive, glue clearance controlled by
PLC and man-machine interface; Glue quantity of digital display.
7
Double Facer
1
Hot plate 600 mm * 18pcs; press rollers lift by pneumatic,compressed press rollers structure
8
Thin Blade machine
1
Zero pressure line Slitter Scorer
9
Cut-Off
1
Full AC servo control, braking is energy storage type, duplex spiral cutter structure, oil-immersed gear transmission, a 10.4
-inch touch screen display
10
GANTY Carton Sheet Stacker
1
Electrical adjust the cardboard size,Transverse output cardboard by pneumatic
11
Internal Steam System
1
Steam system components adopt GB valva; Contains rotary joint, up and down distributor , drain valve,steam trap and pressure
gauge, etc.; Boiler and piping supply by customer
12
Glue Making System
1
Customer-owned pipeline.
