AC380V 24000rpm Auto CNC Router Wood Carving Machine With Servo Motor

Categories Woodworking Engraving Machine
Brand Name: KINDLYTECH
Model Number: R3
Certification: SGS
Place of Origin: Guangzhou
MOQ: 1 set
Price: USD 12000 - 15000 set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 set per month
Delivery Time: 7 work days
Packaging Details: Wooden Box
Product Name: Woodworking Engraving Machine
Positioning Accuracy (mm):: 0.05mm
Range of Spindle Speed(r.p.m):: 4000-24000RPM
No. of Spindles:: single
Spindle Motor Power(kW):: 5.5KW
Voltage: AC380V / 50Hz / 3PH
Weight (KG):: 1500KG
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

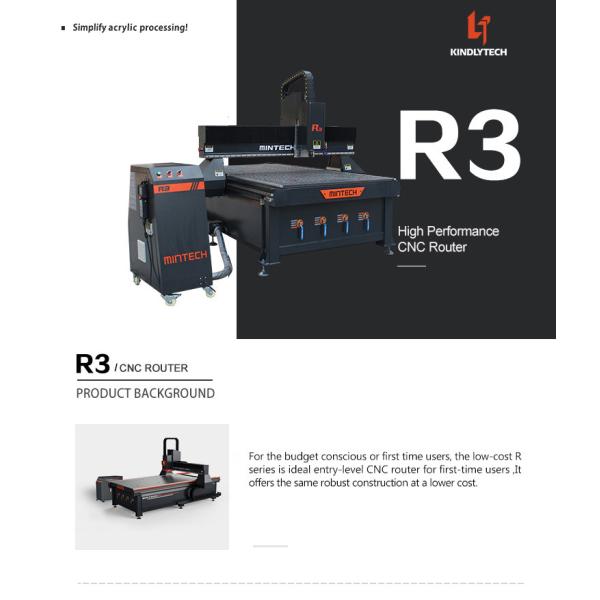

AC380V 24000rpm Auto CNC Router Wood Carving Machine With Servo Motor

Advertising Equipment Servo Motor ATC Cnc Wood Router Machine


Main configuration:


Spindle 4.5KW air cooling
Hybrid servo,
Invt frequency converter,
5.5KW high pressure air pump,
TBI rails,
Screw
Schneider low-voltage electrical appliances;
Optional Delta servo



ModelR3
Working voltageAC380V / 220V /50HZ / 3PH
Working size1300mm * 2500mm * 60mm
The height from beam to working table150mm
Z axis travel160mm
Max working speed10m/mint (Tools required for maximum cutting)
Maximum idle speed15m/min
Repeated positioning accuracy+ / - 0.05mm
Driving mode: X, Y axis adopt bevel gear rack transmission; The Z axis adopts the high precision ball screw drive.


Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.


Guarantee and After-sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.


FAQ:


Q: I knew nothing about this machine, what kindof machine i should choose?
A: Just tell us what you want to do byusing CNC machine, then let us give you perfectsolutions and suggestions.


Q: What technical services can you provide?
A: We will send video and English manual with the machine. And 24-hour professional technicians online training and problem
solving. It provide detailed installation courses.


Q: If some problems happen to this machineduring warranty period, what should I do?
A: We will supply free parts during machine warranty periodif machine have some problems. While we also supplyfree life long
after-sales service. So any doubts, just let usknow, we will give you solutions.
