Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck

Categories Vacuum Suction Truck
Brand Name: CLW
Model Number: CLW5040XLCQ
Certification: ISO, CCC
Place of Origin: Suizhou,China
MOQ: 1 UNIT
Price: 15520 usd/unit~35660 usd/unit
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Delivery Time: 30 working days after received advance payments
Packaging Details: Naked package shipped by bulk ship
Truck brand: Dongfeng,Shacman,Sinotruk howo,CAMC,FAW,ISUZU Truck Mounted Sewage Vacuum Cleaner
Driving model: LHD,RHD Truck Mounted Sewage Vacuum Cleaner
Engine: Diesel engine Truck Mounted Sewage Vacuum Cleaner
Material: Q235 carbon steel Truck Mounted Sewage Vacuum Cleaner
Tanker size: 6cbm 6m3 Truck Mounted Sewage Vacuum Cleaner
Loading capacity: 6tons 5tons Truck Mounted Sewage Vacuum Cleaner
Thickness of tanker: 5mm or 6mm Truck Mounted Sewage Vacuum Cleaner
Vacuum pump: Chinese pump/BP/Jurop/Mono Kaiser Truck Mounted Sewage Vacuum Cleaner
Suction Depth: 7meters Truck Mounted Sewage Vacuum Cleaner
Suction distance: 50~100 meters Truck Mounted Sewage Vacuum Cleaner
Medium: sewer/sludge/septic Truck Mounted Sewage Vacuum Cleaner
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck

ISUZU 6CBM 6000liters 1500 Gallons 5tons Sewer Tanker Truck Mounted Sewage Vacuum Cleaner
Description--ISUZU Truck Mounted Sewage Vacuum Cleaner (also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
ISUZU Truck Mounted Sewage Vacuum Cleaner is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.


Feature
--Vacuum Sewage Suction Truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;--Mobile ISUZU 600P truck chassis;

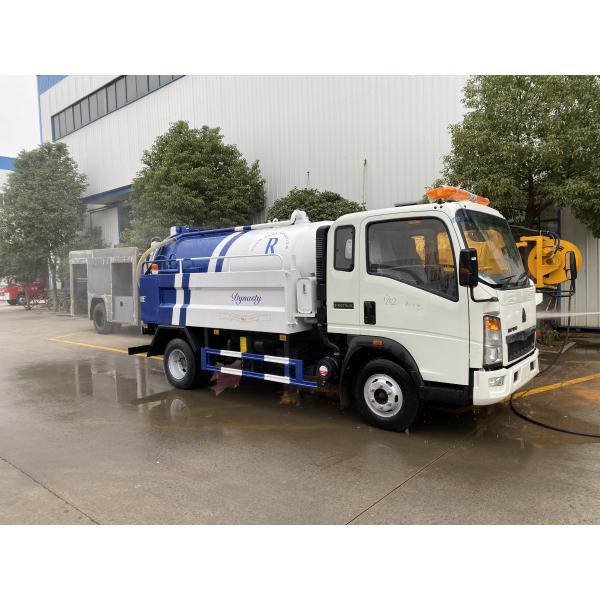

Reference picture


Specification
Chassis parameters
CabinISUZU 700P cabin/Left hand drive/4x2
GVW(kg)10000
Wheelbase(mm)3815 mm
Dimensions(mm)6700*2300*2700mm
Front/Rear Axle loading(kg)4000/7000 kg
Wheel track (front/rear) (mm)1680/1650 mm
Front/Rear overhang(mm)1110/1775 mm
Approach/Departure angle(°)21/15 °
Max. driving speed(km/h)105 km/h
ClutchReinforced diaphragm clutch
Steering GearPower steering, hydraulic steering with power assistance
TireQuantity6 pcs with one spare tire
Specifications7.00R16
Gear boxManual type,ISUZU MSB transmission/ 5 forward & 1 reverse

Engine

BrandISUZU engine
Model4KH1CN5HS
Fuel typeDiesel
Displacement(ml)5193ml
Power(kw)96kw
Horsepower(HP)130 HP
Max. Torque(N.m)510
Emission standardEuro V
Sewage Suction Tanker
Sewage tankCapacity(cbm/liters)5CBM or 6CBM
Tank materialQ235 carbon steel
Thickness(mm)5mm
Working pressure93% Vacuum and above
Sewer Discharging outlet(mm)100~150
Tank is front tipping under function of oil cylinder
Sewage pumpBrandChina famous brand wate ring vacuum pump
ModelSK-12
Max. Suction Speed(m3/min)12
Working Speed(r/min)970
Max vacuum pressure6700pa
Power(KW)18.5kw
Lamp

1-Revolving Warning Light on top(optional,not standard equipment)

2-Upper Arrow Warning light at truck rear(optional,not standard equipment)

6-Signal light at truck rear

Main parts

1. Suction hose 6meters

2. Water-gas separator;

3. Oil-gas separator

4. Four way valve;

5. Drain valve;

6. Sewer-observation valve(glass valve);

7. Anti overflow valve ;

8. Anti overflow warning device

9. Hydraulic control rear cover;

10. Tipping sewage tank body;

11. PTO;

12. Pressure Gauge;

13. Hand washing device.

RemarksThe color and painting is as request

Related product



Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck

Quality Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck for sale
