Q235 50000L 3 Axles Oil Tank Trailer With Two Pipes

Categories Heavy Duty Semi Trailers
Brand Name: sinotruk
Model Number: cimc
Certification: iso ccc
Place of Origin: china
MOQ: 1unit
Payment Terms: L/C, T/T
Supply Ability: 200units.month
Delivery Time: 30days
Packaging Details: nude
Max payload: 60T
Material: Steel
Type: Semi-Trailer,Semi Trailer,Truck trailer
Axle: 3 axles
Color: Customers Optional
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

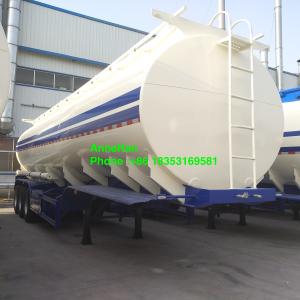

Q235 50000L 3 Axles Oil Tank Trailer With Two Pipes

CIMC Fuel Tanker Semi Trailer 50 - 80 Tons 40-60CBM for carrying or storing oil


Description:


CIMC Fuel Tanker Semi Trailer 50 - 80 Tons 40-60CBM for carrying or storing oil

The fuel tanker semi trailer's spark plug fault has the following two situations: spark ablation, spark plug top scar, damage or melting, ablation showed that the spark plug is damaged, should be replaced. The spark plug sediments, and the top electrode spark plug insulator sometimes sticky with sediment, which will cause the engine cannot work. Such as cleaning the spark plug can be temporarily remedied, but must identify the root cause of failure.


We should pay attention to in the process of moving car driver friend problem:

The working condition of the oil tanker to check the instrument;

The oil tanker in the drive to check the work of the steering system is normal;

The oil tanker in the running of the check hand, foot brake is not normal;

The tank truck chassis in the running of the check engine, the tank body, any abnormal sound and abnormal smell in driving operation;


The following inspection based on parking time good tank car: touch the front and rear wheel brake drum without overheating, check the tire nut, remove inclusions in tire tread, check for leaks, leak check, Water Leakage, spring plate, shaft bolt is loose, check the tank body and the appearance of network system the tank of the car.


Specification:


CIMC Fuel Tanker Semi Trailer 50 - 80 Tons 40-60CBM for carrying or storing oil
Model3 Axles 50000Liters
AxleFUWA brand, 13ton, 3 Sets
Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Tank Body Thickness4mm, 5mm, 6mm optional
MaterialCarbon steel or Mn steel
Gross vehicle weight65000kgs
King pin#90
Support legJOST Standard 28T
SuspensionNormal suspension
Thickness leaf spring10/10/10
Tire/Rim1200R20, 13pcs, 8.5, 12 pcs
Brake ChamberStandard 6 pcs
Spare wheel carrier2 pcs
Tool box1 pcs
Electrical SystemChinese standard 24C lighting system
Side Maker LampLED lamp
PaintingPolyurethane Paint
Overall dimension14100×2500×3780(mm)
ColorWhite, red, green, golden and so on.


Applications:


It’s suitable for storage and carrying all kinds of Oils .


Competitive Advantage:


1) it has higher safety and running efficiency.

2) Optimized structure design, let it have lower self weight, but more stonger

3) excellent appearance of cabin, safety, reliable

4) low fuel consumption

5) the key parts adopt the world's top technology products

6) based on strong technical support and top level technology make the trucks with high

quality and more reliable

7) competitive price, cost-effective

8) quick and efficient spare parts supply bring you more convenient

9) fast delivery time, we can arrange production according to your needs exactly and Quickly

10) professional import and export dealing procedure, make customs clearance more high efficiency
