24 Key LED Strip Controller DC 12~24V Dreamcolor Music LED Strip Controller

24 Key LED Strip Controller DC 12~24V Dreamcolor Music LED Strip Controller

Model NO:JZSWBIL-051AMV

Main Features:

* Support both WiFi control of IOS products, and Android mobile devices;

* This controller is designed for LED strip, module etc.

* After installation and settings, you can use your phone to control the light.

* Switch freely via phone between stand-alone and on-line modes.

* The Remote control distance can reach less than 8m;

* Small-sized, energy-efficient, environmental protection, great convinience and humanized design.

* Apply for DC5~24V 3CH/4CH LED RGB/RGBW Strip, Module, Panel light, Ceilling lamp, Down light etc;

Model	JZSWBIL-051AMV	JZSWBIL-041AMV	JZSWBIL-031(2)AMV
Input Voltage	DC5-24V	DC5-24V	DC5-24V
Output mode	RGB/CW/WW 5 channel	RGB/CW 4 channel	RGB 3 channel
Output current	2A/channel(MAX)	2A/channel(MAX)	2A/channel(MAX)
Output Power	240W(max)	192W(max)	144W(max)
Connect mode	Wi-Fi Blue-tooth	Wi-Fi Blue-tooth	Wi-Fi Blue-tooth
Local music mode	Yes	Yes	yes
IR Remote distance	≤8m	≤8m	≤8m
Led strip support	1	1	1 or 2

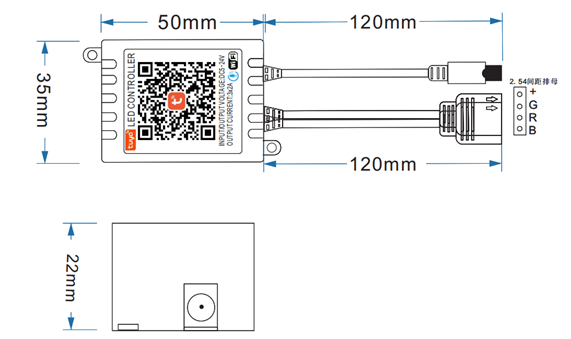

LED Controller Dimension Drawing:
Cable Connection:
