85C 1000Hz Single Axis Inclinometer Analog Level Transmitter LCA310T

LCA310T Single Axis Cheap Inclinometer Analog Level Transmitter

General Description

The LCA310T series inclinometer which developed by Rion Company is a small volume, low-cost single-axis tilt sensor, the output voltage through an internal secondary linearity correction, is a linearity voltage output tilt sensor, mainly for the application market where with high-volume and cost restrictive. Built-in the latest MEMS production technology inclination unit, small size, low power consumption, and high consistency and stability of MEMS technology, working temperature up to the industry level -40 to +85, is a ultra-high cost-effective inclination modules.

This product adopts non-contact measuring principle, can real-time output the current posture inclination, simple to use, no need to find the relative variation of the two surface for mounting.Small size, strong ability of resisting external electromagnet interference,strong ability to withstand shock and vibration. It Is the ideal choice for industrial equipment and platform measuring attitude !

Features:

Single-Axis Inclinometer Full measuring range anyone within 360° optional

Accuracy: refer to the technical data Wide voltage input: 9~36V

Output interface :0~5V Wide temperature working: -40~+85°C

IP67 protection class Highly anti-vibration performance >3500g

Resolution: 0.05° Small Volume : 55×37×24mm(customized)

Application:

Electric blind man chair leveling Cloud deck operating monitor

Satellite antenna positioning Medical equipment leveling

Car Chassis Measurement Four - wheeled positioning system

engineering mechanical measurement of dip angle

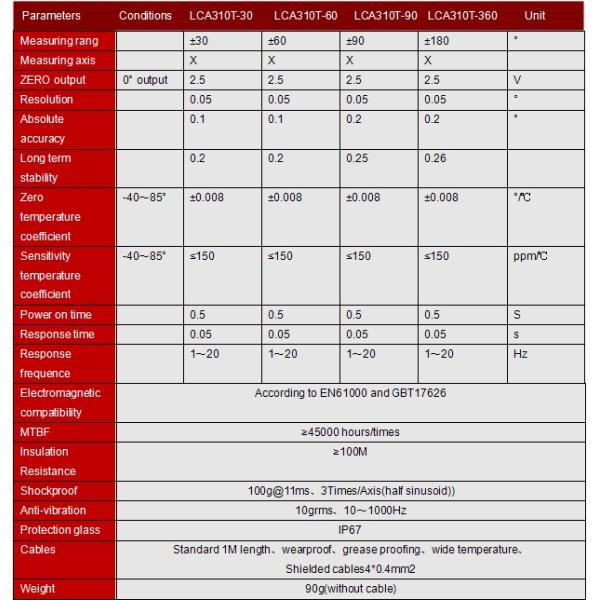

Parameter

* This performance parameter only lists ± 30 °, ± 60 °, ± 90 °, ± 360 ° series as a reference, for other measurement ranges, please refer to the adjacent parameters.

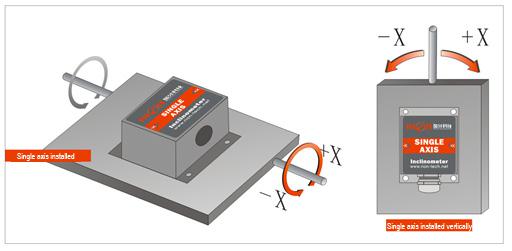

Measuring Directions&Fix

Dimension
