120HP tunneling engineering used Screw Air Compressor made in China

Categories Industrial Screw Air Compressor
Brand Name: China
Model Number: LG90-8G
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: $3000-4000/ set
Payment Terms: L/C, T/T
Supply Ability: 100 sets/ week
Delivery Time: 2-10 days after the payment
Packaging Details: The normal package is wooden box
Voltage: 380v/3ph/50hz(or Customized)
Lubrication style: Oil lubricated
Mute: No
Condition: New
Configuration: Stationary
Warranty: 1.5 years
Working pressure: 0.8 Mpa/ 8bar
Motor power: 90 Kw (120 Hp) screw air compressor
Cooling method: Air Cooling
After-sales service: Online support
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

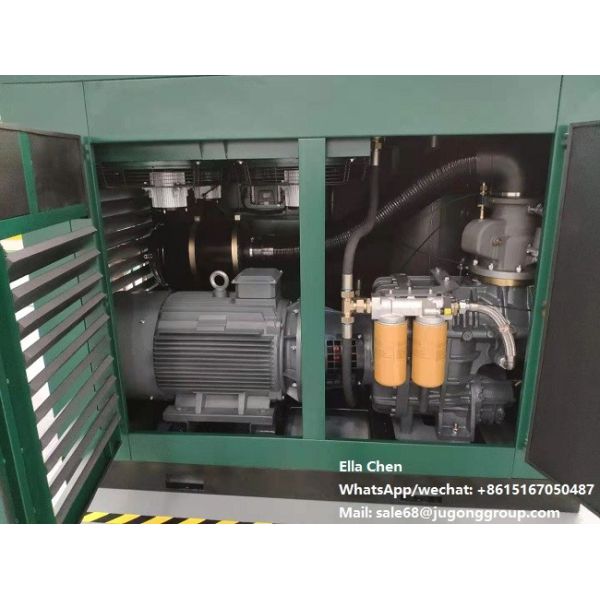

120HP tunneling engineering used Screw Air Compressor made in China

Fully seal and double screw,dual shockproof,smooth operation,can be installed anywhere.

With an elegant appearance and compact structure and over a small area.
Low exhaust temperature (only 7°C~10°C higher than the ambient temperature).
The intelligent control system completely satisfy the continuous cooperation without man work.

1.Remarkable Air end:Germany original-building GHH_RAND air end adopts the third-generator dissymmetrical gear shape.The main rotor is five gears and the vice rotor is six gears.

2.As to differences between them is small,the loss of circumfluence is small which increases the cubage efficiency by close to 20% and save the electric currency by about 25% compared to normal screw air compressor.

3.The rotor is dissymmetrical shape,supported by ball bearing and rod bead bearing and operating at a low speed so it can lower the maintenance cost and provide the air end with a longer service life.

4.Gas Intake valve:Controlled by computer,the stable and dependable air displacement air inlet control valve can make the air displacement and power consumption of the motor change along with the air consumption,so as to save energy and electricity,and reduce the operating cost.

5.Oil and gas separator:Screw shaped design of oil and gas separator is easy to uninstall and change.Separator core can separate the left oil in the process of compressing air.After separating,the left oil will be about 1-2ppm.this will increase the cleanness of the compressed air and lower the pollution to the compressed air and lower the pollution to the compressed air and equipment.

6.Oil filters:High-efficient oil separator can remove the impurity from the lubricant and provide clean lubricant for the pump,rotor and bearing.

7.Motor:Famous brand motor with F class isolation and IP54 protecting class.It uses imported SKF durable bearing and can be operated all day long.

Mode Pressure
MPa
Capacity
m3/min
Power
kW
Dimension
mm
LG-1.2/8 0.8 1.2 7.5 900*700*1040
LG-1.0/10 1.0 1.0
LG-0.8/13 1.3 0.8
LG-1.7/7 0.7 1.7 11 1060*800*1230
LG-1.7/8 0.8 1.7
LG-1.5/10 1.0 1.5
LG-1.2/13 1.3 1.2
LG-2.4/7 0.7 2.4 15 1060*800*1230
LG-2.4/8 0.8 2.4
LG-2.2/10 1.0 2.2
LG-1.7/13 1.3 1.7
LG-3/8G 0.8 3 18.5 1420*850*1110
LG-3/7 0.7 3 1080*880*1415
LG-3/8 0.8 3
LG-2.7/10 1.0 2.7
LG-2.3/13 1.3 2.3
LG-3.6/8G 0.8 3.6 22 1420*850*1110
LG-3.6/7 0.7 3.6 1080*880*1415
LG-3.6/8 0.8 3.6
LG-3.2/10 1.0 3.2
LG-5.2/7 0.7 5.2 30 1300*1100*1650
LG-5/8 0.8 5
LG-4.5/10 1.0 4.5
LG-3.7/13 1.3 3.7
LG-6.5/7G 0.7 6.5 37 1630*910*1220
LG-6.2/8G 0.8 6.2
LG-6.5/7 0.7 6.5 1300*1100*1650
LG-6.2/8 0.8 6.2
LG-5.6/10 1.0 5.6
LG-4.8/13 1.3 4.8
LGB-6.0/8 0.8 6.0
LGB-5.6/10 1.0 5.6
LGB-4.8/13 1.3 4.8
LG-7.4/7G 0.7 7.4 45 1778*1000*1300
LG-7.4/7 0.7 7.4 1300*1100*1650
LG-7.1/8 0.8 7.1
LG-6.5/10 1.0 6.5
LG-5.6/13 1.3 5.6
LG-10.5/7G 0.7 10.5 55 1950*1160*1550
LG-10/8G 0.8 10
LG-7.5/13G 1.3 7.5
LG-8.7/10 1.0 8.7 1620*1230*1670
LG-7.5/13 1.3 7.5
LGB-10/8 0.8 10 1500*1250*1566
LGB-8.5/10 1.0 8.5
LG-13/8G 0.7 13 75 2440*1160*1620
LG-10/10G 1.0 10
LG-12/10G 1.0 12
LG-10/13 1.3 10 1580*1320*1646
LGB-13/8 0.8 13
LGB-12/10 1.0 12
LG-16.5/7G 0.7 16.5 90 2560*1300*1620
LG-16/8G 0.8 16
LG-14/10G 1.0 14
LG-12/13G 1.3 12
LG-20/7G 0.7 20 110 2760*1340*1710
LG-20/8G 0.8 20
LG-16/10G 1.0 16
LG-13/13G 1.3 13
LG-22/8G 0.8 22 132 2760*1340*1710
LG-20/10G 1.0 20
LG-16/13G 1.3 16
LG-28/7G 0.7 28 160 2860*1510*1810
LG-27/8G 0.8 27
LG-23/10G 1.0 23
LG-20/13G 1.3 20
LG-30/8G 0.8 30 185 3400*2100*2100
LG-21/13G 1.3 21 2860*1510*1810
LG-35/8G 0.8 35 200 3400*2100*2100
LG-30/10G 1.0 30
LG-27/13G 1.3 27

More specification please feel free to contact me.

The machine can be used with air dryer and air tank:
