380VAC 5BPM Automatic Powder Packaging Machine , 50Hz Screw Counting Packing Machine

380VAC 5BPM Automatic Powder Packaging Machine , 50Hz Screw Counting Packing Machine

380VAC 5BPM Automatic Powder Packaging Machine , 50Hz Screw Counting Packing Machine
380VAC 5BPM Automatic Powder Packaging Machine , 50Hz Screw Counting Packing Machine
Categories Powder Pouch Packing Machine
Brand Name: Fair Machinery
Model Number: FSJ-240A
Certification: CE, ISO, SGS
Place of Origin: China
MOQ: 1
Payment Terms: T/T, Western Union. L/C
Supply Ability: 100 pcs per month
Delivery Time: 10-20 days
Packaging Details: wooden packaged
Material: 304 or 316 Stainless steel
Automatic Grade: Automatic
Key Selling Points: fully Automatic, Easy to Operate
Application: Food, Machinery & Hardware
Packaging Type: Stand-up Pouch, Bags, Pouch
Packaging Material: plastic
Warranty: 1 year
Function: Filling, Sealing
Core Components: Motor, Pressure vessel, PLC, Gear, Bearing, Engine, Gearbox, Other
Voltage: 380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ
After-sales Service: video technical support, free spare parts, field installation, commmissioning and training, field maintenance and repair service, online support
Contact Now
Company Info.
Fair Machinery Co., Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

380VAC 5BPM Automatic Powder Packaging Machine , 50Hz Screw Counting Packing Machine

Product description:

This screw metering method is used for bag packaging of powder materials and powder materials with a particle size larger than 200 mesh. All materials in contact with the material are made of stainless steel and non-toxic, wear-resistant plastics that meet the requirements of food and pharmaceutical packaging.
It is suitable for packaging powdery materials with low flow or poor fluidity, such as milk powder, glucose, coffee, feed, pesticides, chemical products, etc.
The temperature control system adopts a digital automatic constant temperature system, which is matched with the heat detector line, and the finished product is beautiful and has good sealing performance.
The film feeding system adopts a stepping motor to pull the film, and the contact switch senses to reduce the error of film feeding.

Technical parameters:


ModelFSJ-240A
Bag length50-190 mm
Bag width40-120 mm
Power supply (VAC)380/220V 50/60Hz
Power (KW)2.5Kw
Max width of roll film330
Packing speed5-40 Bag/min
Measuring range10-100,50-500g
Can be customized according to customer requirements
Air consumption0.65mpa
Dimensions (MM)950x850x1600
Net weight (KG)230

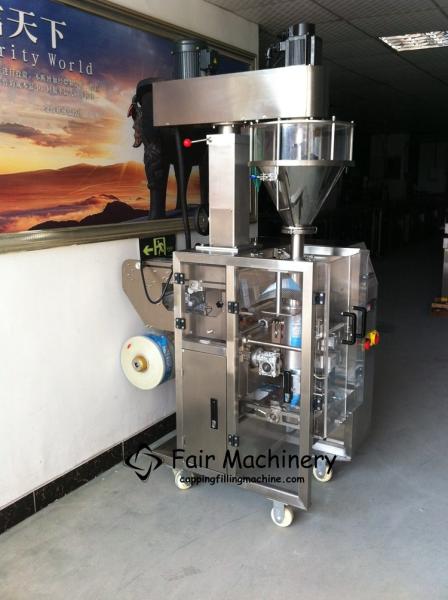

Front view:



Control panel:



Sealing structure:



Date print structure:



Feeding machine:



Bag style:
