APF Drawer Type Active Power Filter Suppression Wall Hanging Type

APF Series Harmonic Suppression Drawer Type Wall Hanging Active Power Filters


Application


Active power filter (APF) adopted modern power electronic technology, is a new power harmonic treatment equipment on basis of hi-speed DSP, digital signal processing technology. It consists of instructive current calculation circuit and compensated current production circuit. The instructive current calculation circuit monitor the current of the line at real time, and convert analog current signal to digital signal, transmitted into DSP, and processed, separate the harmonic waves from basic content, send driving pulse to compensated current production circuit via PWM signal, drive IGBT or IPM power module, produce a compensated current with same amplitude of the harmonic wave, but reverse polarity, to eliminate the harmonic waves in the system.
APF active power filter is an ideal product for the enterprise that need high electric quality or its power system is heavily distorted and need improved, it can be used widely in steel metallurgy, communication field, rail transportation, tobacco, medical field, water treatment system, cement filed, automobile field, program control field, papermaking field, solar energy field, printing field, building field and etc. The product has steady quality, good performance, meanwhile it can save energy, save material, which is a new way to solve the harmonic waves of the current.

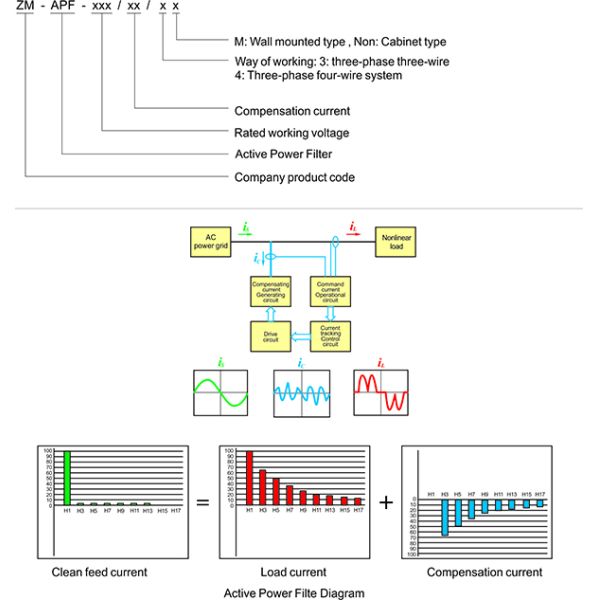

Model and implication



Technical feature


Rated capacity50A75A100A150A200A250A300A500A
Rated voltageAC380V±15%/690V±15%
Electrical wiringThree phases and three lines, three phases and four lines
Rated working frequency50Hz±5%
Filter range2-50 harmonics (selectively filtered, each harmonic compensation can be set separately)
Level of filteringEach harmonic is selected for an amplitude compensation setting
Automatic flow limit output functionWhen the harmonic function current to the load side is greater than the device current, the device limits the output current to the rated value
Overtemperature protectionThe radiator temperature above 65℃ starts the fan automatically
No-voltage protectionThe system voltage below the Un85%, main circuit breaker will lose voltage protection and the device stops working
In line with overflow protectionThe current flowing through the load exceeds the threshold, and the device stops working
Compensation for overflow protectionThe equipment has two protection of software and hardware, software protection point (peak current) can be set by itself, generally can be set as 2 times the rated current (RMS) and hardware protection point is 2.3 times the rated current (RMS). When the compensation current exceeds the protection threshold, the equipment is stopped and reported to the corresponding guarantee
System voltage protectionThe system side voltage underthreshold or overvoltage threshold and the device stops working
DC voltage protectionThe equipment has two protection of software and hardware, software protection point (peak current) can be set by itself, generally can be set to 1.1 times the normal voltage and hardware protection point is 1.3 times the normal voltage. When the DC voltage exceeds the protection threshold, the equipment is stopped and reported to the corresponding guarantee
IGBT protectThe internal temperature of IGBT exceeds 108℃, the unit stops working and reports the IGBT fault
Impact current;Double the IGBT rated current in the power module
Filter energy95%
Filter effectComply with the GB/T 14549-93 assurance requirements
Compensation mode1, Supplementary harmonic, and the harmonic times are optional
2,Reharmonic and reactive, some models are available
Overload capacity120%
Multiple modes of operationMultiple operation
