Industrial Automatic PCD Grinding Machine For Inserts And Cutters

ZT-180 HIGH PRECISION CNC GRINDER MACHINE

PRODUCT APPLICATION

ZT-180 is a high precision PCD & PCBN tools automatic grinder, especially for indexable inserts and milling cutters.

MAIN FEATURES

1, All cast machine bed and cast accessories are average 18 months natural ageing;
2, SCHNEEBERGER heavy duty and precision linear slide guide for its accuracy and life;
3, 5-Axises NC and 2 linked machine, high efficiency, accuracy and stability;
4, Swing mechanism utilizing ball-screw by a servo motor, smoother, more stable durable;
5, The whole pneumatic system use Japan SMC products, and is designed and selected by domestic top pneumatic system engineers to realize rapid advance and retreat and flexible grinding of the worktable.
6, Linear grating and angle encoder of this model is FAGOR, make sure the precision indication;
7, Camera with LCD monitor and precision scale for easy set up and inspection during grinding;
8, Optical system for adjustable from 7-45 magnification even 0.05 radius can be grinded and inspected.

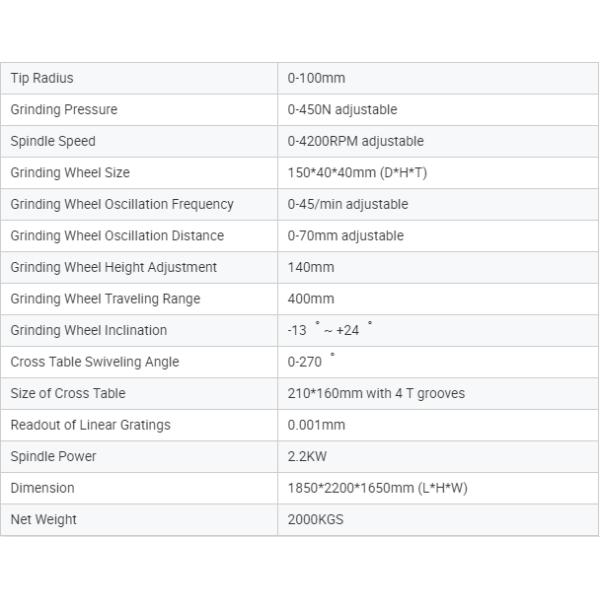

TECHNICAL PARAMETERS

MACHINE PARTS

Name: Grinding Accessories
Brand: FUJITSU
Original: JAPAN

Spindle motor inverter produced by the FUJITSU company of Japan

Name: CCD system
Brand: Fuji
Original: Japan

The camera is Fuji ,together with CCD system ,it can do measurement online

Name: Work table
Brand: CTSTC
Original: China

The work table size is 0-270 degree ,and it can be adjust.

Swivel table angle lock is by a adjustable handle lever.

GRINDING SAMPLES

PACKING:

Bubble film - Carton box - Wooden box

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.

Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.

Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries.

Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands, customers do not need to worry about genuine and delivery problems;

2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.

Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
