3 Channel PCIE Core Gateway Control Module 4G Router Core Backplane

Categories VPN Router Server
Brand Name: ODM/OEM
Model Number: ZT-GR113B
Certification: CE/FCC/RoHS
Place of Origin: China
MOQ: 5
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Delivery Time: 10-15 work days
Packaging Details: Inner packing,20pcs/carton,Inner packing
Connector: 2*SIM Card
Port: 2*RJ45
Port rate: 100Mbps
Power input: 4-18V
System: Openwrt System/JLZT OS
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

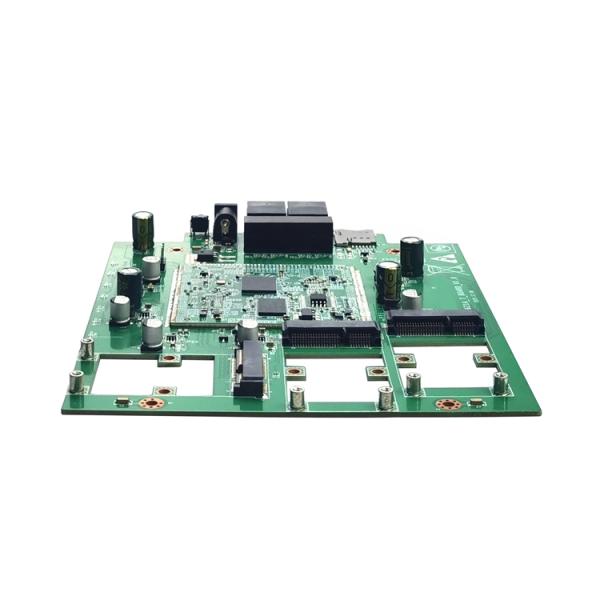

3 Channel PCIE Core Gateway Control Module 4G Router Core Backplane

3 Channel PCIE Core Gateway Control Module 4G Router Core Backplane


3-channel PCIE core gateway control module 4G router core backplane can be inserted into the SIM card


Product Description:

Based on the core unit board, expand multiple GPIO interfaces, open up all GPIOs on the core board, and quickly perform function matching through PCIE modularization;cate the download rate of the client; supports wireless data encryption, which can ensure the safety of data in wireless network transmission .

ZT-GR113B has good signal, high transmission rate and stable performance. It is the best choice for families to realize high-speed wireless Internet access.


Product Features:

  • Provide 1 10/100/1000M Ethernet (WAN) interface, which can be connected to XDSL modem/Cable modem/Ethernet/GPON/EPON/XPON;
  • Provide 1 10/100/1000M Ethernet (LAN) interfaces for connection in the local area network;
  • The networking mode supports static IP, dynamic IP, PPPOE dialing
  • Support WPA/WPA2, WPA-PSK/WPA2-PSK and other encryption and security mechanisms;
  • Adopt Roaming technology to ensure efficient wireless connection;
  • Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
  • Built-in DHCP server, and static address assignment can be performed at the same time;
  • Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
  • Built-in firewall function, supporting domain name filtering and MAC address filtering;
  • Support QoS bandwidth control function, which can effectively allocate the download rate of the client;
  • Support dynamic DNS function, which can provide domain name service for dynamic IP address;
  • Built-in static routing function, can build special network topology according to needs;
  • Supports access control based on MAC address, which can effectively control the access rights of intranet users;
  • Full English configuration interface, equipped with a simple installation wizard (Wizard).
  • Support computer and mobile phone settings, and self-adaptive design of WEB page on mobile terminal;

ModelZT-GR113B
Appearance
Hardware specifications
ChipsetMT7621DA
SPI Flash8Mbyte
SDRam128Mbyte
PortsWAN: 1 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
LAN: 1 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
Reset: 1x RESET Key
PCIE: 1x PCIE2.0
SIM Card:2 x SIM Card
LEDPower,Internet,2.4G,5G,WAN,LAN1,
ColourBlack
Dimensions (L x W x H)150*120*20
Net weight0.75kg
Gross weight0.85kg
Electrical Specifications
Power input voltage12V 1A
Maximum power consumption<12W
Power plug specificationsChoose according to the destination country
Business specifications
Networking methodPPPOE dial-up, static IP, dynamic IP
Operating modeRouter mode,
Port transmission rate10/100/1000M
Network protocol:IEEE 802.3, IEEE 802.3u,
WEB languageEnglsh
Environmental specifications
Working temperature0℃~40℃
Working environment humidity10%~90% RH Non-condensing
Storage temperature-10℃~70℃
Storage environment humidity5%~90% RH Non-condensing
Certified product
3C certificationPassed, not certified;
CE certificationPassed, not certified;
FCC certificationPassed, not certified
RoHS certificationPassed, not certified;
Other certificationsNo;
