| Categories | Automatic Car Washing Machine |
|---|---|
| Place of Origin: | Shanghai, China |
| Brand Name: | AA4C |
| Packaging Details: | wooden boxes |
| Supply Ability: | 100 Set/Sets per Month AA4C automatic tunnel car wash machine |
| Price: | $25,000.00 - $35,000.00/Sets |
| Warranty: | 1 Years |
| Color: | Red |
| Product name: | AA4C automatic tunnel car wash machine |
| Item: | AA-CW9 |
| Applicable models: | Various types of car or van |
| Car wash size: | 11000*4000*3000MM (L*W*H) |
| Machine size: | 3500mm(length)*2200mm(width)*2900mm(height) |
| Mounting dimensions: | 13000*4500*3500MM (L*W*H) |
| Water supply: | DN25mm/Waterflow rate≥80L/min |
| Water wax consumption: | 12ml/Car |
| Type: | car washing machine |
| Port: | Shanghai |
| MOQ: | 5pcs |
| Company Info. |
| Shanghai AA4C Auto Maintenance Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Specification
Model: | AA-CW9 |
Machine Size : | 11000*4000*3000MM (L*W*H) |
Washing Car Size: | 5300*2000*2200MM (L*W*H) |
Wash for | Cars, mini bus, pickup,SUV,MVP |
Washing Speed: | 1-2 minutes/car |
Water Consumption: | 150-200 liter/car |
Power Consumption: | 0.5 kwh/car |
Power Supply: | 380 V, 50 HZ, 3 phases |
Equipment Moving Speed: | 10.5 meter/min |
Install Size: | 12500*4500*3500MM (L*W*H) |
Foundation Size: | 13000*4500*3500MM (L*W*H) |
Brush: | One top brush Four side brushesFour small side brushes |
Contouring dryer | Four blowers, 12KW |
Total Power: | 30KW |
Water supply | DN25mm/Waterflow rate≥80L/min |
Air pressure | 0.75-0.9Mpa/Airflow rate≥0.1m³/min |
Shampoo consumption | 7ml/Car |
Water wax consumption | 12ml/Car |
Electronic Control System:

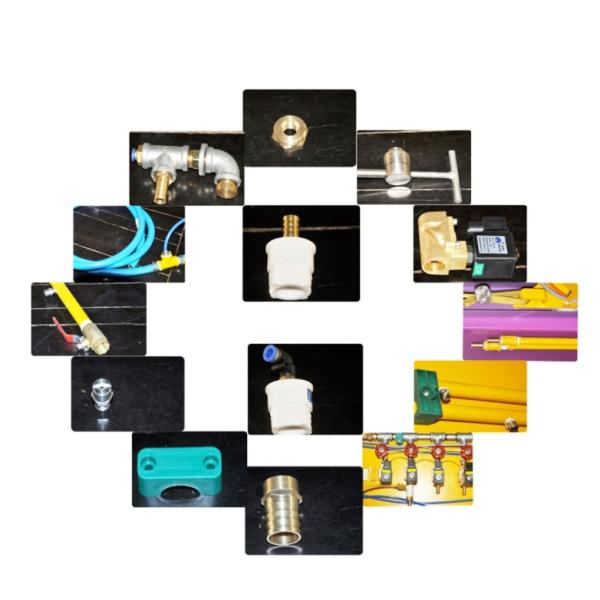

Water Configuration:
Product function:
1.This car washing machine is suitable for the car, jeep, and minibus to high pressure water washing, wax and drying. Can identify the car model with photoelectric sensor controlled by CPU.
2.Introduce advanced technology from Italy, European type stream line design ,not only good look but also with reliable safety.
3. ZAM alloy or hot-dip galvanized frame keep the machine long life use.
4.Chinese foam & super soft brushes, impossible to scratch lacquer, each set could be used for about 100,000 car-times. Inclinable side brush strengthens cleaning ability around the car.
5.The dovetail foam brush makes the car washing more quiet and clean.
6.Main components from world famous manufacturers ,high reliability ,long using life.
7.Fault Self-detect function.
8.Three function(Car wash, Inspection and management)to an operation panel
9.Automatic control and multi-function operation ,such as washing ,drying and wax.
10.Dried by four sets offans and car shape imitating dry system.
11.Long durable time: more than 10 years
|
