| Categories | Hexmetal Refractory Lining |
|---|---|
| Brand Name: | HESLY |
| Model Number: | H-GJ202050310S |
| Certification: | ISO9001：2008 |
| Place of Origin: | HESLY METAL MESH, Anping, China |
| MOQ: | 1 ㎡ |
| Price: | Negotiated according to the order |
| Payment Terms: | T/T, L/C at sight, D/P, Western Union |
| Supply Ability: | 800㎡/day |
| Delivery Time: | according to the order (in stock) |
| Packaging Details: | Pallet |
| Material: | 410S,304,304H,310S, Carbon Steel |
| Technical: | Perforating & Riveting |
| Gauge: | 12#, 14#, 16# etc. |
| Thickness: | 3/4", 1", 2" etc |
| Standard Panel Size: | 36"X120" (914X3050mm) |
| Package: | Steel Pallet |
Hesly's Hex Metal Grating is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of Hex Metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the surface material because they are reflected away from the surface by the metal cellular grid.
 |  |

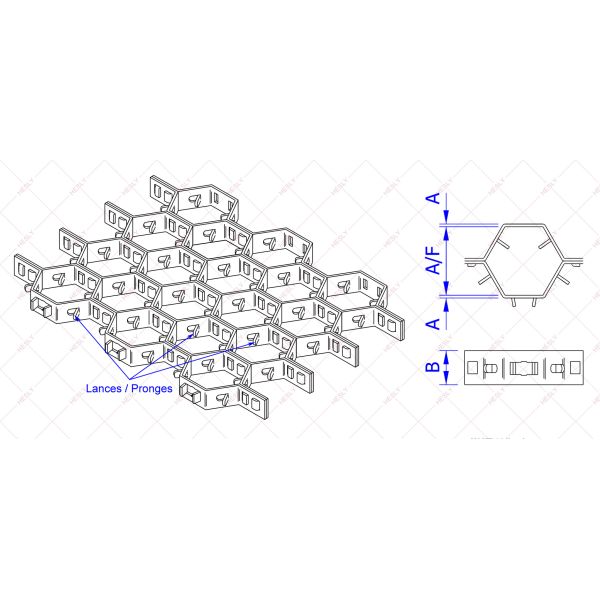

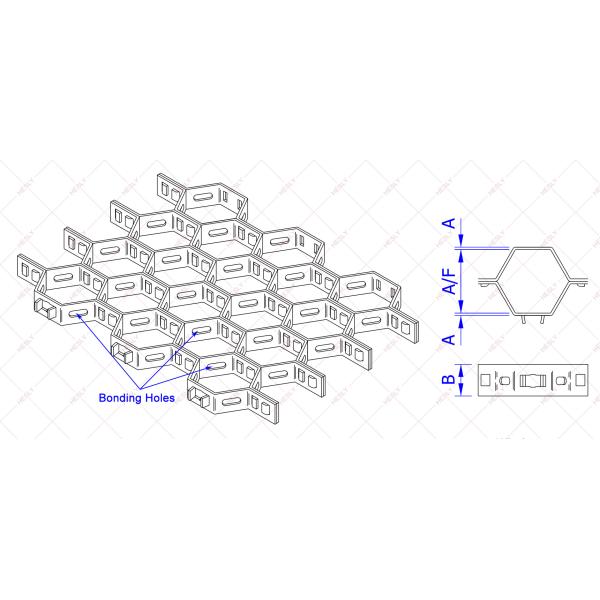

Hexsteel: Bonding Hole Type Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another. | Hex-metal: Prongs/Lances Type this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory. |
 |  |
| HESLY China Hexmetal Factory | HESLY China Hexmesh Factory |
| Anchorage Material | Chemical Composition | Typical Service Temperature | ||||||||
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others | |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ | ||||||||
| ITEM | SPECS | B | A | AF | |
| 1 | 1.2 X 10 X 50mm | 1.2mm | 10mm | 40mm | |
| 2 | 1.2 X 15 X 50mm | 1.2mm | 15mm | 50mm | |
| 3 | 1.2 X 20 X 50mm | 1.2mm | 20mm | 50mm | |
| 4 | 1.5 X 10 X 50mm | 1.5mm | 10mm | 50mm | |
| 5 | 1.5 X 15 X 50mm | 1.5mm | 15mm | 50mm | |
| 6 | 1.5 X 20 X 50mm | 1.5mm | 20mm | 50mm | |
| 7 | 1.8 X 15 X 50mm | 1.8mm | 15mm | 50mm | |
| 8 | 1.8 X 20 X 50mm | 1.8mm | 20mm | 50mm | |
| 9 | 1.8 X 25 X 50mm | 1.8mm | 25mm | 50mm | |
| 10 | 2.0 X 15 X 50mm | 2.0mm | 15mm | 50mm | |
| 11 | 2.0 X 20 X 50mm | 2.0mm | 20mm | 50mm | |
| 12 | 2.0 X 25 X 50mm | 2.0mm | 25mm | 50mm | |
| 13 | 2.0 X 30 X 50mm | 2.0mm | 30mm | 50mm | |
| 14 | 2.0 X 30 X 80mm | 2.0mm | 30mm | 80mm | |
| Remark | A/F | Min: 40mm Max: 100mm | |||
| MATERIAL | A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S | ||||
 |  |
| AISI310 Hex Metal Mesh | 310S Hexmesh China Factory |
 |  |
| Offset HexMesh Factory | HESLY Hexmetal |
 |  |
| Hexsteel Refractory Linings | Hex Steel Mesh China Factory |
Package and Delivery
 |  |
