Hdpe Geocell Gravel Honeycomb Driveway Gravel Stabilizer Grid

Categories HDPE Geocell
Brand Name: Geomax
Model Number: 100-356
Certification: CE
Place of Origin: ANHUI CHINA
MOQ: 1000 ㎡
Price: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Delivery Time: 10-20 days
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Material: HDPE
Type: 100-356
Color: Black
Welding space: 356mm
Thickness: 1.5mm
Height: 100
Surface: Perforated
Standard: ASTM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hdpe Geocell Gravel Honeycomb Driveway Gravel Stabilizer Grid


PRODUCT DESCRIPTION

Hdpe Geocell Gravel Honeycomb Driveway Gravel Stabilizer Grid


Product Introduction


Benefits of geocell

1.Produces a stiff base with high flexural strength; acts like a semi rigid slab by distributing loads laterally.

2.Minimizes impact of differential and overall settlement even on low-strength subgrades

3.Increases effective structural number, reducing fill depth requirement by 50%.

4.May allow use of poor-quality granular fills in place of more costly imported materials.

5.With permeable infill, reduces storm water runoff and effectively performs as an on-site storm water retention/detention “basin” storage, reducing need and costs for storm water ponds.

Specifications


Index PropertiesTest MethodUnitsValues
Material--100% Virgin HDPE
Carbon Black contentASTM D 1603%≥1.5
DensityASTM D 1603g/cm30.935-0.965
Sheet Thickness ± 3%ASTM D 5199mm1.5
Seam Peel StrengthUSACE GL-86-19KN/m≥14.2
Tensile strength at YieldASTM D 1603KN/m≥22
Environmental stress crack resistanceASTM D 1603hrs≥5000
OIT oxidation induction timeASTM D 1603min≥150
TypeGM330GM356GM400GM432GM445GM500GM660GM712
Welding Distance(mm) ± 3%330356400432445500660712
Cell Depth(mm) ± 3%50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%250 x 210260 x 225290 x 260320 x 275315 x 300360 x 300470 x 450510 x 475
Expanded Cell numbers(width×length)10 x 349 x 348 x 348 x 348 x 347 x 345 x 345 x 34
Expanded Section size (width×length) (m) ± 3%2.50 x 7.142.34 x 7.652.32 x 8.842.56 x 9.352.52 x 10.22.52 x 11.222.35 x 15.32.55 x 16.15
Expanded Section Area (m2) ± 5%17.8517.920.523.9425.728.7435.95

Application

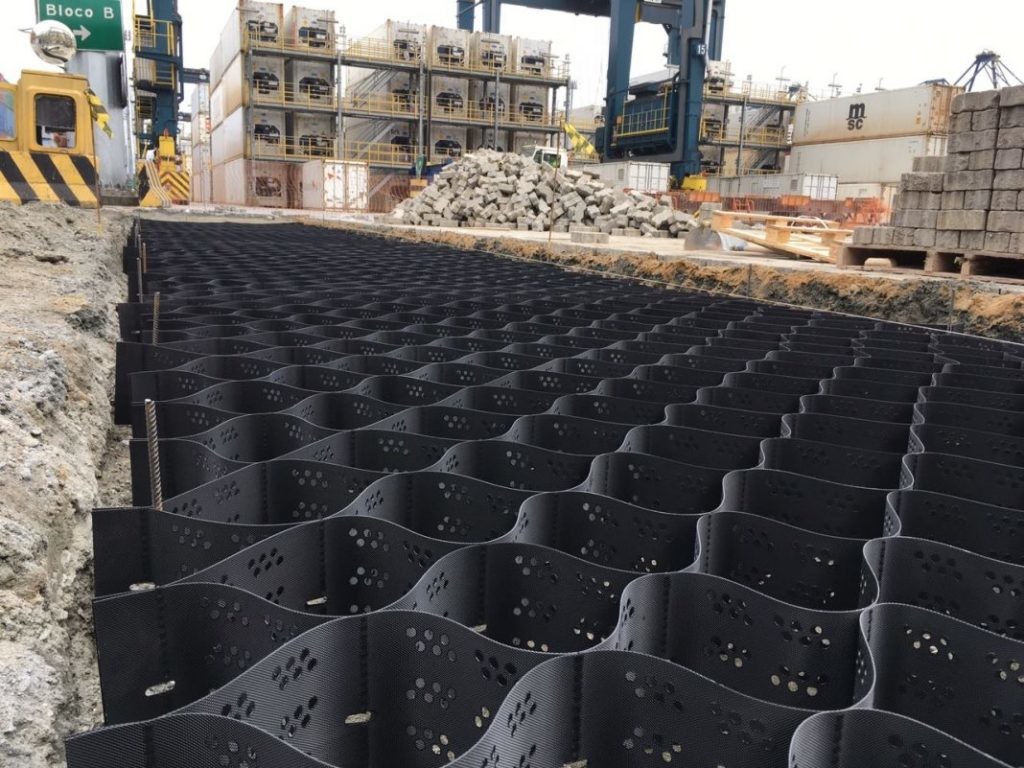

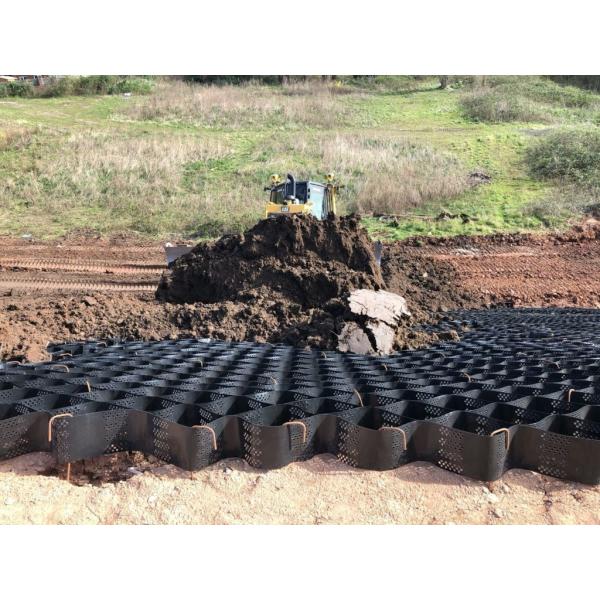

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.


SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.


CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.


RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
