Sawmill Wood saw machine automatic production line twin vertical sawmill band saw

Categories	Vertical Band Sawmill
Brand Name:	SH
Model Number:	SLS350, SLS500
Certification:	ISO9001
Place of Origin:	Shandong Province, China
MOQ:	1 SET
Price:	US $12,000 - 50,000 / Set
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500sets/year
Delivery Time:	within 15 days
Packaging Details:	container loading
Name:	Twin Heads Vertical Sawmill Machine
Type:	Band Saw
Style:	Vertical
Power(W):	2*122KW
Application:	Cut four side of log,produce timber
Saw wheel diameter:	700MM
Max. Sawing Wood Diameter:	500MM
Control:	CNC digital
Feeding Speed:	Variable Frequency Speed Adjustable
Dimension:	1200023003500mm
Voltage:	380V, 50HZ, 3PH or as customer needs
Weight:	1500KG
Warranty:	12 months

Contact Now

Add to Cart

Company Info.

Weifang Jiuyi Information technology co., LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

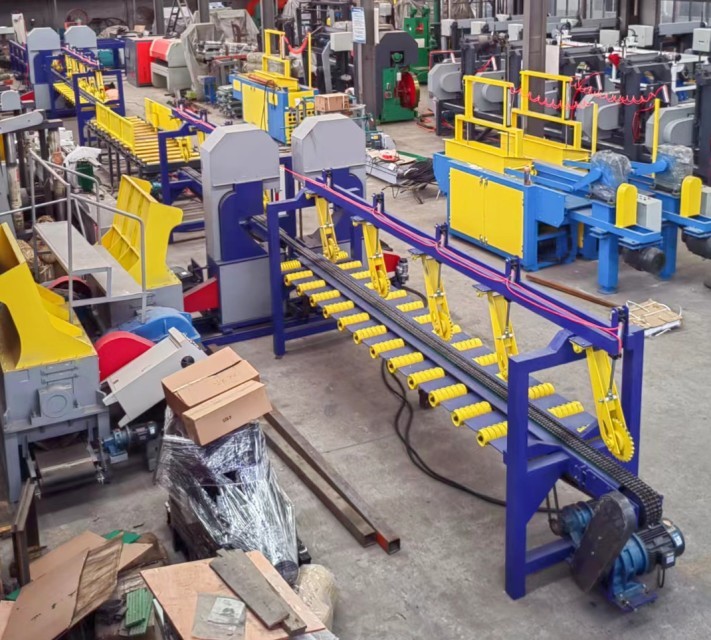

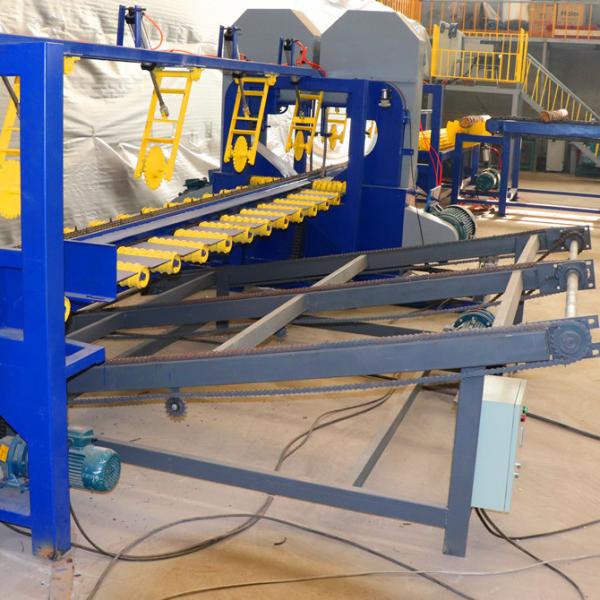

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm	1000 to 3000mm
Feed speed	9-25m/min (inverter)	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Band wheel diameter	700mm	760mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Thickness of saw blade	0.9mm	0.9mm
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks	Touching screen auto setworks

Photos

Optional - slabs slope conveyor

Optional - log loading deck

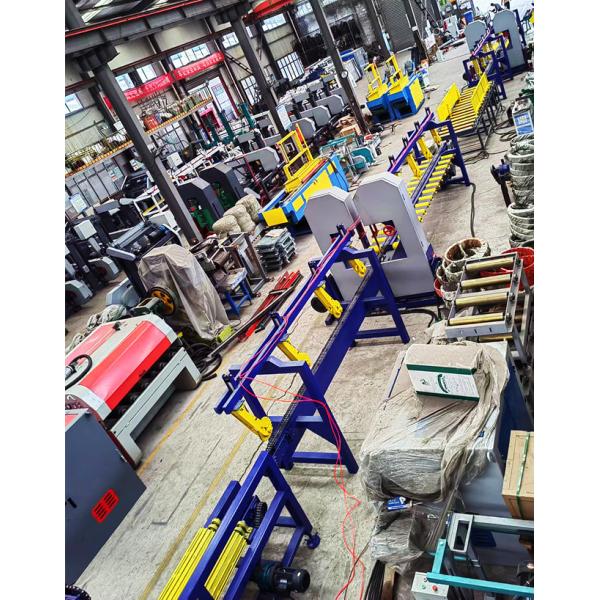

Complete Sawmill Line -design as customer needs

Multi Heads Band Resaw

Technical data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

Detailed Image -6heads reaw equipment

Slabs Cutting Saw

Specifications:

Model Specifications	BPJ200	BPJ250	BPJ300
Cutting width (mm)	200	250	300
Motor power (KW)	7.5kw x 2	7.5kw x 2	7.5kw x 2
Feeding	Frequency variable auto feeding
Circular blade diameter (mm)	300	355	405
Weight (kg)	200	220	250

Multi Blades Rip Saw

Technical data :
