Yanmar Engine Mining Jumbo Machine Hydraulic Rock Bolting Rig DS2

Categories Jumbo Drilling Machine
Brand Name: Beijun
Model Number: DS2
Certification: CE,ISO,TUV
Place of Origin: China
MOQ: 1
Price: USD 145000-200000 Set
Supply Ability: 100 Set/Sets per Month
Delivery Time: 14-30 days
Packaging Details: Customized packaging
L×W×H mm: 9397*1600*2080/2780
Ground clearance mm: 265
Total Weight Kg: 12500
Turning Radius: 2232/5232
Traveling speed Km/h: 9
Engine: Yanmar
Rated power: 56.5KW
battery: 12Ah
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

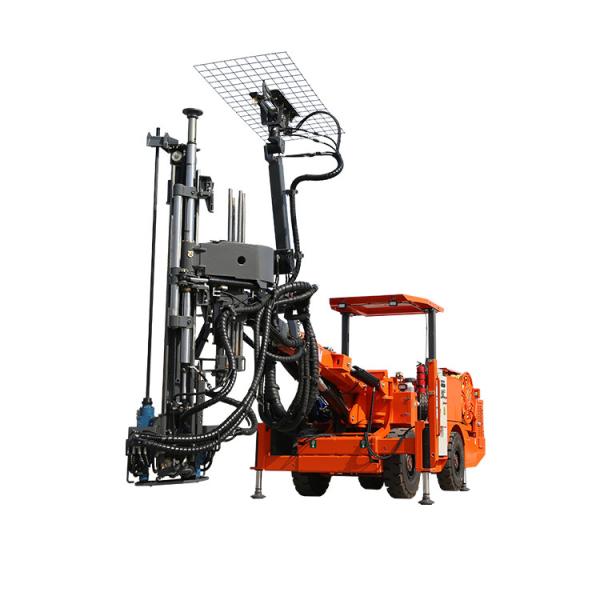

Yanmar Engine Mining Jumbo Machine Hydraulic Rock Bolting Rig DS2

DS2 Hydraulic Rock Bolting Rig (Narrow Type):

The mining hydraulic rock bolting rig has the functions of drilling,bolting and meshing, and is especially suitable for mine bolting support operations.It can be customized for pipe seam bolt resin bolt. combination of pipe seam bolt + resin operation.

Over all dimension
L×W×H mm9397*1600*2080/2780
Ground clearance mm265
Total Weight Kg12500
Turning Radius2232/5232
Traveling speed Km/h9
Rock Drill
ModelWHC25WHC28
Shank AdapterR32R32
Hole Diamter mm32-5132-64
Max Impacting Power Kw810
Impact rate Hz55-6553
Hydraulic pressure bar1516
Rotation motorsSeparate rotation

Separate

rotation

Rotation speed rpm


300300
Maximum Rotation Torque Nm401482
Lub. air consump.L/s55
Weight Kg71103
Noise dB(A)120120

Feeder and Bolting head
ModelBU25BU25FBU25D
Model of rock drill×QtyHC25x2HC25x2HC25x2
Length of bolt180020002200
Type of bolt(optional)

pipe seam bolt, pipe seam bolt + resin operation, resin bolt


Bolting rod bank capacity101010
Length of drilling rod mm217524752700
Hole diameter mm195021852460
propulsion force KN7.57.57.5
Total Length mm287031653395
Remarks:head of rock bolting with other specification can be custom designed.
