Structure BUTTERFLY Pneumatic Stainless Steel Soft Seal Butterfly Valve Customization

Categories Industrial Pipe Valve
Application: General, Industrial Usage, Water Industrial Usage, Household Usage
Port Size: OEM
Warranty: 1years
Place of Origin: Tianjin, China
Model Number: MY-01
Power: Manual
Temperature of Media: High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Brand Name: OEM
Structure: BUTTERFLY
Media: Water
Customized support: OEM, ODM, OBM
Standard: Customized Service
Body material: Ductile Iron
Production Capacity: 1000PCS/Per Day
Material of Seal Surface: Material of Seal Surface
Transport Package: Wooden case
Color: customization
Seal Material: EPDM+PTFE
Product name: wafer butterfly valve
Shape: Customization
Packaging Details: Wooden case
MOQ: 1
Price: $10.00/sets 10-19 sets
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Structure BUTTERFLY Pneumatic Stainless Steel Soft Seal Butterfly Valve Customization

Product Display


Cast Iron Manual Wafer Butterfly Valve

Actuator Mounting Flange OR Handle
The top flange is drilled according to EN ISO 5211 to accommodate direct mounting of various actuators. Handles of different materials and colors can be customized according to your needs.
Valve Disc
Precision machined and hand polished discs provide minimal torque and longer seat life. It can be customized according to the requirements you provide.

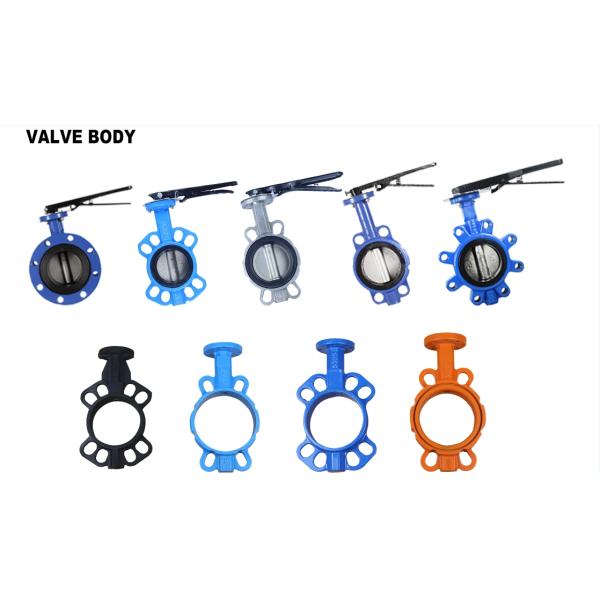

Product features 1. The valve structure is simple, the casting letters are clear, and the surface is smooth. 2. The torque is easy to open and can be used for a long time. 3. The top flange adopts ISO5211 (easy to equip electric/pneumatic/hydraulic actuator). 4. All parts are processed accurately and the quality is better. 5. We adopt better quality rubber valve seat for long service life. 6. Valve body, valve plate, actuator, valve seat can be customized as follows:
Specification
Nominal Diameter (DN)
25(1")~600(24")
25(1")~600(24")
DN (inch)
Nominal Pressure (PN)
10
16
BAR
Test Pressure
Body
15
24
Sealing
11
17.6
Working temperatureºC
-15ºC~+150ºC
Applicable Mediums
Fresh water, sewage, sea water, air, steam, food, drug, various oil, acid, alkali, salt, etc.
No.
Parts
Material
1
Body
Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Bronze, Aluminium Alloy.
2
Seat
NBR, EPDM/ REPDM, PTFE/EPTFE, Viton, Neoprene, Hypalon, Sillicon, PFA.
3
Shaft
SS416, SS304, SS316, Monel
4
Disc
Stainless Steel, Bronze, ( DI/WCB/SS) coated ( Epoxy painting/ Nylon/ EPDM/NBR/PTFE/PFA)
5
Bushing
PTFE, Brone
6
O Ring
NBR, EPDM, FKM
7
Operation
Hand Lever, Gear Box, Electric/ Pneumatic/ Hydraulic Actuator

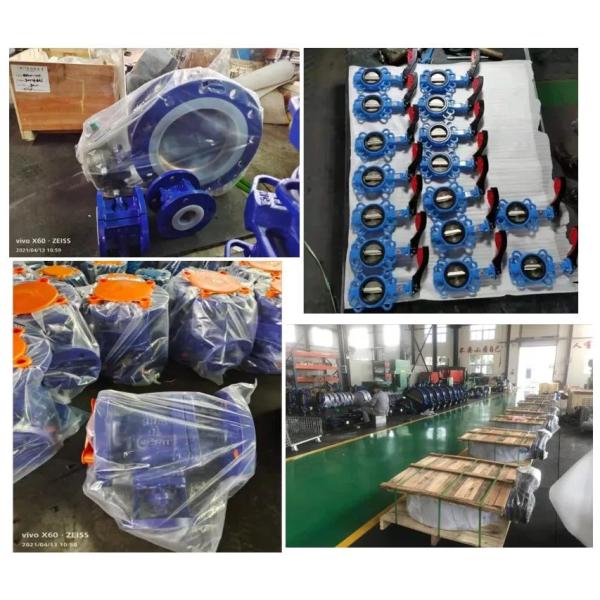

Production Process
Company Profile
Mingyi Intelligent Equipment ( Tianjin) Co., Ltd.
1. Engaged in mechanical product design, R & D and production for more than 20 years, with professional team and rich experience.
2. Main product include various of valves, tank heads, manholes, flanges, storage tanks and other OEM/ ODM customized products that client require.
3. Support customization, factory competitive price and no-worry after sales policy.

FAQ
1. Q: Are you a manufacturer or trading company? A: We are valve manufacturer and factory, not trading company. 2. Q: What is your valves range? A: We can produce butterfly valve, gate valve, check valve, Y-type filter, in line with ISO/ANSI/DIN/JIS/EN/GB standard. 3. Q: Does your factory have inventory? What is your delivery time? A: We stock normal size valves. The delivery time depends on your quantity, usually 15 days.
