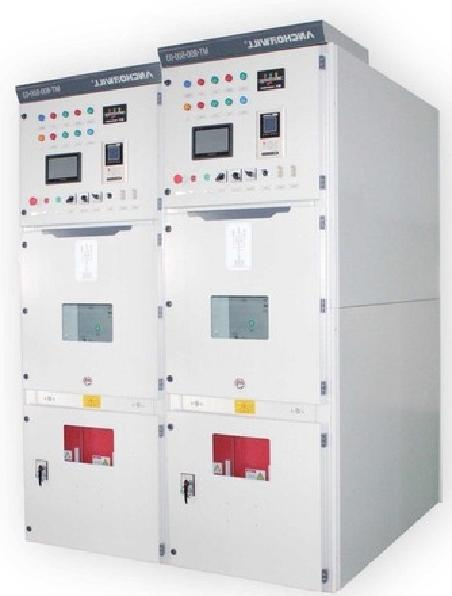

11kv High Voltage Soft Starter For Ac Compressor Motor Cabinet

MT830 high voltage soft starter Integrated high voltage soft start cabinet

Product Overview

MT830 high-voltage solid-state integrated soft starter, on the basis of MT830 soft starter, add a trolley-type vacuum circuit breaker, integration of high-voltage switchgear functions, performance is more integrated.
Based on MT830 soft starter, MT830 adds handcart type vacuum circuit breaker and integrates the functions of high voltage switchgear, which makes the performance more integrated and stable.
Model MT830 is specially designed for the starting and stopping of AC motors as running power.
The MT830 is specially designed for the starting and stopping of AC motor as the running power. It has the features of low starting current, smooth starting, prolonging the service life of motor and starting equipment, and so on.
The MT830 is specially designed for the starting and stopping of AC motors.

Cabinet features

Standard KYN28-12 cabinet is completely metal armored, assembled structure, the cabinet is made of imported high-quality zinc-aluminum-deposited thin steel plate, CNC machining, advanced multiple folding process, rivet nuts, high-strength bolts, with high precision, corrosion resistance, light weight, high strength, strong throughput and other characteristics.
It is characterized by high precision, corrosion resistance, light weight, high strength and high versatility;
In line with GB3906 and IEC298 standards, aluminum-zinc steel plate is made of parts tethered and the thickness of aluminum-zinc dressing of the shell is not less than 2mm, and the panel of the cabinet and the rear sealing plate are made of not less than 2.5mm, and the thickness of aluminum-zinc dressing is not less than 2mm.
The cabinet panel and rear sealing plate are made of cold rolled steel plate of not less than 2.5mm, and epoxy resin powder electrostatic spraying is adopted.
Special instructions:
●The cabinet supports parallel cabinets, and the outlet methods include top inlet and bottom outlet, bottom inlet and bottom outlet, and busbar connection.
Protection grade: IP40, support customization.
Other sizes, support customization.
Default color of cabinet RAL7035, support customization.

Special instructions:
●Cabinet support parallel cabinet, the way out of the top into the bottom, the bottom into the bottom, the busbar connection
Protection grade: IP40, support customization.
● Other sizes, support customization.
●Default color of cabinet RAL7035, support customization.
