Single Inlet Industrial Centrifugal Fan for Building Ventilation Systems

Categories Industrial Centrifugal Fans
Model Number: 4-10
Certification: CE/ISO9001/ISO45001
Mounting: FREE STANDING
Warranty: 1 Year
Brand Name: SIMO BLOWER
Place of Origin: China
MOQ: 1
Price: $500-1000
Packaging Details: 1.export wooden case packing 2.bare package with steel pallet 3.other export package
Delivery Time: 35days(To be negotiated)
Supply Ability: 300 Set/Sets per Month centrifugal fan and axial fan manufacturer
Power source: Three Phase AC Motor
After-sales Service Provided: Field Installation, Commissioning And Training
Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining, Industrial Dust Collector System
Company Type: Manufacturer
Voltage: 380V
bearing: ZWZ, SKF, FAG, NSK,Can Be Specified
Lubrication: Oil bath lubrication
System Type: Single Inlet, Overhang Type
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Single Inlet Industrial Centrifugal Fan for Building Ventilation Systems

Single Inlet Industrial Centrifugal Fan for Building Ventilation Systems
Product Overview

This single inlet industrial centrifugal fan is designed to provide efficient airflow for building ventilation systems. It ensures consistent air distribution, low vibration, and reliable performance for industrial and commercial spaces.

Key Features
  • Single Inlet Design: Optimized for smooth airflow intake and high efficiency
  • Durable Construction: Carbon steel or customizable material options for long service life
  • Low Noise & Vibration: Balanced impeller design ensures stable operation
  • Flexible Applications: Suitable for HVAC systems, workshops, warehouses, and commercial buildings
  • Easy Maintenance: Designed for convenient inspection and cleaning
Technical Specifications

The following data represents only part of our product performance. If you cannot find the specifications you need, please send us your performance requirements for customized design service.

Low Pressure Coupling Driven Large Capacity Building Ventilation Air Blower/Fan
Series no.4-10 seriesFeature selection
PerformanceImpeller diameter400-3000mm
Rotation speed≤4000rpm
Pressure range615-8302Pa
Flow range10696-952530m³/h
StructureBlade typeBackward, Straight, Aerofoil type
Impeller supportSWSI (Single Width, Single Inlet), DWDI (Double Width, Double Inlet), Overhung type
Lubrication methodOil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
Cooling methodAir cooling, Water cooling, Oil cooling (Can be specified)
Driven modeDirect driven, Coupling driven, Belt driven (Can be specified)
Gas compositionGas temperatureNormal | Customer request | Customer request | ≥250ºC | Customer request
Gas characteristicClean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas
System configurationMotor brandChinese famous brand, ABB, WEG etc (Can be specified)
Material OptionsImpellerHigh quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy (Can be specified)
Air inlet coneHigh quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified)
CasingHigh quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified)
Air damperHigh quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified)
Main shaftHigh strength carbon steel, Alloy structural steel (Can be specified)
BearingZWZ, SKF, FAG, NSK (Can be specified)
Bearing housingCast iron
Foundation boltsGB799-1988
Optional PartsSystem base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
Product Gallery
Low Pressure Coupling Driven Large Capacity Building Ventilation Air Blower/Fan Low Pressure Coupling Driven Large Capacity Building Ventilation Air Blower/Fan
Installation & Manufacturing

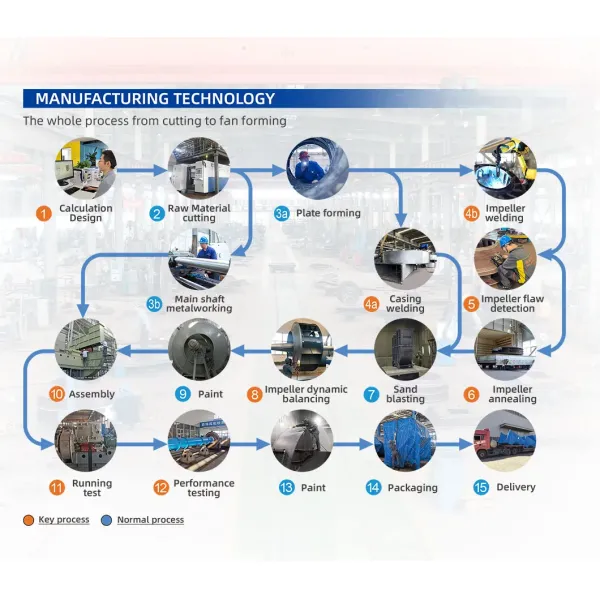

Low Pressure Coupling Driven Large Capacity Building Ventilation Air Blower/Fan Installation Diagram Manufacturing Facility and Quality Control

More than 300 sets of various processing and testing equipment, with an annual production capacity of 10,000 sets. Meet emergency delivery needs and guarantee your engineering timeline. Accurately control every link, ensure the production quality of equipment, and maintain zero error standards.
