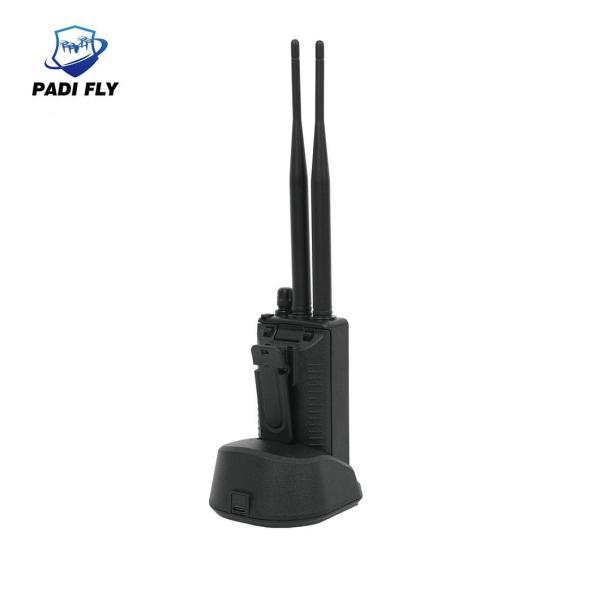

Categories | Handheld Drone Detector |
---|---|
Model NO.: | PDFLY-DDR020 |
Installation Mode: | Handheld |
Certification: | CE |
Application: | Public |
Log Record: | Less Than 500 Alarm Records |
Detection Model: | Spectrum Detection |
Battery Life: | >= 4 Hours (Single Battery) |
Weight of The Host: | 200g |
Power Supply: | Removable Lithium Battery (Type-C Charging) |
Condition: | Sigal Uav Detection System |
Size of The Host: | 100mm*50mm*32mm |
Transport Package: | Suitcase / Carton |
Specification: | 100mm*50mm*32mm |
Trademark: | OEM ODM |
Origin: | Guangdong, China |
Company Info. |
Padi Fly Technology Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |
Operating frequency | 800~1500MHz 2400~2485MHz 5725~5850MHz |
Identification type | OFDM high-definition image transmission signal, DIY fixed-wing, FPV drones |
Detection range | ≥1Km(test results vary depending on model and electromagnetic environment) |
Detection mode | Passive detection |
Power supply | External lithium battery,3.7V |
Operating temperature | -20ºC~+55ºC |
Time display | year/month/day, hour/minute/second display supports the power-off storage time |
Log export | When exporting logs, information such as the drone type, frequency, field intensity, and discovery time is displayed |
Product weight | <200g(Battery included, no antenna included) |
Maximum endurance | ≥4h(Detection mode in standby state) |
Product dimensions | 110mm*56mm*35mm±2mm(No Antenna)L*W*H |
Product Features | ||
1 | High sensitivity, low false alarm rate, compact size, extra-long
standby time, adjustable volume and low-power energy. | |
2 | Suitable for most brands of consumer drones and assembled
traversers. | |
3 | Dynamic power saving feature supports 8 hours of battery life on a
single battery. | |
4 | Flexible charging method, supports universal USB port charging. | |
5 | Support USB/Bluetooth to update firmware. | |
6 | Very low false alarm rate. |
Features: low false alarm rate, accurate detection, ultra-long distance detection, stable performance, ultra-high capacity cell, basic outdoor waterproof.
Each piece is individually packed into a bag and then packed into a carton.
![]() |
