Plastic Twin Single Extrusion PVC Pipe Agriculture Water Gas
Extrusion Line
PVC Plastic Water Supply Pipe Making Machinery adopts high-speed extruder with high efficiency and energy saving.
The extruder features water recycling with metering material
loading device. The single-screw extruder and traction machine
utilize imported AC frequency conversion speed regulating devices,
with vacuum pumps and traction motors made of high-quality
products. Available with chipless cutting, saw blade cutting, or
planetary cutting, the unit delivers reliable performance and high
production efficiency.
Technical Features & Advantages
- Used for producing PVC reinforced pipe, widely applied in
industrial, agricultural, forestry, and construction fields
- Complete system with two single screw extruders, one yarn braid
machine, and auxiliary equipment
- Produces different soft pipes using various dies; PVC Fiber
Reinforced Flexible Pipe (grid/snake skin pipe) conveys medium
pressure or corrosive gas and liquid
- Widely used in mechanical engineering, coal mining, petroleum,
chemical industry, agriculture irrigation, and civil applications
including solar water heaters and gas-canisters
Production Process
- Screw Loader for Mixer
- Mixer unit
- Screw Loader for Extruder
- Conical Twin Screw Extruder

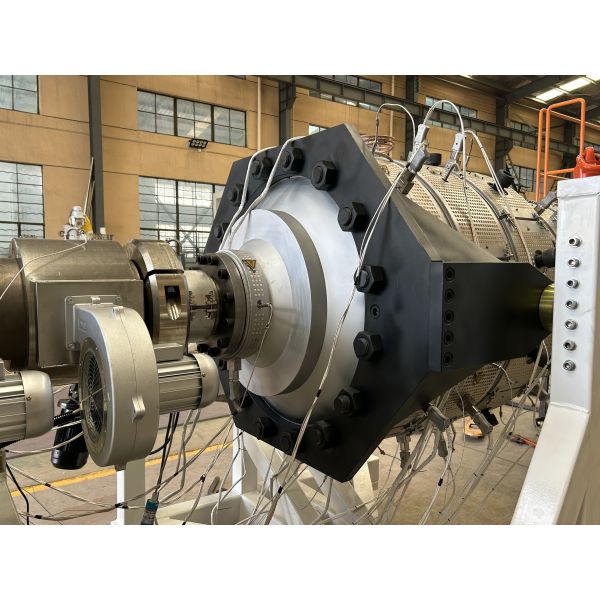

- Mould
- Vacuum Calibration Tank
- Four claws Haul-off
- Planetary Saw Cutter
- Belling machine/Tripping Table
- Final Product Inspecting & Packing
Specifications
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
|---|
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product Details
Raw Material Feeding: PVC resin, stabilizers, plasticizers, and additives are pre-mixed
and fed into the extruder hopper.
Twin Screw Extruder Machine: The twin-screw extruder conveys, compresses, and melts the PVC
mixture under controlled heating zones.
Vacuum Calibration & Cooling: The vacuum calibration tank features two-chamber structure with
vacuum calibration and cooling parts. Both vacuum tank and spraying
cooling tank use stainless 304 steel. The excellent vacuum system
ensures precise sizing for pipes.

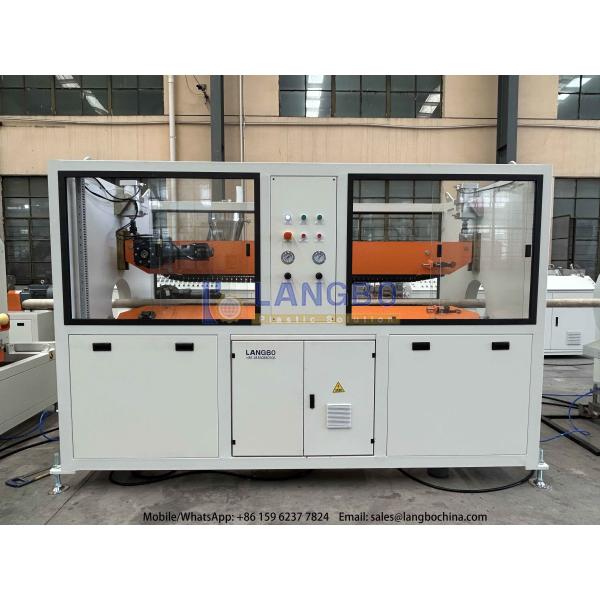

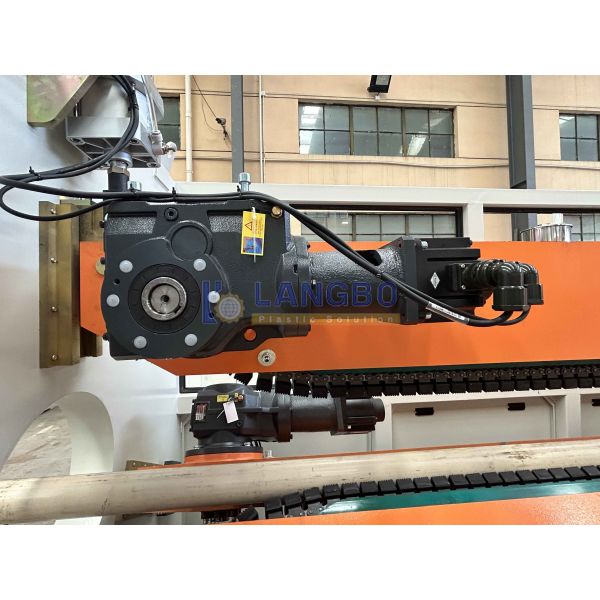

Haul-off Unit: The three crawler track on the haul-off machine ensures stable and
steady pipe running. Haul-off units can be tailored based on
production requirements through general control adjustments.
Cutting Unit: High accuracy encoder ensures precise and stable cutting length.
With PLC control system, manual operation cutting is available for
specific applications.
Technical Features
- High Output Efficiency - Continuous extrusion for mass production
- Precision Control - Advanced PLC system for temperature, speed, and
thickness regulation
- Durable Construction - Corrosion-resistant materials for long
service life
Delivery Information
Delivery: 30 days after order
Warranty: 12 months
Payment: T/T 30% in advance, T/T 70% before delivery
Packing: Standard export wooden case
Our Service
- One year guarantee for whole machine
- 24 hours technical support
- Engineers provide installation & commission service overseas
- After one year, maintenance guidance and spare parts at best price
- Training service to help operators handle the machine effectively
Product Images
Our Factory
Our Exhibition
Our Goods Shipping
