Name: 8 Inputs 8 Outputs HDMI Matrix Switch 4K60 Video Wall Controller with EDID Management for Large Screen Display
Brand: Bitvisus
Price: 1 USD

Home >

8 Inputs 8 Outputs HDMI Matrix Switch 4K60 Video Wall Controller with EDID Management for Large Screen Display

Categories	HDMI Matrix Switcher
Brand Name:	Bitvisus
Place of Origin:	Guangdong, China
MOQ:	1
Price:	Contact us

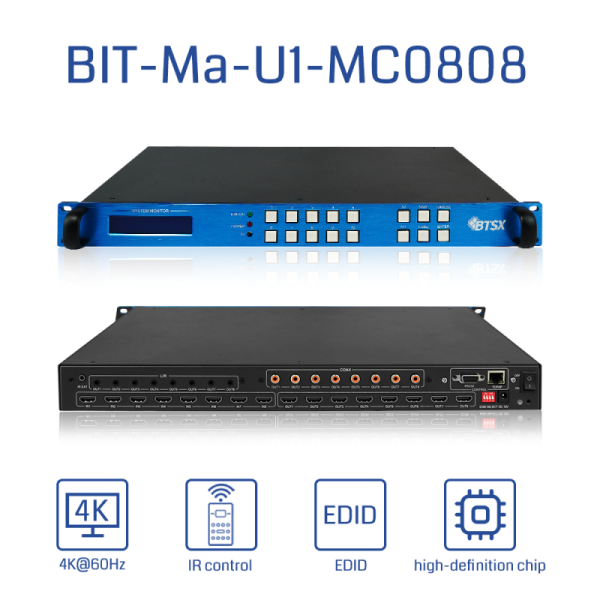

Model Number:	BIT-Ma-U1-MC0808
Certification:	CE,HDMI,HDCP,RoHS,FCC
Payment Terms:	T/T,PayPal
Supply Ability:	1000
Delivery Time:	5-8 days
Packaging Details:	440mm x 200mm x 44.5mm
Material:	Metal
HDMI Version:	HDMI 2.0
HDCP Version:	HDCP 2.2/1.4
Video Bandwidth:	18Gbps
Video Resolution:	4K x 2K@50/60Hz
Color Space:	RGB, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth:	8-bit, 10-bit
Dimensions:	440mm x 200mm x 44.5mm
Weight:	4kg
Power Consumption:	43W
Input Voltage:	AC 100~240V 50/60Hz
Output Voltage:	DC 12V/ 2-3A
Control Interfaces:	RS-232, RJ45
Video Scaling:	4K->1080P
Audio Features:	Audio Follow-On, Audio Separation

Contact Now

Add to Cart

Company Info.

Shenzhen Bitvisus Technology Limited

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

8 Inputs 8 Outputs HDMI Matrix Switch 4K60 Video Wall Controller with EDID Management for Large Screen Display

8x8 HDMI Matrix Switch with Video Wall Controller

Professional 4K60 8x8 HDMI Matrix Switcher with 2x2 and 2x3 Video Wall capabilities for large screen display applications.

Key Features

Ultra HD resolution up to 4Kx2K@60Hz with RGB 4:4:4 color sampling
Advanced matrix switching functionality
Scene save and recall capabilities
Support for Dolby Vision, HDR10+ and HLG
4K to 1080P video scaling on all HDMI output ports
EDID management for optimal compatibility with display devices
Audio Follow-On and Audio Separation features
Multiple control options: front panel buttons, infrared remote, RS-232 and RJ45 host computer

Applications

This modular HDMI Matrix Switcher 8x8 chassis with Video Wall is ideal for conference rooms, radio & television projects, multimedia conference halls, large screen display projects, television teaching, and command control centers.

Technical Specifications

Product Name	4K60 8x8 HDMI Matrix Switcher
Product Features	UHD 4k60, RGB 4:4:4, Matrix switching, EDID function, Scene save/recall, RS232/RJ45 control, push-button, IR remote
HDMI Compatible	HDMI 2.0
HDCP Compatible	HDCP 2.2/1.4
Video Bandwidth	18Gbps
Power Supply	Input: AC 100~240V 50/60Hz Output: DC 12V/ 2-3 A
Resolution / Cable Length	4K@60Hz: 5 meters 4K@30Hz: 10 meters 1080P@60Hz: 15 meters
Power Consumption	43W
Product Size	440mm(L) × 200mm(W) × 44.5mm(H)
Product Weight	4KG
Certification	CE, FCC, ROHS
Support	ODM, OEM
Warranty	1 year
