Full Electric Pallet Stacker with 2 Ton Load Capacity and 3 Meter Lifting Height for Efficient Pallet Handling

Full Electric Dual Lift Stacker 2 Ton Load 3 Meter Height for Safe Pallet Handling

Boost warehouse efficiency with our Full Electric Initial Lift Stacker, designed for smooth and effortless pallet handling. Featuring a 3-meter lifting height and dual load capacity options (1.5T & 2T), this electric stacker ensures reliable performance in logistics, manufacturing, and storage operations.

Key Advantages

Full electric operation - No manual effort required, reducing worker fatigue
3m lifting range - Ideal for medium-to-high stacking tasks
1.5T/2T load capacity - Versatile for various pallet weights
Stable & durable - Robust construction for long-term industrial use
Easy maneuverability - Compact design for narrow aisles

Technical Specifications

Specification	Unit	Value
Power source		Battery
Rated load	kg	1500/2000
Load center	mm	500
Operation way		Standing operation, electric lifting, electric gripper, manual moving
Turning radius	mm	1500
Aisle width	mm	2560/2495
Length	mm	2040
Width	mm	830
Height	mm	2100
Mast		Two-Stage Mast
Max lifting height	mm	3000
Min height of forks	mm	200
Running speed (load/unload)	km/h	4.0/5.0
Hoisting speed (load/unload)	mm/s	0.08/0.135
Descent speed (load/unload)	mm/s	0.105/0.097
Climbing capability	%	5./10.
Braking mode		Electromagnetism
Tyres, material		Polyurethane
Load wheel dimensions	mm	80 × 70, 2pcs
Battery	v/ah	48/32
Weight	kg	620/750

Full Electric Dual Lift Stacker operational view

If you have any questions for this Full Electric Dual Lift Stacker, please contact us. Our team is available 24 hours to assist you.

Full Electric Dual Lift Stacker side view

Full Electric Dual Lift Stacker front view

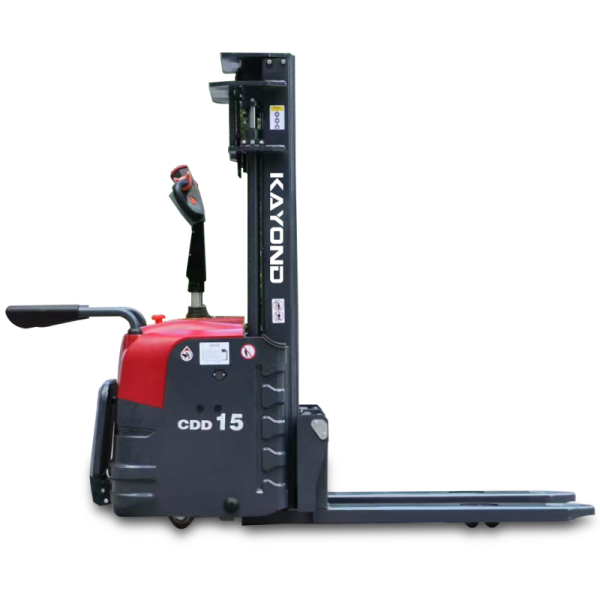

Full Electric Dual Lift Stacker technical diagram

Full Electric Dual Lift Stacker control panel

Full Electric Dual Lift Stacker in warehouse environment

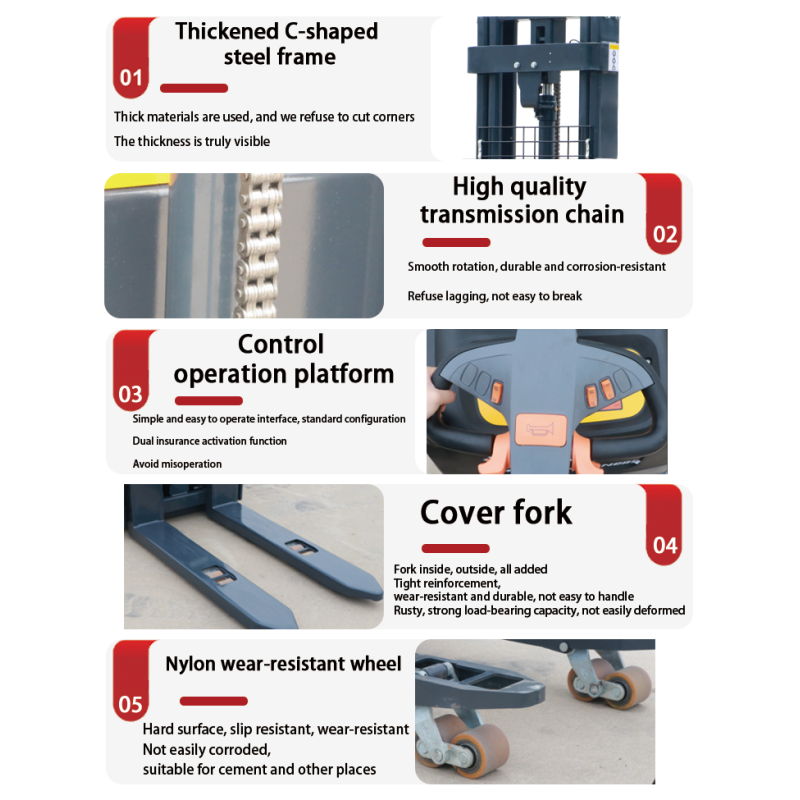

Full Electric Dual Lift Stacker specifications diagram
