Video Data Links VDL With Ethernet Ports For 100km Drones UAV Secure Communications

Video Data Links VDL With Ethernet Ports For 100km Drones UAV Secure Communications
This advanced video data links system employs frequency hopping spread spectrum technology. It can transmit real-time video, telemetry, and control signals between unmanned vehicles (UAVs/UGVs) and ground stations. They utilize radio frequencies (600MHz/ 1.4GHz) to provide secure, low-latency, long-range HD video (up to 100km+), often used in defense, security, and surveillance applications.
Key Features
  • TDD Duplex mode operation
  • Maximum 100Mbps Iperf throughput
  • Supports chained, star, mesh, and hybrid networking
  • FHSS (Frequency Hopping Spread Spectrum) technology
  • Security: data is protected with AES128 encryption
Technical Specifications
Model NumberHCL615
Product NameVideo Data Links VDL With Ethernet Ports For 100km Drones UAV Secure Communications
ModulationTDD OFDM
Frequency566~678MHz, 1420~1530MHz
FHSSSupported
Bandwidths3MHz, 5MHz, 10MHz, 20MHz, 40MHz
ThroughputMaximum 100Mbps
RF Transmission Power5W
ConstellationQPSK, 16QAM, 64QAM self-adaptation
Sensitivity-102dBm (1Mbps)
Ethernet Ports2 * Ethernet ports for IP data transmission
Serial Ports2 channels TTL 3.3V UART (default), RS232 optional
SBUS PortsSBUS-in and SBUS-out ports for SBUS signal transmission
Transmission Range10~100km
ManagementWeb UI and Control UART
EncryptionAES128
Networking ModeCenterless Point to Point, Point to Multipoint, Relay, Mesh networking
Maximum Number of Nodes64 nodes
Movement SpeedSupports ≥240km/h
Power Input12~18V, 28V
Power Consumption<2A@12.8V and <1.2A@12V
Dimensions113.9*83.7*24.5mm
Weight256g
Input/Output Ports

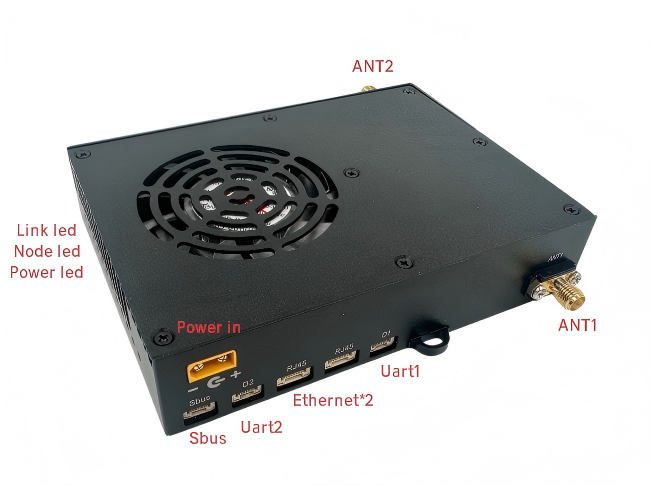

MANET Radio I/O Ports Diagram
Ethernet*22 channel 4Pin GH1.25mm lockable connector, bridged internally with same IP address
UART1TTL3.3V data UART, 3Pin GH1.25mm lockable connector, configurable to RS232 as required
UART2TTL3.3V data UART, 3Pin GH1.25mm lockable connector, configurable to RS232 as required. Can be set as control UART via web UI
SBUS3Pin GH1.25mm lockable connector for SBUS-in and SBUS-out
Power InXT30PW-M connector
ANT 1Tx/Rx Antenna port, SMA female
ANT 2Tx/Rx Antenna port, SMA female
Applications
This video data links is widely used in public security, armed forces, fire protection applications, and they are critical for BVLOS (beyond visual line of sight) drones UAV video data transmission operations.
Frequently Asked Questions
Q1. This video data links supports IP cameras - what if I want to use a camera with HDMI or SDI video output?
The default video input is IP RJ45 Ethernet port. For cameras with HDMI, SDI, AHD, or AV output, our mini encoder device is required to encode the video and audio signals into digital data for transmission. Video encoder device for HDMI/SDI to IP conversion At the receiver end, you can connect directly to computers or NVRs. For HDMI monitor output, our decoder device converts the digital data back to HDMI video and audio signals.
About Hincn Limited
Hincn Limited is a Hong Kong company specializing in HD video wireless communication solutions, founded in 2018. Our research and production center in Shenzhen was established in 2015. With 9 employees including 3 programmers and 2 engineers, we maintain long-term cooperative relationships with ADI, Xilinx, Altera, and Morningcore, serving as third-party design partners for both ADI and Morningcore. Hincn Limited company and facility overview
